Hubbell ATS-01126 ATS-01126 (former catalog number ATS-OP-245-8-6NP-36)
- MPN: ATS-01126
- UPC: 662620436166
- PPN: HBL-ATS-01126
CAD
$1110.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

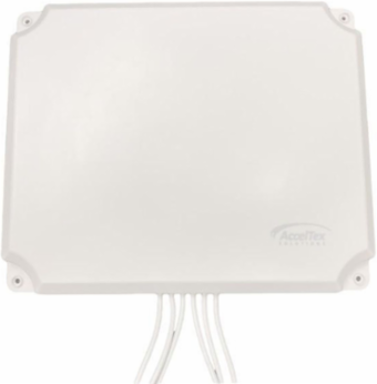

ATS-01126 (former catalog number ATS-OP-245-8-6NP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired. We call this one our "Half Warehouse" antenna.
Features
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes integrated mounting holes for flush wall installation
- Ideal for "Half Warehouse" coverage
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- ATS-195
- Height
- 1.4 in
- Product Type
- Patch Antenna
- Windage
- 134 mph (216 km/h)
- Compatibility
- Arista O-235E;Aruba/HP AP-574;Cisco Catalyst 9124AXE;Mist AP63E
- Impedance
- 50 Ohms
- Operating Temperature
- -40 to 65 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620436166
Antenna Gain8 dBi
Dimensions12.6 in x 10.3 in x 1.4 in
Length12.6 in
Width10.3 in
ApplicationIndoor Wi-Fi, Outdoor Wi-Fi
Frequency Rating2.4-2.5/4.9-5.85 GHz
Installation TypeWall Mount or Articulating Mount
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
BOX SIZE(in)
