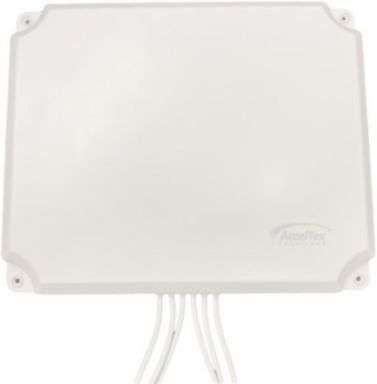

Hubbell ATS-01127 ATS-01127 (former catalog number ATS-OP-245-8-6RPSP-36)
- MPN: ATS-01127
- UPC: 662620436173
- PPN: HBL-ATS-01127
CAD
$1110.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ATS-01127 (former catalog number ATS-OP-245-8-6RPSP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
- Includes integrated mounting holes for flush wall installation
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- ATS-195
- Height
- 1.4 in
- Product Type
- Patch Antenna
- Width
- 10.3 in
- Compatibility
- Arista C-230E;Aruba/HP AP-518;Mist AP43e
- Impedance
- 50 Ohms
- Operating Temperature
- -40 to 70 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Technology
- 802.11ac, 802.11ax, 802.11n
- BOX SIZE
- (in)
Antenna Gain8 dBi
Dimensions12.6 in x 10.3 in x 1.4 in
Length12.6 in
Voltage Ratio≤1.5
ApplicationIndoor Wi-Fi, Outdoor Wi-Fi
Frequency Rating2.4-2.5/5.1-5.85 GHz
Installation TypeFlush Mount to Wall or Articulating Mount (included)
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00662620436173
