Hubbell ATS-01128 ATS-01128 (former catalog number ATS-OP-245-8-6RPTP-36)

MPN: ATS-01128
UPC: 662620436180
PPN: HBL-ATS-01128

$1110.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

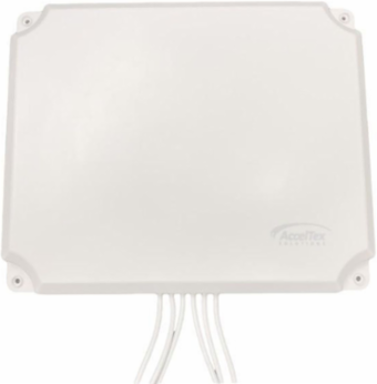

ATS-01128 (former catalog number ATS-OP-245-8-6RPTP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with integrated mounting holes in the corners of the radome and leads exiting the bottom of the antenna for a flush wall mount. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.

Features

Dual band patch antenna optimized for 2.4 and 5 GHz Wi-Fi
Includes integrated mounting holes for flush wall installation

Specifications

Key Specifications

Country of Origin	China
Cable Type	ATS-195
Height	1.4 in
Product Type	Patch Antenna
Width	10.3 in
Connector Type	RPTNC Plug
Impedance	50 Ohms
Operating Temperature	-40 to 70 °C
Freight Class Code	15730000
Image Actual Or Representative	A
Technology	802.11ac, 802.11ax, 802.11n
BOX SIZE	(in)

Antenna Gain	8 dBi
Dimensions	12.6 in x 10.3 in x 1.4 in
Length	12.6 in
Voltage Ratio	≤1.5
Compatibility	Cisco MR46E
Frequency Rating	2.4-2.5/5.1-5.85 GHz
Installation Type	Flush Mount to Wall or Articulating Mount (included)
Class Code	A62
Harmonization Code	8517710000
Sub Class Code	A62A620
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00662620436180
