Hubbell ATS-02753 ATS-02753 (former catalog number ATS-OHDP-245-42-6RPTP-36)
- MPN: ATS-02753
- UPC: 662620438344
- PPN: HBL-ATS-02753
CAD
$864.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

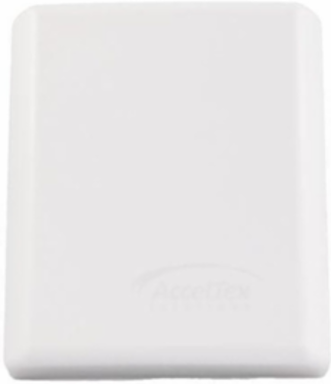

ATS-02753 (former catalog number ATS-OHDP-245-42-6RPTP-36). AccelTex Solutions 90x90 dual band indoor/outdoor directional patch antenna is a perfect complement to any enterprise-class AP to achieve desired coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall, ceiling or enclosure door and also ships with a wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications.
Features
- Optimized for dual-band Wi-Fi operation on 2.4 and 5 GHz
- Features a 90x90 directional patch design with wall/pole mount kit
- Ideal for broad indoor and outdoor applications
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- ATS-195
- Dimensions
- 8.1 in x 7 in x 2 in
- Length
- 8.1 in
- Voltage Ratio
- < 2.0:1
- Windage
- 130 mph (210 km/h)
- Compatibility
- Cisco MR46E
- Impedance
- 50 Ohms
- Isolation Loss
- ˃20dB
- Class Code
- A62
- Harmonization Code
- 8517710000
- Sub Class Code
- A62A620
- Technology
- 802.11ax
- BOX SIZE
- (in)
Antenna Gain4/2 dBi
Diameter - Pole2 in
Height2 in
Product TypePatch Antenna
Width7 in
ApplicationIndoor Wi-Fi, Outdoor Wi-Fi
Frequency Rating2.4-2.5/4.9-5.85 GHz
Installation TypeThreaded Bolt with Nut and Articulating Wall/Pole Mount (included)
Operating Temperature-40 to 65 °C
Freight Class Code15730000
Image Actual Or RepresentativeA
Indoor/OutdoorIndoor or Outdoor
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00662620438344
