Hubbell ATS-02695 ATS-02695 (former catalog number ATS-OHDP-245-4-4RPTP-36)
- MPN: ATS-02695
- UPC: 662620438092
- PPN: HBL-ATS-02695
CAD
$864.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

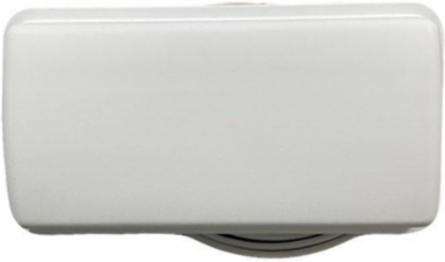

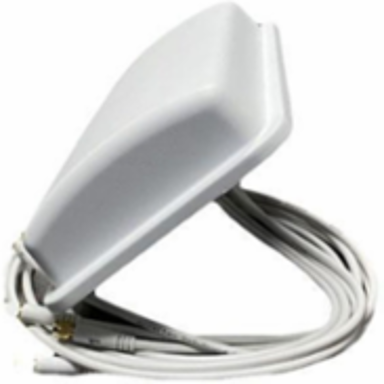

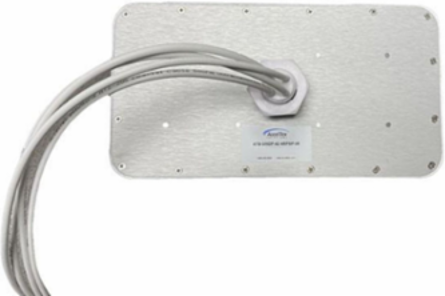

ATS-02695 (former catalog number ATS-OHDP-245-4-4RPTP-36). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Optimized for dual-band Wi-Fi operation on 2.4 and 5 GHz
- Features an integrated flush mount and articulating wall/pole mount kit
- Suitable for a range of directional RF coverage needs
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Cable Type | ATS-195 |
| Height | 2 in |
| Product Type | Patch Antenna |
| Width | 6 in |
| Application | Indoor Wi-Fi, Outdoor Wi-Fi |
| Connector Type | RPTNC Plug |
| Installation Type | Threaded Center Bolt w/ Nut & Articulating Wall/Pole Mount (included) |
| Class Code | A62 |
| Harmonization Code | 8517710000 |
| Sub Class Code | A62A620 |
| Technology | 802.11ac, 802.11ax, 802.11n |
| BOX SIZE | (in) |
| Antenna Gain | 4/4 dBi |
|---|---|
| Dimensions | 11 in x 6 in x 2 in |
| Length | 11 in |
| Voltage Ratio | <2 |
| Windage | 130 mph (209 km/h) |
| Compatibility | Cisco Catalyst 9115e;Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP |
| Frequency Rating | 2.4-2.5/4.9-5.85 GHz |
| Operating Temperature | -40 to 65 °C |
| Freight Class Code | 15730000 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor or Outdoor |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620438092 |
