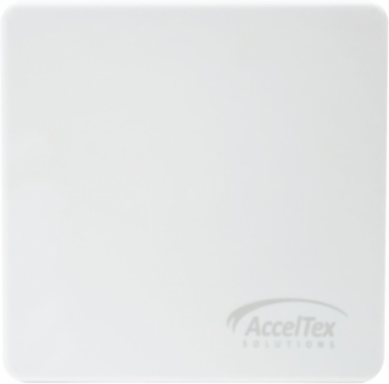

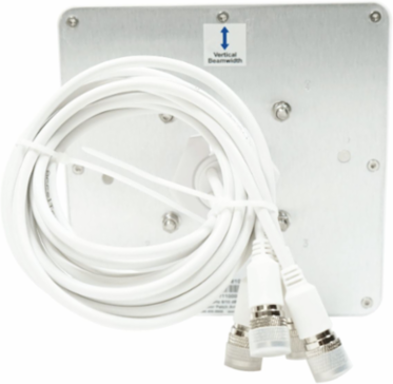

Hubbell ATS-03020 ATS-03020 (former catalog number ATS-OP-245-810-4RPTP-36-V2)
- MPN: ATS-03020
- UPC: 662620439228
- PPN: HBL-ATS-03020
CAD
$644.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
ATS-03020 (former catalog number ATS-OP-245-810-4RPTP-36-V2). The AccelTex Solutions dual band indoor/outdoor patch antenna is a perfect complement to any enterprise-class AP to achieve directional coverage in your indoor or outdoor space. Each antenna element is optimized for Wi-Fi operation on both 2.4 and 5 GHz. This antenna comes with our integrated flush mount for surface mounting through a thin wall or enclosure door and also ships with our articulating wall and pole mount kit. This highly versatile antenna is suitable for a broad range of indoor and outdoor applications where focused RF coverage of an area is desired.
Features
- Optimized for dual-band Wi-Fi operation on 2.4 and 5 GHz
- Includes integrated flush mount and articulating wall/pole mount kit
- Provides directional RF coverage for a broad range of applications
Specifications
Key Specifications
- Country of Origin
- China
- Cable Type
- ATS-195
- Dimensions
- 6.3 in x 6.3 in x 2 in
- Length
- 6.3 in
- Protection Type
- DC Grounded
- Width
- 6.3 in
- Application
- 8517.71.0000
- Frequency Rating
- 2.4-2.5/4.9-5.85 GHz
- Installation Type
- Threaded Bolt with Nut and Articulating Wall/Pole Mount (included)
- Operating Temperature
- -40 to 65 °C
- Freight Class Code
- 15730000
- Image Actual Or Representative
- A
- Indoor/Outdoor
- Indoor or Outdoor
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00662620439228
Antenna Gain8/10 dBi
Diameter - Pole2 in
Height2 in
Product TypePatch Antenna
Voltage Ratio< 2.0:1
Windage130 mph (210 km/h)
CompatibilityCisco Catalyst 9115e;Cisco Catalyst 9120AXE;Cisco Catalyst 9120AXP
Impedance50 Ohms
Isolation Loss˃20dB
Class CodeA62
Harmonization Code8517710000
Sub Class CodeA62A620
Technology802.11ac, 802.11ax, 802.11n
