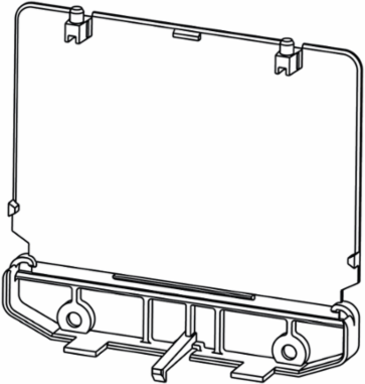

AP 111 BK End Plate, 27.2mm Width, IP20 Protection, Black

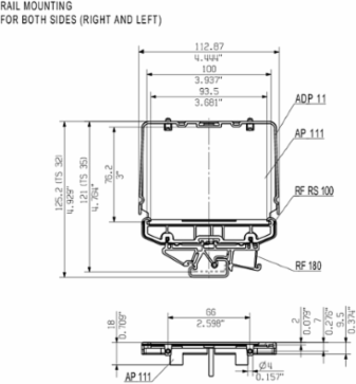

AP 111 BK End Plate, 27.2mm Width, IP20 Protection, Black - https://images.province-electric.com/WDM-1189900000/ap-111-bk-weidmuller-medium-alt-ebby.webp

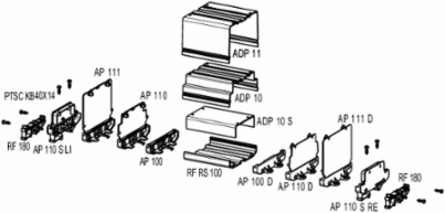

AP 111 BK End Plate, 27.2mm Width, IP20 Protection, Black - https://images.province-electric.com/WDM-1189900000/ap-111-bk-weidmuller-medium-alt-rpuk.webp

Documentation & Downloads

Weidmuller 1189900000 AP 111 BK End Plate, 27.2mm Width, IP20 Protection, Black

MPN: 1189900000
PPN: WDM-1189900000

CAD

$5.14

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electronics housings, RS 100 black, End plate, Width: 27.2 mm

Documentation & Downloads

Specifications

System Characteristics

Version: End plate

Contact to terminal rail: No

Encapsulation option: No

Cross-connectionNo

Protection degreeIP20

Approvals

ROHS: Conform

Dimensions And Weights

Length: 108.2 mm

Width: 27.2 mm

Height: 103.6 mm

Net weight: 8 g

Length (inches)4.26 inch

Width (inches)1.071 inch

Height (inches)4.079 inch

Material Data

Insulating material: PA 66

Colour chart (similar): RAL 9011

UL 94 flammability rating: V-2

Storage temperature, max.: 55 °C

Operating temperature, min.: -50 °C

Temperature range, installation, min.: -25 °C

Colourblack

Comparative Tracking Index (CTI)≥ 600

Storage temperature, min.-25 °C

Max. relative humidity during storage80 %

Operating temperature, max.100 °C

Temperature range, installation, max.100 °C

Classifications

ETIM 6.0: EC001031

eClass 9.0: 27-18-27-90

eClass 10.0: 27-18-27-92

ETIM 7.0EC001031

eClass 9.127-18-27-90

Notes

Descriptive text technical data: 3 heights are available for the cover profile and the end plates:TS mounting without cover: TS 32 = 45 mm, TS35x7.5 = 40.5 mmTS mounting with low cover: TS 32 = 89 mm, TS 35x7.5 = 84.5 mmTS mounting with high cover: TS 32 = 121 mm, TS 35x7.5 = 116.5 mmDirect mounting, without/low/high cover: 24 / 69 / 99 mmDimensions of the PCBThickness: 1.6 (±0.2) mm, width: 100 (+0.5) mmDimension of the RS section = length of the printed circuit board – 4.5 mmDimension of ADP section = PCB length - 1 mmExample:PCB length 160 mm, RS = 155.5 mm, ADP = 159 mm
