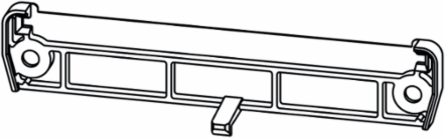

Weidmuller 1504790000 End Plate for RS 90 Profile Housing, Width 5 mm, Height 16.9 mm, IP20
- MPN: 1504790000
- PPN: WDM-1504790000
CAD
$3.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electronics housings, RS 90 Pale green, End plate, Width: 5 mm
Documentation & Downloads
Specifications
System Characteristics
| Version | End plate |
|---|
| Protection degree | IP20 |
|---|
Approvals
| ROHS | Conform |
|---|

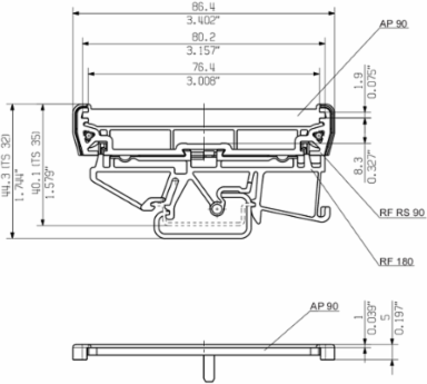

Dimensions And Weights
| Length | 84.4 mm |
|---|---|
| Width | 5 mm |
| Height | 16.9 mm |
| Net weight | 2.4 g |
| Length (inches) | 3.323 inch |
|---|---|
| Width (inches) | 0.197 inch |
| Height (inches) | 0.665 inch |
Material Data
| Insulating material | PA 66 |
|---|---|
| Colour chart (similar) | RAL 6021 |
| UL 94 flammability rating | V-2 |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -25 °C |
| Colour | Pale green |
|---|---|
| Comparative Tracking Index (CTI) | ≥ 600 |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-90 |
| eClass 10.0 | 27-18-27-92 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-90 |
Notes
| Descriptive text technical data | Dimensions of the PCB:Thickness: 1.6 (± 0.2) mm, width: 79.8 (+0.2) mmDimension of RS section = PCB length - 4.5 mmExample:PCB length 160 mm, RS section = 155.5 mm |
|---|
