Documentation & Downloads

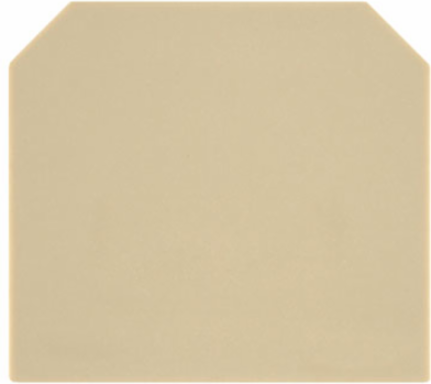

Weidmuller 9532470000 SAK Series End Plate 1.5 mm, Dark Beige, Direct Mounting, 2.894 Inch Height
- MPN: 9532470000
- PPN: WDM-9532470000
CAD
$2.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SAK Series, End plate, 1.5 mm, dark beige, Direct mounting
Documentation & Downloads
Specifications
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 1.5 mm
- Height
- 73.5 mm
- Depth
- 40.75 mm
- Net weight
- 3.585 g
Width (inches)0.059 inch
Height (inches)2.894 inch
Depth (inches)1.604 inch
Additional Technical Data
- Installation advice
- Direct mounting
- Type of mounting
- Plugged
Snap-onYes
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Classifications
- ETIM 6.0
- EC000886
- eClass 9.1
- 27-14-11-33
- UNSPSC
- 30-21-18-27
ETIM 7.0EC000886
eClass 10.027-14-11-33
System Specifications
- Version
- End plate
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
