Hubbell ATS-00545 ATS-00545 (former catalog number ATS-APLBKT-UNIV1)
- MPN: ATS-00545
- UPC: 662620434414
- PPN: HBL-ATS-00545
CAD
$237.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

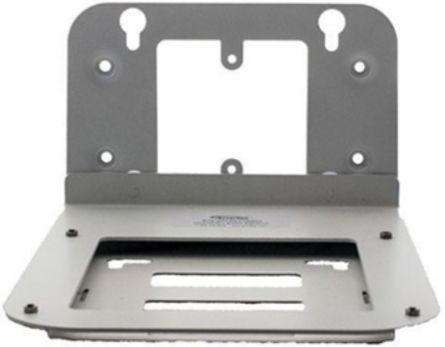

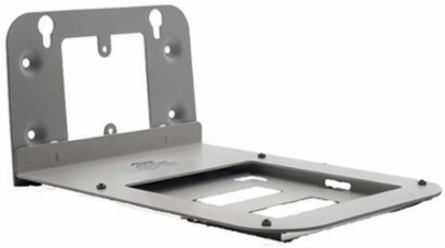

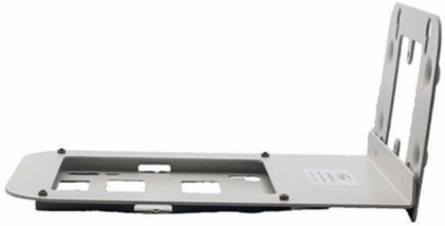

ATS-00545 (former catalog number ATS-APLBKT-UNIV1). The AccelTex Solutions AP L Bracket Wall Mount allows an AP to be mounted on a wall while still maintaining the preferred horizontal orientation to the ground. The AP snaps into place by fitting the AP mounting feet into pre-defined keyholes in the mount or using the T-Bar mount supplied with the AP. Includes wall mount anchors and screws. Additional fasteners may be required for other mounting surfaces.
Documentation & Downloads
Specifications
Key Specifications
| Color | White |
|---|---|
| Dimensions | 9.7 in x 7.1 in x 5.1 in |
| Length | 9.7 in |
| Application | Indoor Wi-Fi |
| Installation Type | Wall Mount |
| Freight Class Code | 01312001 |
| Image Actual Or Representative | A |
| Indoor/Outdoor | Indoor |
| Technology | 802.11ac, 802.11ax, 802.11n |
| Carton - SCC-14 Next Lower Level Sub Pack | 00662620434414 |
| Country of Origin | CN |
|---|---|
| Height | 5.1 in |
| Width | 7.1 in |
| Compatibility | Aruba/HP AP-314;Aruba/HP AP-315;Aruba/HP AP-344;Aruba/HP AP-345;Aruba/HP AP-504;Aruba/HP AP-505;Aruba/HP AP-514;Aruba/HP AP-515;Aruba/HP AP-518;Aruba/HP AP-534;Aruba/HP AP-535;Aruba/HP AP-555;Aruba/HP AP-565;Aruba/HP AP-567;Aruba/HP AP-574;Aruba/HP AP-575;Aruba/HP AP-635;Aruba/HP AP-655;Cisco 1562e;Cisco 1572eac;Cisco 1572ec;Cisco 3702e;Cisco 3702i;Cisco 3802e;Cisco 3802i;Cisco 9162i;Cisco 9164i;Cisco 9166i;Cisco Catalyst 9105AXI;Cisco Catalyst 9120AXE;Cisco Catalyst 9124AXE;Cisco Catalyst 9130AXE;Cisco Catalyst 9136i;Cisco IW9167E;Cisco Meraki MR36;Cisco Meraki MR42E;Cisco Meraki MR44;Cisco Meraki MR46;Cisco Meraki MR46E;Cisco Meraki MR52;Cisco Meraki MR53E;Cisco Meraki MR56;Cisco Meraki MR57;Cisco Meraki MR72;Cisco Meraki MR74;Cisco Meraki MR76;Cisco Meraki MR84;Cisco Meraki MR86;Mist AP32;Mist AP32E;Mist AP33;Mist AP34;Mist AP41;Mist AP41E;Mist AP43;Mist AP43E;Mist AP45;Mist AP45E |
| Class Code | A62 |
| Harmonization Code | 8302500000 |
| Sub Class Code | A62A622 |
| Material | Steel |
| Base Unit of Measure | EA |
