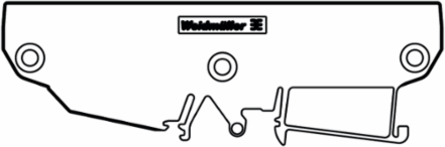

Weidmuller 1020640000 Electronics Housing End Plate 6.4 mm Width, 130.8 mm Length, Orange
- MPN: 1020640000
- PPN: WDM-1020640000
CAD
$3.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electronics housings orange, End plate, Width: 6.4 mm
Documentation & Downloads
Specifications
System Characteristics
- Version
- End plate
- Contact to terminal rail
- No
- Encapsulation option
- No
Cross-connectionNo
Protection degreeIP20
Approvals
- Approvals
- GOSTME25
ROHSConform
Dimensions And Weights
- Length
- 130.8 mm
- Width
- 6.4 mm
- Height
- 41.15 mm
- Net weight
- 17 g
Length (inches)5.15 inch
Width (inches)0.252 inch
Height (inches)1.62 inch
Material Data
- Insulating material
- PA 66
- Colour chart (similar)
- RAL 2000
- UL 94 flammability rating
- V-2
- Storage temperature, max.
- 55 °C
- Operating temperature, min.
- -50 °C
- Temperature range, installation, min.
- -25 °C
Colourorange
Comparative Tracking Index (CTI)≥ 600
Storage temperature, min.-25 °C
Max. relative humidity during storage80 %
Operating temperature, max.100 °C
Temperature range, installation, max.100 °C
Classifications
- ETIM 6.0
- EC001031
- eClass 9.0
- 27-18-27-90
- eClass 10.0
- 27-18-27-92
ETIM 7.0EC001031
eClass 9.127-18-27-90
Notes
- Descriptive text technical data
- 2 optional positions for the PCBDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: +0.5 mmDimension of RS section = PCB length - 5 mmExample:PCB length 160 mm, RS section = 155 mm
