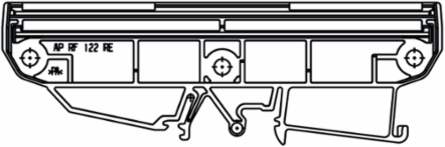

Weidmuller 1020650000 Electronics Housing End Plate 6.4 mm Width, 5.15 Inch Length, Orange

MPN: 1020650000
PPN: WDM-1020650000

$3.36

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Electronics housings orange, End plate, Width: 6.4 mm

Documentation & Downloads

Specifications

System Characteristics

Version	End plate
Contact to terminal rail	No
Encapsulation option	No

Cross-connection	No
Protection degree	IP20

Approvals

Approvals	GOSTME25

ROHS	Conform

Dimensions And Weights

Length	130.8 mm
Width	6.4 mm
Height	41.2 mm
Net weight	16.4 g

Length (inches)	5.15 inch
Width (inches)	0.252 inch
Height (inches)	1.622 inch

Material Data

Insulating material	PA 66
Colour chart (similar)	RAL 2000
UL 94 flammability rating	V-2
Storage temperature, max.	55 °C
Operating temperature, min.	-50 °C
Temperature range, installation, min.	-25 °C

Colour	orange
Comparative Tracking Index (CTI)	≥ 600
Storage temperature, min.	-25 °C
Max. relative humidity during storage	80 %
Operating temperature, max.	100 °C
Temperature range, installation, max.	100 °C

Classifications

ETIM 6.0	EC001031
eClass 9.0	27-18-27-90
eClass 10.0	27-18-27-92

ETIM 7.0	EC001031
eClass 9.1	27-18-27-90

Notes

Descriptive text technical data	2 optional positions for the PCBDimensions of the PCB:Thickness: 1.6 (±0.2) mm, width: +0.5 mmDimension of RS section = PCB length - 5 mmExample:PCB length 160 mm, RS section = 155 mm
