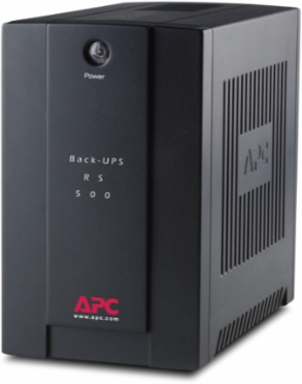

APC BR500CI-AS Back-UPS 500VA/300W Tower UPS with 3x IEC C13 Outlets, AVR, LED, 7.28 Inch Height
- MPN: BR500CI-AS
- UPC: 731304269793
- PPN: APC-BR500CI-AS
CAD
$131.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Back-UPS 500VA/300W Tower UPS with 3x IEC C13 Outlets, AVR, LED, 7.28 Inch Height
Features
- Adjustable voltage sensitivity — Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
- Adjustable voltage-transfer points — Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.
- Audible alarms — Provides notification of changing utility power and UPS power conditions
- Automatic self-test — Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Boost Automatic Voltage Regulation (AVR) — Preserves battery life and maximizes runtime by correcting low voltages without discharging the battery.
- Resettable circuit breaker — Easy recovery from overloads; no need to replace a fuse. (Not available on Wall Tap SKUs)
- Safety-agency approved — The UPS is UL1778 Listed
- Status Indicator LED's — Dual Status Indicator - Alerts you to the unit's power status. Green indicates it's ready for use. The Red indicator signals the unit's shutdown to save your automobile battery from draining.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 500 VA / 300 Watts
- Output Voltage (On utility)
- 230V, 45–65 Hz
- Surge Energy Rating
- 240 J
- Topology
- Line interactive
- Input Connection
- IEC-320 with two 1.8 meter power cords
- Unit Weight
- 4.9 kg
- Adjustable Sensitivity and Transfer Voltage
- Low, Medium, High
- Self Diagnostic Test
- Fully automatic every 14 days
Output Voltage (On battery)230V ±8%, 50 Hz ±1 Hz
Input Voltage / Frequency230V, 45–65 Hz; 160–280V for utility operation
Waveform TypeStepped approximation to a sine wave

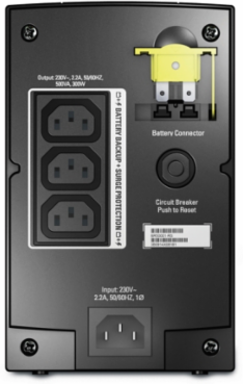

Output Connections3 IEC-320 outlets with battery backup and surge protection
Unit Dimensions (H x W x D)7.28 x 4.53 x 8.39 in (18.5 x 11.5 x 21.3 cm)
Battery Type7.5 AH maintenance-free, sealed lead-acid
AlarmsVisual (LED) and audible
RoHS ComplianceCompliant
