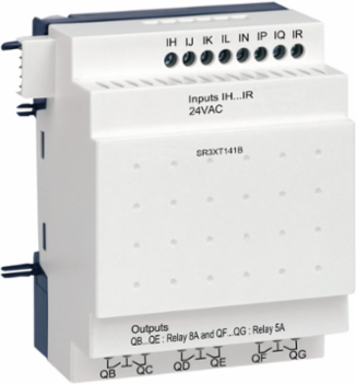

Telemecanique Sensors SR3XT141B Discrete I/O Extension Module, 14 I/O, 24 V AC, IP20/IP40
- MPN: SR3XT141B
- PPN: SCH-SR3XT141B
CAD
$166.94
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of Smart Relay Zelio Logic SR2/SR3, an offer of simple automation systems from 10 to 40 I/Os. This discrete I/O extension module offers 8 discrete inputs with 6 relay outputs. It is a module with discrete input voltage of 24V AC. It is an IP20 and IP40 rated product. It weighs 0.22kg. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-5, EN/IEC 61000-4-12 and EN/IEC 61000-4-4 L3 standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
Documentation & Downloads
Specifications
Key Specifications
| Range Of Product | Zelio Logic |
|---|
| Product Or Component Type | discrete I/O extension module |
|---|
Complementary
| Contacts Type And Composition | NO relay output |
|---|---|
| Discrete Input Frequency | 57...63 Hz || 47...53 Hz |
| Output Thermal Current | 5 A for 2 outputs relay output || 8 A for 4 outputs relay output |
| Number Or Control Scheme Lines | 120-120 ladder |
| Clock Drift | 12 min/year 0-55 °C |
| Current State 1 Guaranteed | >= 2 mA discrete input) |
| Net Weight | 0.22 kg |
| Voltage State 0 Guaranteed | <= 5 V discrete input |
| Electrical Durability | AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1 || AC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1 || DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1 || DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1 |
| Voltage State 1 Guaranteed | >= 14 V discrete input |
| Supply Voltage Limits | 20.4-28.8 V |
| Mechanical Durability | 10000000 cycles relay output |
| Switching Capacity In Ma | >= 10 mA 12 V relay output) |
| Discrete Input Number | 8 |
| Reverse Polarity Protection | with |
| [Us] Rated Supply Voltage | 24 V AC |
| Input Impedance | 4.6 kOhm discrete input |
|---|---|
| Number Of Outputs | 6 relay |
| Discrete Input Voltage | 24 V AC |
| Backup Time | 10 years 25 °C |
| Discrete Input Current | 4.4 mA |
| Response Time | 50 ms ladder from state 0 to state 1)discrete input || 50 ms ladder from state 1 to state 0)discrete input || 50...255 ms FBD from state 0 to state 1)discrete input || 50...255 ms FBD from state 1 to state 0)discrete input || 10 ms from state 0 to state 1)relay output || 5 ms from state 1 to state 0)relay output |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 and EN/IEC 60664-1 |
| Output Voltage Limits | 5...30 V DC relay output) || 24...250 V AC |
| Connections - Terminals | screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid |
| Current State 0 Guaranteed | <= 0.5 mA discrete input) |
| Overvoltage Category | III IEC 60664-1 |
| Tightening Torque | 0.5 N.m |
| Operating Rate In Hz | 0.1 Hz at Ie)relay output || 10 Hz no load)relay output |
| Cycle Time | 6-90 ms |
| Supply Frequency | 50/60 Hz |
| Checks | program memory on each power up |
Environment
| Product Certifications | C-Tick || GL || CSA || UL || GOST |
|---|---|
| Disturbance Radiated/Conducted | class B EN 55022-11 group 1 |
| Environmental Characteristic | EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2 |
| Pollution Degree | 2 IEC 61131-2 |
| Relative Humidity | 95-95 % without condensation or dripping water |
| Operating Altitude | 2000 m |
| Standards | IEC 61000-4-5 || IEC 61000-4-4 level 3 || IEC 61000-4-6 level 3 || IEC 60068-2-27 Ea || IEC 61000-4-11 || IEC 61000-4-3 || IEC 61000-4-2 level 3 || IEC 60068-2-6 Fc || IEC 61000-4-12 |
|---|---|
| Ambient Air Temperature For Operation | -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2 |
| Ip Degree Of Protection | IP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel) |
| Ambient Air Temperature For Storage | -40-70 °C |
| Maximum Altitude Transport | 3048 m |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP2011013EN |
| Pvc Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI2011013EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
