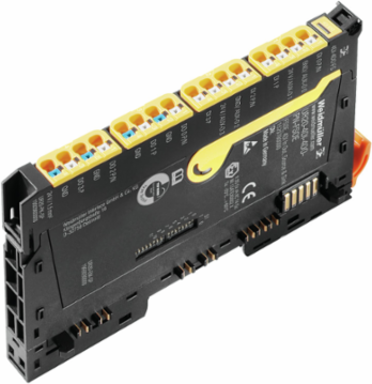

Weidmuller 2464580000 UR20-4DI-4DO-PN-FSOE-V2

MPN: 2464580000
PPN: WDM-2464580000

$524.22

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Remote I/O module, IP20, Safety, Digital signals, 4-channel

Documentation & Downloads

Specifications

General Data

Air humidity (operation)	10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)	10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (storage)	1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Pollution severity	2
Surge voltage category	II
UL 94 flammability rating	V-0

Air humidity (storage)	10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)	≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (transport)	1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Shock	15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Test voltage	500 V
Vibration resistance	5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Approvals

Approvals	CULUS, DEMKOATEX, FUSAFETY, IECEXULD
UL File Number Search	E141197

ROHS	Conform

Digital Inputs

Individual channel diagnosis	Yes
Input voltage, high	> 11 V
Module diagnosis	Yes
Number of digital inputs	4
Sensor supply	Yes

Input filter	configurable
Input voltage, low	< 5 V
Number	4
Reverse polarity protection	Yes
Type	Types 1 and 3, EN 61131-2

Dimensions And Weights

Width	11.5 mm
Height	120 mm
Depth	76 mm
Mounting dimension - height	128 mm

Width (inches)	0.453 inch
Height (inches)	4.724 inch
Depth (inches)	2.992 inch
Net weight	90.2 g

Digital Outputs

Actuator connection	2-wire
Individual channel diagnosis	Yes
Number	4
Output current per channel, max.	0.5 A
Response time of the protective circuit (current limiting)	< 100μs
Type	Types 1 and 3, EN 61131-2

Feedback-free	No
Module diagnosis	Yes
Number of digital outputs	4
Output current per module, max.	2 A
Short-circuit-proof	Yes

Connection Data

Type of connection	PUSH IN
Wire connection cross-section, finely stranded, min.	0.14 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 26
Wire cross-section, solid, max. (AWG)	AWG 16
Wire cross-section, solid, min. (AWG)	AWG 26

Wire connection cross section, finely stranded, max.	1.5 mm²
Wire cross-section, finely stranded, max. (AWG)	AWG 16
Wire cross-section, solid, max.	1.5 mm²
Wire cross-section, solid, min.	0.14 mm²
