APC AR7710 Vertical Cable Manager for NetShelter Racks, 3.15 Inch Width, 4.41 Inch Height
- MPN: AR7710
- UPC: 731304253600
- PPN: APC-AR7710
CAD
$267.16
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

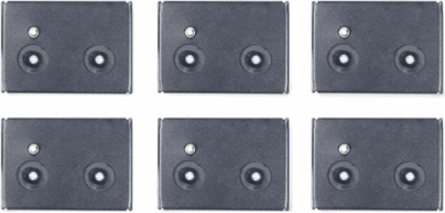

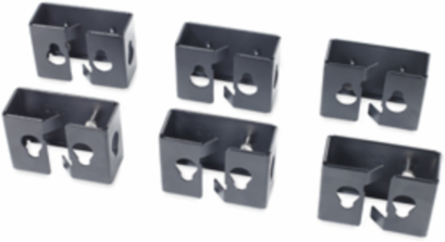

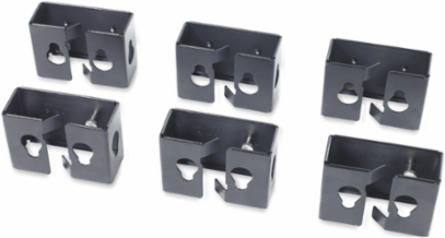

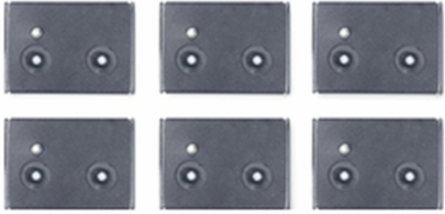

The AR7710 is a vertical cable manager containment bracket for NetShelter SX, SV, and VX racks. It is designed to manage and contain cables within the rack, improving organization and airflow. The dimensions are 80 mm in height, 112 mm in width, and 45 mm in depth, with a net weight of 0.99 lbs. The bracket is compliant with RoHS and REACh standards.
Features

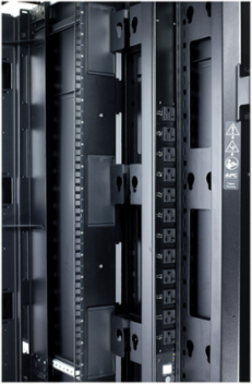

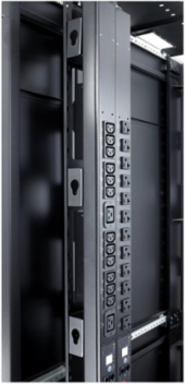

- Mount up to four vertical rack PDUs on one side.
- Quick release tabs — Insert or remove the device with ease.

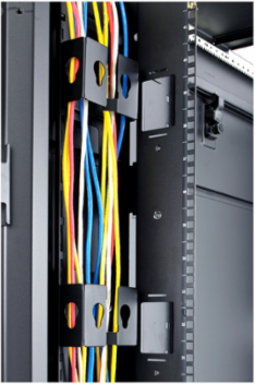

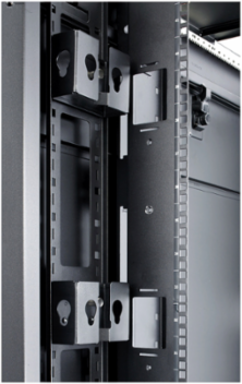

- For vertical cable management in NetShelter racks
- Works with multiple NetShelter models
- Includes an installation guide for quick setup
- Built to withstand demanding environments
Documentation & Downloads
Specifications
Additional
| Height | 4.41 in (11.2 cm) |
|---|---|
| Width | 3.15 in (8 cm) |
| Rack Height | 0U |
| Product Orientation | No preference |
| REACH SVHC | Free of Substances of Very High Concern above the threshold |
| Mercury Free | Yes |
| Warranty | 24 months |
| Color | Black |
| Mounting Mode | Rack-mounted |
| Depth | 1.77 in (4.5 cm) |
|---|---|
| Weight | 0.99 lb (0.45 kg) |
| Mounting Location | Side |
| RoHS Compliance | Compliant |
| Toxic Heavy Metal Free | Yes |
| WEEE Compliance | Must be disposed per EU waste collection |
| Take Back | No |
| Compatible Racks | NetShelter SX, SV, VX |
| Environmental Carbon Footprint | 7 kg CO2 eq (Total Life cycle) |
