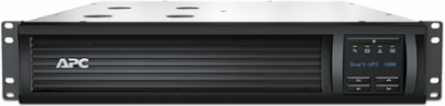

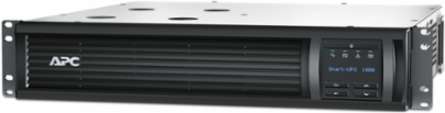

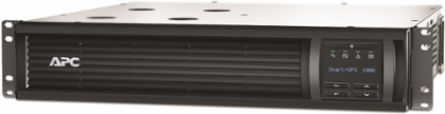

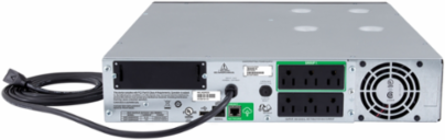

APC SMT1000RM2UC Smart-UPS Line Interactive 1000VA Rackmount 2U 120V 6x NEMA 5-15R Outlets
- MPN: SMT1000RM2UC
- UPC: 731304322788
- PPN: APC-SMT1000RM2UC
CAD
$1465.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Line Interactive 1000VA Rackmount 2U 120V 6x NEMA 5-15R Outlets
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 1000 VA
- Input Voltage
- 120 V AC 1 phase
- Input Frequency
- 50/60 Hz +/- 3 Hz
- Output Voltage Range
- 110-125 V
- Surge Energy Rating
- 680 J
- Waveform Type
- Sine wave
- Outlets
- 6 NEMA 5-15R
- Communication Ports
- SmartConnect Ethernet, SmartSlot, USB, RS-232
- Typical Recharge Time
- 3 h
- Replacement Battery
- APCRBC157
- Dimensions (HxWxD)
- 3.39 in x 17.01 in x 18.78 in (8.6 cm x 43.2 cm x 47.7 cm)
- Cable Length
- 8 ft (2.44 m)
- Color
- Black
- Heat Dissipation
- 175 Btu/h
- Operating Altitude
- 0-10,000 ft
- Relative Humidity
- 0-95%
- Approvals
- cULus, ENERGY STAR V2.0 (USA)
- Country of Origin
- Philippines
Power700 W
Input Voltage Range75-154 V adjustable
Output Voltage120 V AC 1 phase
Output Frequency50/60 Hz +/- 3 Hz
TopologyLine Interactive
Transfer Time6 ms typical, 10 ms maximum
Input Connection TypeNEMA 5-15P
Battery TypeLead-Acid battery
Battery Life4-6 years
Rack Height2U
Weight55.78 lb (25.3 kg)
Operating Temperature Range32-104 °F (0-40 °C)
Acoustic Level41 dBA
Storage Temperature Range5-113 °F (-15-45 °C)
Storage Altitude0-50,000 ft (0-15,240 m)
RoHSCompliant with Exemptions
Mercury FreeYes
