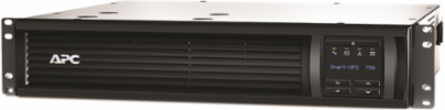

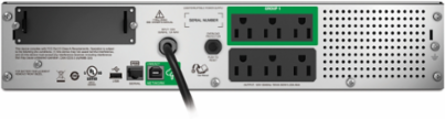

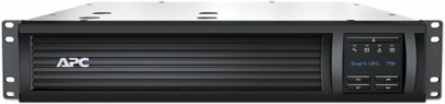

APC SMT750RM2UC Smart-UPS 750VA Rackmount 2U, 120V, 6x NEMA 5-15R Outlets, Line Interactive
- MPN: SMT750RM2UC
- UPC: 731304325468
- PPN: APC-SMT750RM2UC
CAD
$1119.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS 750VA Rackmount 2U, 120V, 6x NEMA 5-15R Outlets, Line Interactive
Features
- Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services. — Innovative, easy to use remote monitoring feature that provides automatic notifications, firmware updates, and advanced support services.
- Reduces utility costs, generates less heat. — Reduces utility costs, generates less heat.
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Energy meter — Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning. — Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Intuitive LCD interface — Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding. — Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Pure sine wave output on battery — Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
- Cold-start capable — Provides temporary battery power when the utility power is out.
- SmartSlot — Customize UPS capabilities with management cards.
- Temperature-compensated battery charging — Prolongs battery life by regulating the charge voltage according to battery temperature.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 750 VA
- Input Voltage
- 120 V
- Input Frequency
- 50/60 Hz ±3 Hz auto-sensing
- Waveform Type
- Sine wave
- Transfer Time
- 6 ms typical, 10 ms maximum
- Input Connection Type
- NEMA 5-15P
- Rack Height
- 2U
- Weight
- 39.02 lb (17.7 kg)
- Battery Type
- Lead-Acid battery
- Typical Recharge Time
- 3 h
- Color
- Black
- Heat Dissipation
- 70 Btu/h
- Storage Altitude
- 0–50,000 ft
- Storage Temperature
- 5–113 °F (-15–45 °C)
- Approvals
- cULus, ENERGY STAR V2.0 (USA)
- California Proposition 65
- Prop 65 Compliant
- Country of Origin
- Philippines
- Equipment Protection Policy
- Lifetime $150,000
Output Power500 W
Output Voltage120 V
TopologyLine Interactive
Surge Energy Rating680 J
Number of Outlets6 NEMA 5-15R
Form FactorRackmount 2U
Dimensions (HxWxD)3.39 in x 17.01 in x 16.10 in
Cord Length8 ft (2.44 m)
Battery Life4–6 years
Battery Charge Power56 W
Acoustic Level41 dBA
Operating Altitude0–10,000 ft
Operating Temperature32–104 °F (0–40 °C)
Relative Humidity (Operating/Storage)0–95%
RoHSCompliant with Exemptions
Mercury FreeYes
Replacement BatteryAPCRBC123
