APC SMT1500RM2UCNCUS Smart-UPS Line Interactive 1500VA Rackmount 2U 120V 6 NEMA 5-15R Outlets
- MPN: SMT1500RM2UCNCUS
- UPC: 731304740490
- PPN: APC-SMT1500RM2UCNCUS
CAD
$2626.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

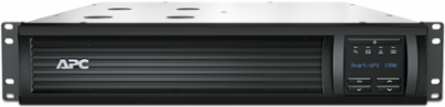

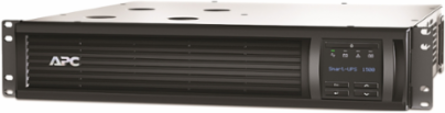

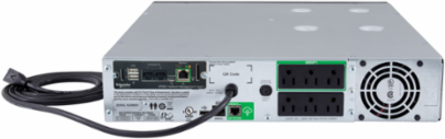

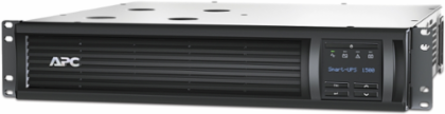

Smart-UPS Line Interactive 1500VA Rackmount 2U 120V 6 NEMA 5-15R Outlets
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1440 VA, 1000 W
- Output Voltage
- 120 V AC 1 phase
- Output Frequency
- 50/60 Hz ± 3 Hz
- Topology
- Line Interactive
- Typical Recharge Time
- 3 h
- Power Capacity
- 1500 VA
- Efficiency Voltage Range
- 75-154 V adjustable
- Rack Units
- 2U
- Weight
- 58.42 lb (26.5 kg)
- Number of Outlets
- 6 NEMA 5-15R
- Mounting Location
- Front
- Acoustic Level
- 45 dBA
- Compliance
- cULus, ENERGY STAR V2.0, TAA compliant
- Color
- Black
Input Voltage120 V AC 1 phase
Input Frequency50/60 Hz ± 3 Hz
Transfer Time6 ms typical, 10 ms max
Battery TypeLead-Acid battery
Surge Energy Rating680 J
Waveform TypeSine wave
Form FactorRackmount 2U
Dimensions (HxWxD)3.39 in x 17.01 in x 18.78 in
Input Connection TypeNEMA 5-15P
Cable Length8 ft (2.44 m)
Mounting PreferenceLower
Heat Dissipation225 Btu/h
RoHSCompliant with Exemptions
Country of OriginMexico
