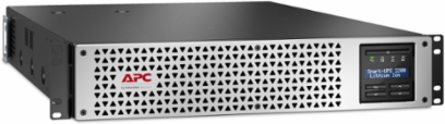

APC SMTL2200RM2UCNCUS APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 2x NEMA 5-20R+6x NEMA 5-15R outlets, SmartConnect Port+Network Card [TAA]
- MPN: SMTL2200RM2UCNCUS
- UPC: 731304740667
- PPN: APC-SMTL2200RM2UCNCUS
Quote Required
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Features
- 1920VA/1920W line interactive pure sine wave 2U rackmount UPS
- Ideal for small edge environment, back office, network infrastructure and IDF/MDF closets
- Lithium-ion battery minimizes the need to replace battery during the life time of UPS
- Cloud-based remote power monitoring via SmartConnect Ethernet Port
- 1-Year Secure Network Management Card subscription included
- Preinstalled Network Management Card for network-based UPS monitoring & management
- Peace of mind with a 5-year warranty on UPS and battery
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Conformance
| EquipmentProtectionPolicy | Lifetime : $150000 |
|---|---|
| Rohs | Compliant By Exemption |
| Reach Compliance Date | 2026-02-01 |
| Compliance | TAA Compliant |
|---|---|
| Reach | Reference contains Substances of Very High Concern above the threshold |
| Removable Battery | NO |
Battery
| ReplacementBattery | APCRBC174-LI |
|---|---|
| BatteryType | Li-Ion (Lithium Ion) |
| TypicalRechargeTime | 2 h |
|---|
Sustainability
| TakeBack | Yes |
|---|---|
| Recycled metal content in percentage | 0 % |
| Packaging without single use plastic | No |
| Carbon Footprint | 578.4083147036 |
|---|---|
| Packaging with recycled cardboard | No |
| Product contributes saved avoided emissions | No |
Weight, Height, Width, Depth
| Height | 3.39 in (86 mm) |
|---|---|
| Depth | 26.89 in (683 mm) |
| Width | 17.01 in (432 mm) |
|---|---|
| Weight | 70.18 lb(US) (31.9 kg) |
Logistical informations
| Customs number | 8504407018 |
|---|
Physical
| ProductOrientation | lower |
|---|---|
| RackHeight | 2U |
| SurgeEnergyRating | 530 J |
| InterfacePorts | SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use |
|---|---|
| Color | Black with silver front bezel |
Input
| CordLength | 8 ft (2.44 m) |
|---|---|
| InputVoltage | 120 V AC 1 phase |
| InputConnectionType | NEMA 5-20P |
|---|
Output
| OutputPowerCapacity | 1920 VA |
|---|---|
| NominalOutputVoltage | 120 V AC 1 phase |
| Waveformtype | Sine wave |
| OutputConnections | 2 NEMA 5-20R |
|---|---|
| Topology | Line Interactive |
Warranty
| Warranty | UPS: 36 month(s), Battery: 24 month(s) |
|---|

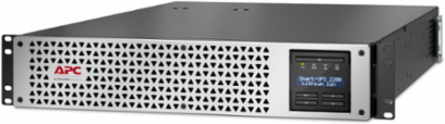

![APC Smart-UPS, Line Interactive, 2200VA, Lithium-ion, Rackmount 2U, 120V, 2x NEMA 5-20R+6x NEMA 5-15R outlets, SmartConnect Port+Network Card [TAA]](https://media.province-electric.com/405/xml_apc/medium/35294ae2b494e30a36c30f79c4433d8e4df5a4ab-medium.png)
