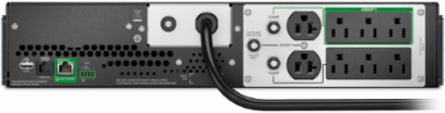

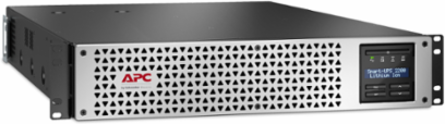

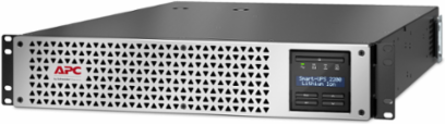

APC SMTL2200RM2UC Smart-UPS 2200VA Rackmount 2U, 120V, Lithium-ion, 2 NEMA 5-20R+6 NEMA 5-15R Outlets
- MPN: SMTL2200RM2UC
- UPC: 731304429098
- PPN: APC-SMTL2200RM2UC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 2200VA Rackmount 2U, 120V, Lithium-ion, 2 NEMA 5-20R+6 NEMA 5-15R Outlets
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 1920 VA
- Input Voltage
- 120 V
- Topology
- Line Interactive
- Transfer Time
- 6 ms typical, 10 ms maximum
- Crest Factor
- 3:1
- Input Frequency
- 50/60 Hz 3 Hz auto-sensing
- Battery Type
- Li-Ion (Lithium Ion)
- Battery Design Life
- 8-10 years
- Efficiency at Full Load
- 82% at 144 V
- Width
- 17.01 in (432 mm)
- Depth
- 26.89 in (683 mm)
- Input Connection Type
- NEMA 5-20P
- Cable Length
- 8 ft (2.44 m)
- Heat Dissipation
- 215 Btu/h
- Storage Altitude
- 0-25,000 ft
- Storage Temperature
- 5-113 F (-15-45 C)
- Relative Humidity
- 0-95% non-condensing
- Approvals
- cULus, ENERGY STAR V2.0 (USA)
- Mercury Free
- Yes
- Color
- Black with silver front bezel
Output Power1920 W
Output Voltage120 V
Waveform TypeSine wave
Surge Energy Rating530 J
Harmonic Distortion<5%
Output Frequency50/60 Hz 3 Hz sync to mains
Battery Recharge Time2 h
Battery Charge Power216 W rated
Rack Height2U
Height3.39 in (86 mm)
Weight70.33 lb (31.9 kg)
Output Connections2 NEMA 5-20R, 6 NEMA 5-15R
Acoustic Level55 dB
Operating Altitude0-10,000 ft
Operating Temperature32-104 F (0-40 C)
IP Degree of ProtectionIP20
Storage Relative Humidity0-95% non-condensing
RoHSCompliant with Exemptions
Country of OriginPhilippines
