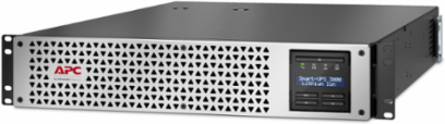

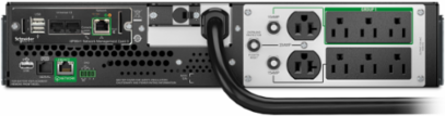

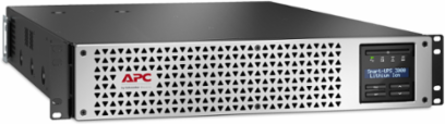

APC SMTL3000RM2UCNC Smart-UPS 3kVA Lithium-ion Rackmount 2U 120V 2x NEMA 5-20R+6x NEMA 5-15R Outlets
- MPN: SMTL3000RM2UCNC
- UPC: 731304429104
- PPN: APC-SMTL3000RM2UCNC
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 3kVA Lithium-ion Rackmount 2U 120V 2x NEMA 5-20R+6x NEMA 5-15R Outlets
Documentation & Downloads
Specifications
Additional
| Input Voltage | 120 V |
|---|---|
| Output Connections | 2 NEMA 5-20R, 6 NEMA 5-15R |
| Power Rating | 2700 W |
| Waveform Type | Sine wave |
| Crest Factor | 3 : 1 |
| Efficiency at Full Load | 82% at 144 V |
| Surge Energy Rating | 459 J |
| Battery Recharge Time | 2 h |
| Battery Charge Power | 216 W |
| Rack Units | 2U |
| Width | 17.01 in (432 mm) |
| Weight | 75.44 lb (34.22 kg) |
| Color | Black with silver front bezel |
| Operating Altitude | 0-10000 ft |
| Storage Temperature | 5-113 F (-15-45 C) |
| Relative Humidity | 0-95% non-condensing |
| RoHS | Compliant with Exemptions |
| Reach Free of SVHC | Yes |
| Nominal Output Voltage | 120 V |
|---|---|
| Output Power Capacity | 2880 VA |
| Topology | Line Interactive |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Harmonic Distortion | Less than 5% |
| Maximum Configurable Power | 3000 VA (2700 W) |
| Battery Type | Li-Ion (Lithium Ion) |
| Battery Design Life | 8-10 years |
| Input Connection Type | NEMA L5-30P |
| Height | 3.39 in (86 mm) |
| Depth | 26.89 in (683 mm) |
| Mounting Mode | Rack-mounted |
| Ingress Protection | IP20 |
| Ambient Operating Temperature | 32-104 F (0-40 C) |
| Storage Altitude | 0-25000 ft (0-7620 m) |
| Product Certifications | cULus, ENERGY STAR V2.0 (USA) |
| Mercury Free | Yes |
| Country of Origin | Philippines |
