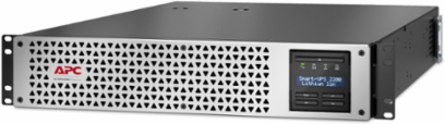

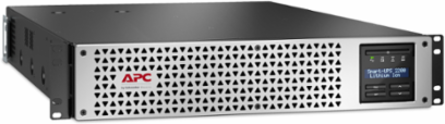

APC SMTL2K2RM2UCL Smart-UPS 2200VA Lithium-ion Rackmount 2U 120V AVR with 1x NEMA L5-20R+6x NEMA 5-20R Outlets
- MPN: SMTL2K2RM2UCL
- UPC: 731304450740
- PPN: APC-SMTL2K2RM2UCL
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS 2200VA Lithium-ion Rackmount 2U 120V AVR with 1x NEMA L5-20R+6x NEMA 5-20R Outlets
Documentation & Downloads
Specifications
Additional
| Power Capacity | 1920 VA |
|---|---|
| Input Voltage | 110 V, 120 V, 125 V |
| Input Frequency | 50/60 Hz +/- 3 Hz auto-sensing |
| Topology | Line Interactive |
| Surge Energy Rating | 530 J |
| Battery Life | 8-10 years |
| Input Connection Type | NEMA L5-20P |
| Form Factor | Rackmount 2U |
| Height | 3.39 in (86 mm) |
| Depth | 26.89 in (683 mm) |
| Cable Length | 8 ft (2.44 m) |
| Harmonic Distortion | Less than 5% |
| Heat Dissipation | 215 Btu/h |
| Ambient Operating Temperature | 32-104 F (0-40 C) |
| Storage Altitude | 0-25000 ft (0-7620 m) |
| Relative Humidity | 0-95% non-condensing |
| Compliance | ENERGY STAR V2.0, cULus |
| Mercury Free | Yes |
| Equipment Protection Policy | Lifetime $150000 |

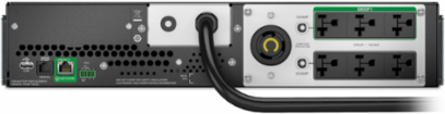

| Output Connections | 1 NEMA L5-20R, 6 NEMA 5-20R |
| Country of Origin | Philippines |
| Output Power | 1920 W |
|---|---|
| Output Voltage | 110 V, 120 V, 125 V |
| Transfer Time | 6 ms typical, 10 ms maximum |
| Waveform Type | Sine wave |
| Battery Type | Li-Ion (Lithium Ion) |
| Typical Recharge Time | 2 h |
| Output Connection Type | 1 NEMA L5-20R, 6 NEMA 5-20R |
| Rack Units | 2U |
| Width | 17.01 in (432 mm) |
| Weight | 70.33 lb (31.9 kg) |
| Efficiency at Full Load | 82-144 V adjustable |
| Acoustic Level | 55 dB |
| Operating Altitude | 0-10000 ft |
| Ambient Storage Temperature | 5-113 F (-15-45 C) |
| Ingress Protection | IP20 |
| Storage Relative Humidity | 0-95% non-condensing |
| RoHS | Compliant with Exemptions |
| Replacement Battery | APCRBC174-LI |
| Interface Port | SmartConnect Ethernet port, SmartSlot |
| Color | Black with silver front bezel |
