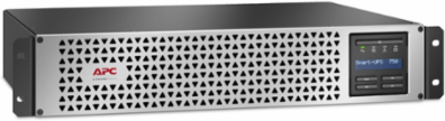

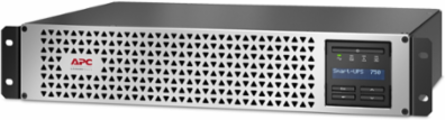

APC SMTL750RM2UCNC Smart-UPS Line Interactive 750VA, Lithium-ion, 2U, 120V, 6x NEMA 5-15R Outlets
- MPN: SMTL750RM2UCNC
- UPC: 731304435488
- PPN: APC-SMTL750RM2UCNC
CAD
$3044.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Smart-UPS Line Interactive 750VA, Lithium-ion, 2U, 120V, 6x NEMA 5-15R Outlets
Documentation & Downloads
Specifications
Additional
- Capacity
- 750 VA
- Input Voltage
- 120 V
- Number of Outlets
- 6 NEMA 5-15R
- Surge Energy Rating
- 680 J
- Output Frequency
- 50/60 Hz ±3 Hz sync to mains
- Harmonic Distortion
- <5%
- Cable Length
- 8 ft (2.44 m)
- Width
- 17.24 in (438 mm)
- Weight
- 33.95 lb (15.4 kg)
- Battery Type
- Li-Ion (Lithium Ion)
- Waveform Type
- Sine wave
- Operating Temperature
- 32-104 °F (0-40 °C)
- Operating Altitude
- 0-10000 ft
- Relative Humidity
- 0-95% non-condensing
- Acoustic Level
- 41 dBA
- Battery Recharge Time
- 3 h
- Battery Charge Power
- 94 W
- RoHS
- Compliant with Exemptions
- Approvals
- NOM
Rated Power600 W
Output Voltage120 V
Input Connection TypeNEMA 5-15P
Input Frequency50/60 Hz ±3 Hz auto-sensing
Crest Factor3:1
Transfer Time6 ms typical, 10 ms maximum
Height3.39 in (86 mm)
Depth12.52 in (318 mm)
Rack Unit Size2U
TopologyLine Interactive
Input ProtectionCircuit breaker
Storage Temperature5-113 °F (-15-45 °C)
Storage Altitude0-25000 ft
Storage Relative Humidity0-95% non-condensing
Heat Dissipation135 Btu/h
Battery Design Life8-10 years
Country of OriginPhilippines
Mercury FreeYes
ColorBlack with silver front bezel
