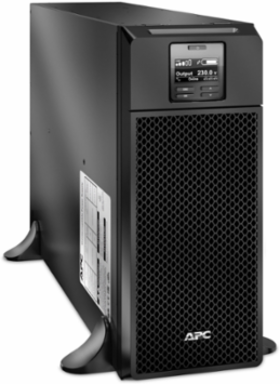

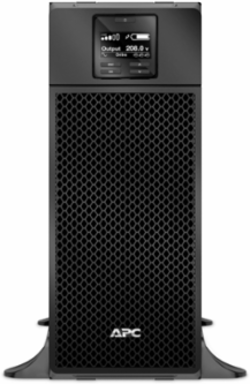

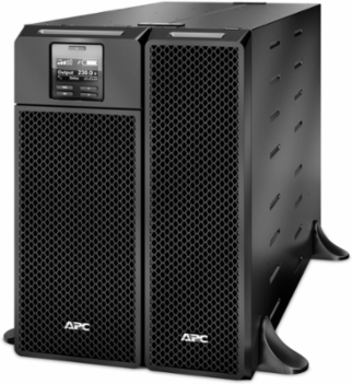

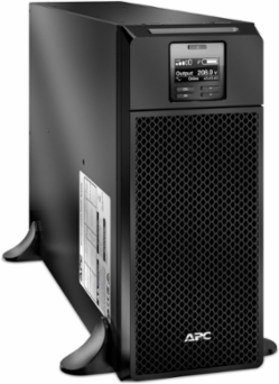

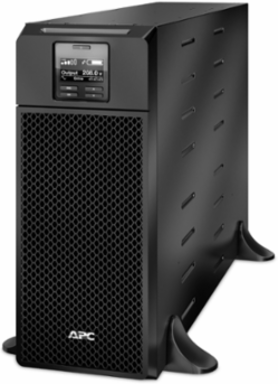

APC SRT6KXLT Smart-UPS On-Line 6000 VA, Tower, 208V, 2x L6-20R & 3x L6-30R Outputs, Black

MPN: SRT6KXLT
UPC: 731304301677
PPN: APC-SRT6KXLT

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 6kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 3x NEMA L6-30R and 2x L6-20R outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Features

Text and mimic diagrams that display modes of operation, system parameters and alarms.
Connect the device to a network using a 10 or 100 BaseT connection
UPS requires a hard wire input in order to deliver maximum output wattage to protected equipment
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
6kVA/6kW double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192BP) for extended runtime
Embedded Network Management Card for network-based UPS monitoring & management
Graceful shutdown of physical servers, virtual machines and HCI Clusters
SmartSlot for additional communication options
Delivers clean power with zero transfer time for critical or sensitive devices

Documentation & Downloads

Specifications

Additional

Power Capacity	6000 VA
Output Voltage	208 V
Mounting Position	Vertical
Weight	134.99 lb (61.23 kg)
Typical Recharge Time	1.5 h
Color	Black
Certifications	ENERGY STAR V2.0, FCC part 15 class A, NOM, UL 1778, RoHS Compliant with Exemptions, California Prop 65 Warning

Input Voltage	208 V

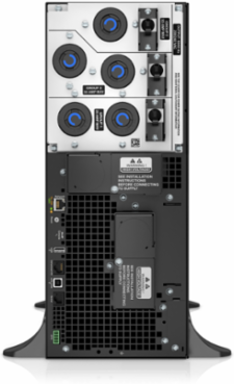

Output Connections	Hard Wire 3-wire (2PH + G), 2 NEMA L6-20R, 3 NEMA L6-30R
Dimensions	17.01 in (H) x 6.85 in (W) x 28.31 in (D)
Battery Type	Lead-Acid battery
Topology	Double Conversion Online
Surge Energy Rating	480 J
Country of Origin	Philippines
