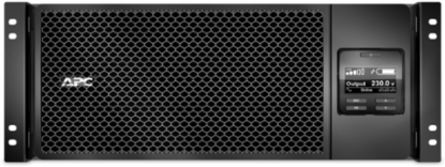

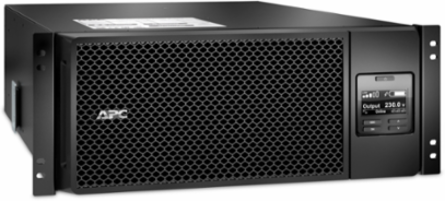

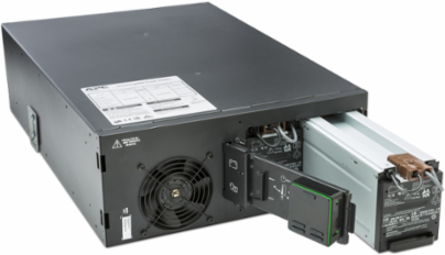

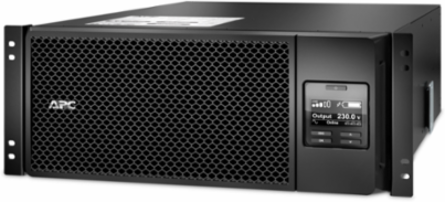

APC SRT6KRMXLIM Smart-UPS On-Line 6kVA Rackmount 4U 230V with 6x C13 & 4x C19 Outlets, 132.28 lb
- MPN: SRT6KRMXLIM
- UPC: 731304320838
- PPN: APC-SRT6KRMXLIM
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line 6kVA Rackmount 4U 230V with 6x C13 & 4x C19 Outlets, 132.28 lb
Features

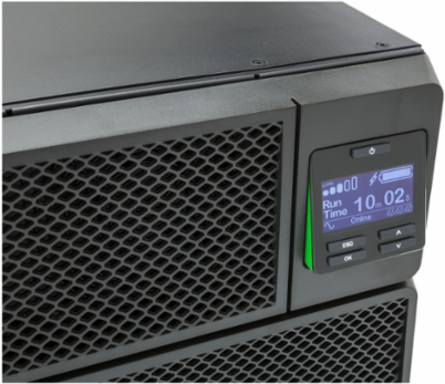

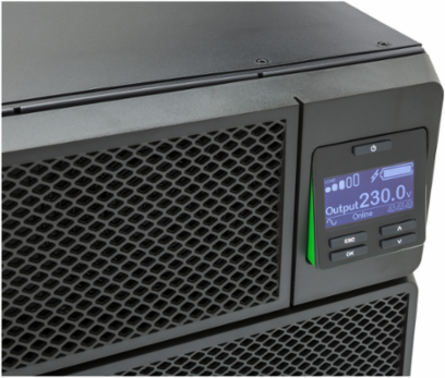

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
- 10/100 BaseT Connection — Connect the device to a network using a 10 or 100 BaseT connection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance

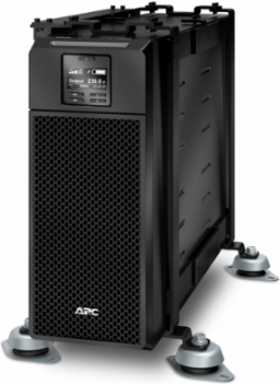

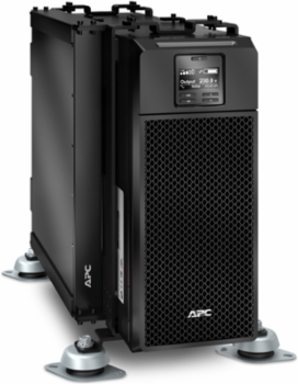

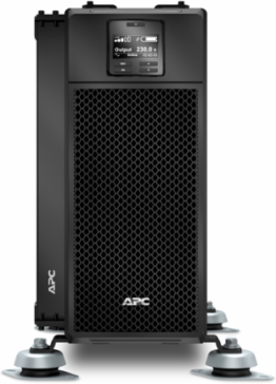

- Rack/Tower convertible — Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Documentation & Downloads
Specifications
Additional
- Output Power Capacity
- 6000 VA / 6000 W
- Nominal Output Voltage
- 230 V
- Waveform Type
- Sine wave
- Width
- 17.01 in (432 mm)
- Weight
- 132.28 lb (60 kg)
- Typical Recharge Time
- 1 h
- Topology
- Double Conversion Online
- Color
- Black
- RoHS
- Compliant with Exemptions
- Operating Temperature
- 32 to 104 F (0 to 40 C)
- Operating Altitude
- 0 to 10,000 ft
- Relative Humidity
- 0 to 95% non-condensing
- Output Frequency
- 50/60 Hz 3 Hz sync to mains
- Harmonic Distortion
- Less than 3%
- Heat Dissipation
- 1300 Btu/h
- Product Orientation
- no preference
Input Voltage230 V

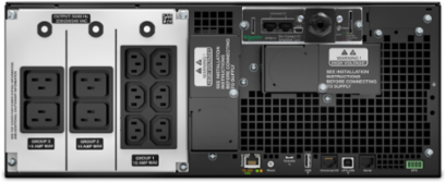

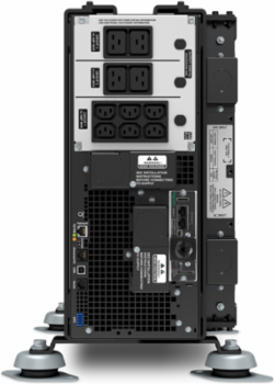

Output ConnectionsHard Wire 3-wire (H N + E) 1, 6 IEC 60320 C13, 2 IEC Jumpers, 4 IEC 60320 C19
Height6.85 in (174 mm)
Depth28.32 in (719.4 mm)
Battery TypeLead-Acid battery
Replacement BatteryAPCRBC140
Rack Height4U
ComplianceCE, EAC, RCM, VDE
Surge Energy Rating480 J
Storage Temperature5 to 113 F (-15 to 45 C)
Storage Altitude0 to 50,000 ft (0 to 15,240 m)
Input Frequency40 - 70 Hz auto-sensing
Crest Factor3:1
Acoustic Level55 dBA
Mount Positionfront
ReachContains Substances of Very High Concern above threshold
