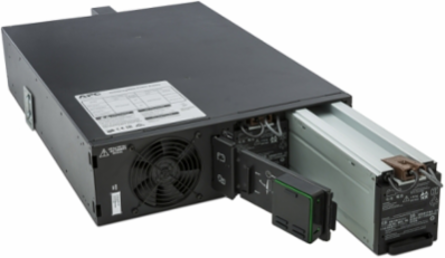

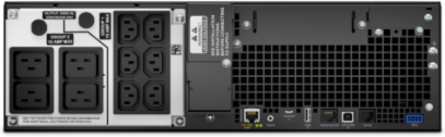

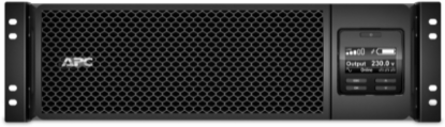

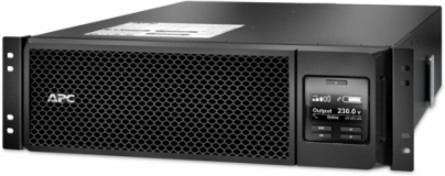

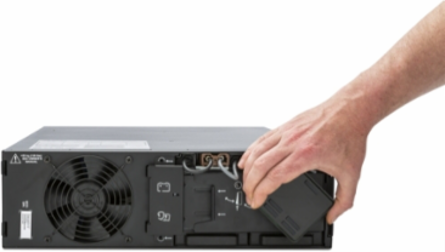

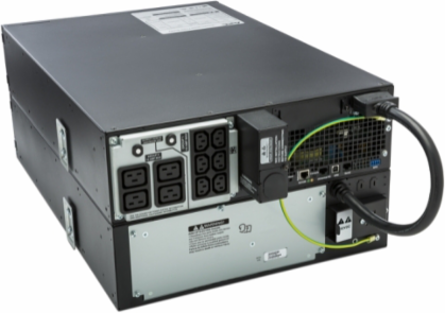

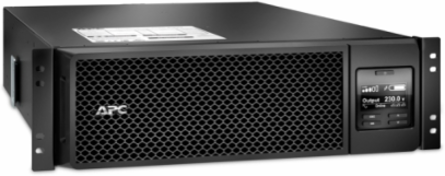

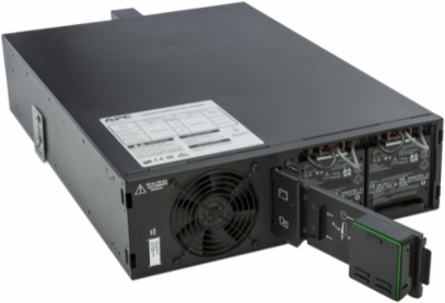

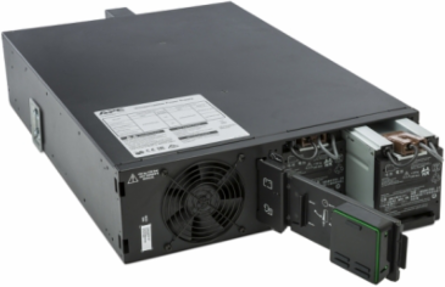

APC SRT5KRMXLI APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
APC SRT5KRMXLI APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
- MPN: SRT5KRMXLI
- UPC: 731304301196
- PPN: APC-SRT5KRMXLI
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
APC Smart-UPS On-Line, 5kVA, Rackmount 3U, 230V, 6x C13+4x C19 IEC outlets, Network Card+SmartSlot, Extended runtime, W/ rail kit
Features
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- ECO Mode — Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

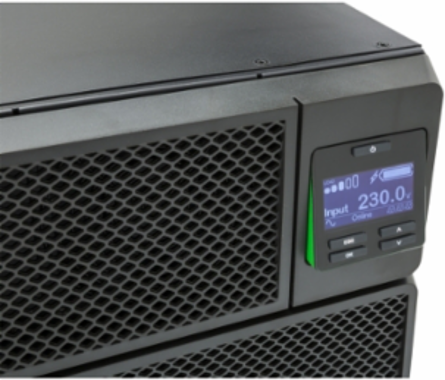

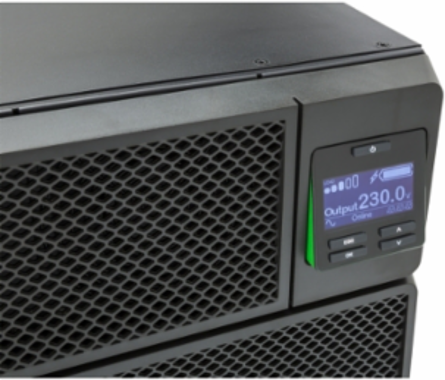

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
Specifications
Conformance
- Approvals
- CE, CE Mark, EAC, IRAM, RCM, VDE
Battery
- Typical recharge time
- 1.5
Battery TypeLead-acid battery
Sustainability
- RoHS
- Compliant
Physical
- Interface Port(s)
- RJ-45 10/100 Base-T,RJ-45 Serial,Smart-Slot,USB
- Rack Height
- 3
- Surge Energy Rating
- 480
Product OrientationRack
ColorBlack
Mount PositionFront,Horizontal
Input
- Input Connection Type
- Hard wire 3-wire (1P + N + E)
Input Voltage[seVoltCodes:230]
Output
- Output Power Capacity, VA
- 5000
- Nominal Output Voltage
- 230V
- Waveform type
- Sine wave
Output Connections22
TopologyDouble conversion online
Height, Width, Depth
- Height
- 5.12 in
- Width
- 17.01 in
- Depth
- 28.32 in
Height (metric)13.0 cm
Width (metric)43.2 cm
Depth (metric)71.94 cm
Warranty
- Warranty
- 3 years repair or replace (excluding battery) and 2 years for battery
