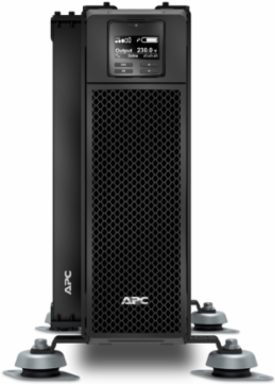

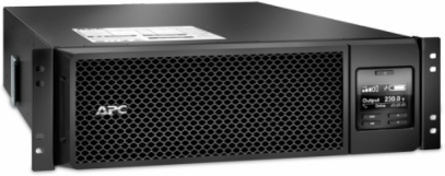

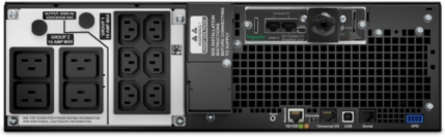

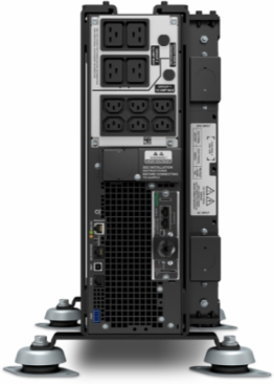

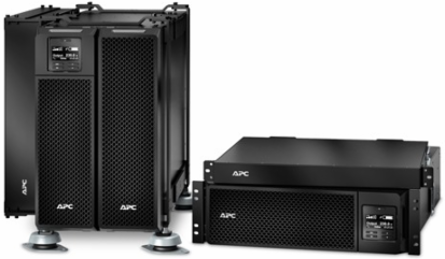

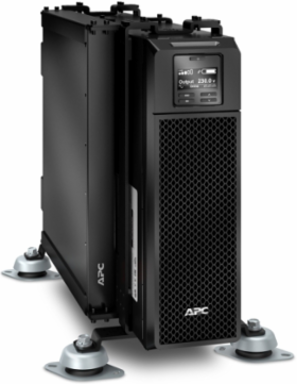

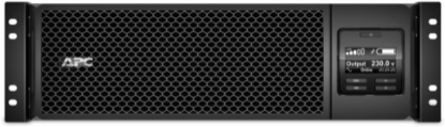

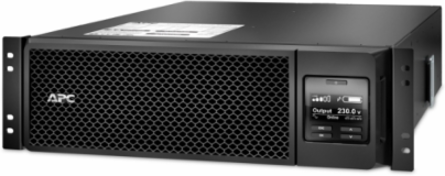

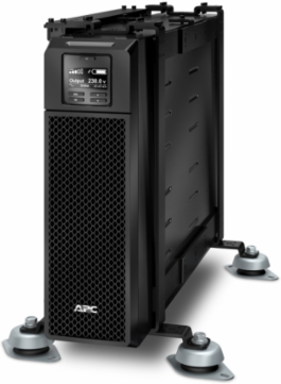

APC SRT5KRMXLIM Smart-UPS On-Line 5000VA 3U Rackmount 230V, 6x C13 + 4x C19, Lead-Acid Battery
- MPN: SRT5KRMXLIM
- UPC: 731304320821
- PPN: APC-SRT5KRMXLIM
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Smart-UPS On-Line 5000VA 3U Rackmount 230V, 6x C13 + 4x C19, Lead-Acid Battery
Features
- Battery failure notification — Provides early-warning fault analysis on batteries enabling timely preventive maintenance
- Green mode — Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

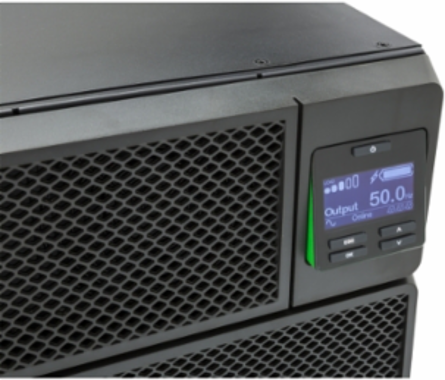

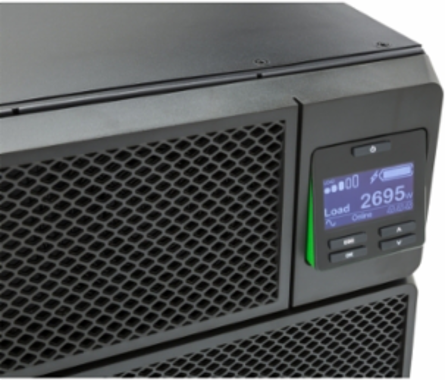

- LCD graphics display — Text and mimic diagrams that display modes of operation, system parameters and alarms.
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 5000 VA |
|---|---|
| Input Voltage | 230V |
| Battery Type | Lead-acid battery |
| Waveform Type | Sine wave |
| Dimensions | 17.01 in (W) x 5.12 in (H) x 28.32 in (D) |
| Height (metric) | 13.0 cm |
| Input Connection Type | Hard wire 3-wire (1P + N + E) |
| Product Orientation | Rack |
| Form Factor | 3U Rackmount |
| Approvals | CE, DNV, EAC, RCM, VDE |
| Warranty | 3 years repair or replace (excl. battery), 2 years battery |
| Nominal Output Voltage | 230V |
|---|---|
| Output Connections | 12 |
| Topology | Double conversion online |
| Surge Energy Rating | 480 J |
| Width (metric) | 43.2 cm |
| Depth (metric) | 71.94 cm |
| Mount Position | Front |
| Interface Ports | Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB |
| Color | Black |
| RoHS | Compliant |
| Typical Recharge Time | 1 hour |
