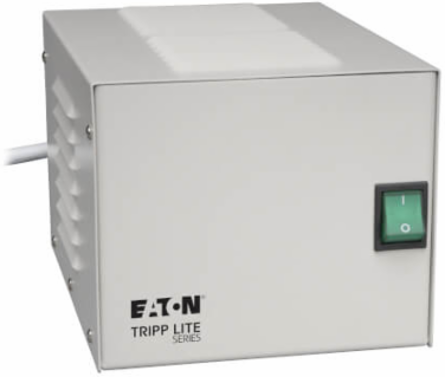

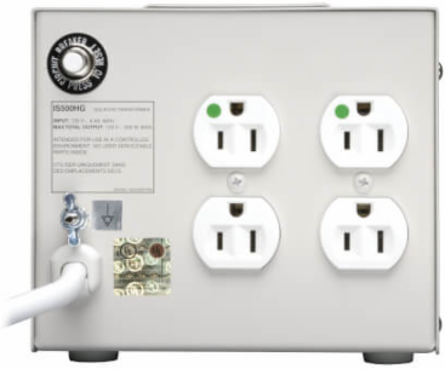

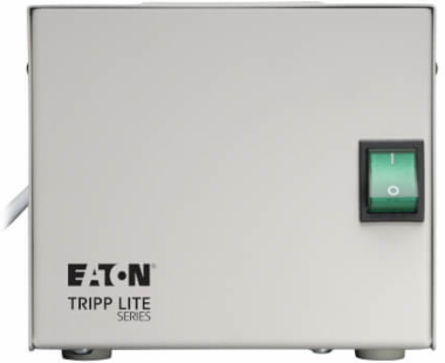

Tripp Lite IS500HG Medical-Grade Isolation Transformer 120V 500W with 4 Hospital-Grade Outlets
- MPN: IS500HG
- UPC: 037332115898
- PPN: TRP-IS500HG
CAD
$757.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolator Series 120V 500W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets, TAA
Features
- Instruction manual with warranty information included
Documentation & Downloads
Specifications
Additional
- Voltage
- 120V AC
- Leakage Current
- Less than 100 microamps
- Efficiency
- 96%
- Transformer Type
- Medical-grade, low impedance transformer-based line isolation
- Let-through Voltage Ring Wave
- L-N: 20V, L-G: 20V, N-G: 0.5V
- Power Capacity
- 500W

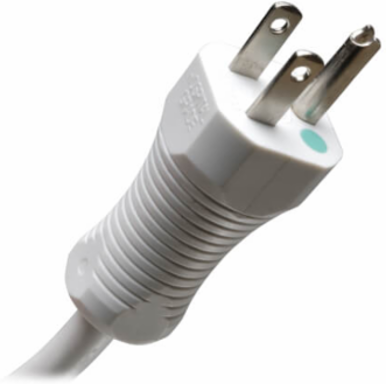

- Input Plug Type
- NEMA 5-15P Hospital Grade
- Dimensions (H x W x D)
- 5.75 x 6.25 x 9.25 in
- Form Factor
- Tower
- Compliance
- UL 60601-1
Output Current4.2A
Noise Suppression Rating35-65 dB
Total Harmonic DistortionLess than 1%
Let-through Voltage Combination WaveL-N: 250V, L-G: 250V, N-G: 0.5V
Frequency60 Hz
Output Receptacles4 NEMA 5-15R Hospital Grade
Input Cord Length10 ft
Weight23.2 lbs
Cooling MethodConvection
Warranty Period2-year limited warranty
