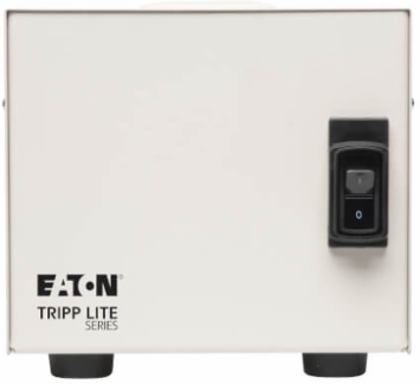

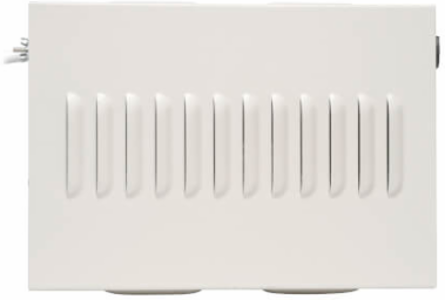

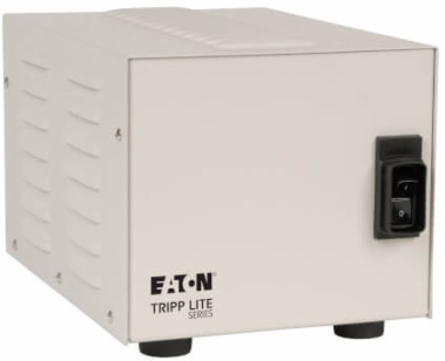

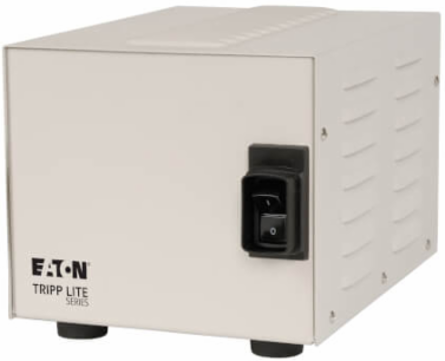

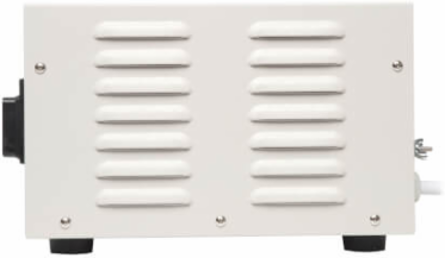

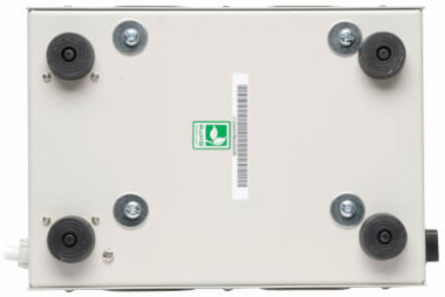

Tripp Lite IS1000HG Medical-Grade Isolation Transformer 1000W 120V with 4 Hospital-Grade Outlets
- MPN: IS1000HG
- UPC: 037332116215
- PPN: TRP-IS1000HG
CAD
$1120.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Isolator Series 120V 1000W UL 60601-1 Medical-Grade Isolation Transformer with 4 Hospital-Grade Outlets, TAA
Features
- Medical-grade isolation transformer for healthcare environments
- Hospital-grade input plug (NEMA 5-15P-HG) and outlets (5-15R-HG)
Documentation & Downloads
Specifications
Additional
| VA / Watt Capacity | 1000 W |
|---|---|
| Output Amp Capacity | 8.8 A |
| Transformer Type | Medical-grade, low impedance transformer-based line isolation transformer |
| Total Harmonic Distortion | Less than 1% |

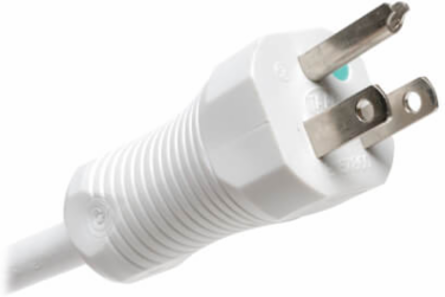

| Input Plug Type | NEMA 5-15P Hospital Grade |
| Let-through Voltage Combination Wave | L-N: 250V L-G: 250V N-G: 0.5V |
| Leakage Current | Less than 100 microamps |
| Cooling Method | Convection |
| Unit Dimensions | 7.75 x 7.25 x 10.5 in |
| Shipping Weight | 37.7 lbs |
| Warranty | 2-year limited warranty |
| Voltage / Frequency | 120V AC / 60 Hz |
|---|---|
| Over Current Protection | 1 x Thermal, 2 pole, 10 amp |
| Efficiency | 96% |

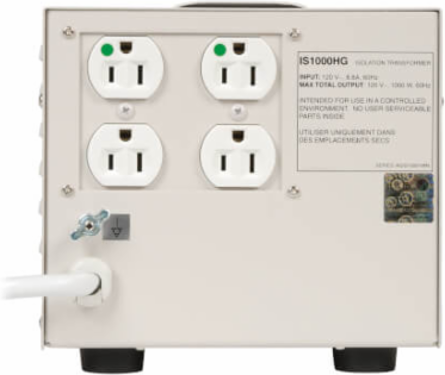

| Output Receptacles | (4) 5-15R Hospital Grade |
| Input Cord Length | 10 ft |
| Let-through Voltage Ring Wave | L-N: 20V L-G: 20V N-G: 0.5V |
| Noise Suppression Rating | 35-65 dB |
| Form Factor | Tower |
| Shipping Dimensions | 10.40 x 10.70 x 12.80 in |
| Compliance | UL 60601-1 Medical Grade, TAA-compliant |
