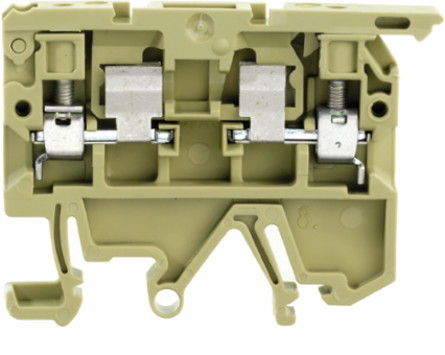

Weidmuller 1937670000 SAK Fuse Terminal Block, 4 mm2, Snap-on Mounting, 24V AC/DC
- MPN: 1937670000
- PPN: WDM-1937670000
CAD
$46.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SAK Series, Fuse terminal, Rated cross-section: 4 mm², Screw connection, Direct mounting
Documentation & Downloads
Specifications
Approvals
| Approvals | EAC |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 8.1 mm |
|---|---|
| Height | 58 mm |
| Depth | 51.5 mm |
| Net weight | 13.84 g |
| Width (inches) | 0.319 inch |
|---|---|
| Height (inches) | 2.283 inch |
| Depth (inches) | 2.028 inch |
Fuse Terminals
| Cartridge fuse | G-Si. 5 x 20 |
|---|
Dimensions
| TS 32 offset | 10.5 mm |
|---|
| TS 35 offset | 8.5 mm |
|---|
Additional Technical Data
| Installation advice | Direct mounting |
|---|
| Type of mounting | Snap-on |
|---|
Material Data
| Material | PA 66 |
|---|---|
| UL 94 flammability rating | V-2 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000899 |
|---|---|
| eClass 9.0 | 27-14-11-16 |
| eClass 10.0 | 27-14-11-16 |
| ETIM 7.0 | EC000899 |
|---|---|
| eClass 9.1 | 27-14-11-16 |
System Specifications
| Version | Screw connection, Fuse cartridge, with LED, One end without connector |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| PE connection | No |
| N-function | No |
| PEN function | No |
| Number of potentials | 1 |
|---|---|
| Number of clamping points per level | 2 |
| Levels cross-connected internally | No |
| Rail | TS 35, TS 32 |
| PE function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 100 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 4 mm² |
|---|---|
| Rated current | 6.3 A |
| Power loss in accordance with IEC 60947-7-x | 1.02 W |
| Rated voltage | 24 V |
|---|---|
| Volume resistance according to IEC 60947-7-x | 1 mΩ |
Conductors For Clamping (Rated Connection)
| Number of connections | 2 |
|---|
| Type of connection | Screw connection |
|---|
