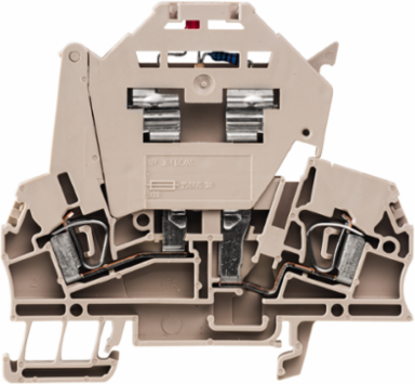

Weidmuller 1616440000 ZSI 2.5/LD 28AC
Weidmuller 1616440000 ZSI 2.5/LD 28AC
- MPN: 1616440000
- PPN: WDM-1616440000
Spec sheet
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$25.08/ EA
Description
Z-series, Fuse terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige, Direct mounting
Specifications
Approvals
- Approvals
- CE, CSA, DNV GL, EAC, LLOYDSREG, MARITREG, RINA, UR
- UL File Number Search
- E60693
ROHSConform
Display Element
- Current
- 6.3 A
- Operating voltage for display, min.
- 10 V
Operating voltage for display, max.36 V
Type of voltage for indicatorAC/DC
Dimensions And Weights
- Width
- 7.9 mm
- Height
- 79.5 mm
- Depth
- 73 mm
- Depth including DIN rail
- 74 mm
Width (inches)0.311 inch
Height (inches)3.13 inch
Depth (inches)2.874 inch
Net weight19.63 g
Fuse Terminals
- Cartridge fuse
- G-Si. 5 x 20
- Display
- Red LED
- Operating voltage, max.
- 28 V
- Power loss for overload and short-circuit protection for an individual arrangement
- 2.5 W at 2.5 A @ 27°C
- Power loss for short-circuit protection only for an individual arrangement
- 4.0 W at 6.3 A @ 52°C
Current6.3 A
Fuse holder (cartridge holder)Pivoting
Power loss for overload and short-circuit protection for a composite arrangement1.6 W at 6.3 A @ 41°C
Power loss for short-circuit protection only for a composite arrangement2.5 W at 6.3 A @ 55°C
Type of voltage for indicatorAC/DC
Csa Rating Data
- Certificate No. (CSA)
- 200039-1152892
- Wire cross section min. (CSA)
- 26 AWG
Wire cross section max. (CSA)12 AWG
Additional Technical Data
- Explosion-tested version
- No
- Number of similar terminals
- 1
- Type of mounting
- Snap-on
Installation adviceDirect mounting
Open sidesright
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-11
System Specifications
- Version
- Tension-clamp connection, Fuse cartridge, with LED, for plug-in cross-connector, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 2.5 mm²
Rating Data
- Rated cross-section
- 2.5 mm²
- Rated voltage to adjoining terminal
- 500 V
- Current at maximum wires
- 6.3 A
- Volume resistance according to IEC 60947-7-x
- 1.33 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage28 V
Rated current6.3 A
StandardsIEC 60947-7-3
Power loss in accordance with IEC 60947-7-x0.77 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.6 x 3.5 mm
- Clamping range, min.
- 0.13 mm²
- Gauge to IEC 60947-1
- A3
- Stripping length
- 10 mm
- Wire connection cross section AWG, max.
- AWG 12
- Wire connection cross section, finely stranded, max.
- 4 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 4 mm²
Clamping range, max.4 mm²
Connection directionInclined / angled
Number of connections2
Type of connectionTension-clamp connection
Wire connection cross section AWG, min.AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.2.5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 26 AWG
- Conductor size Field wiring min. (UR)
- 26 AWG
Conductor size Factory wiring max. (UR)12 AWG
Conductor size Field wiring max. (UR)12 AWG
