Weidmuller 1014000000 WSI 6/2 GZ/DEF63
Weidmuller 1014000000 WSI 6/2 GZ/DEF63
- MPN: 1014000000
- PPN: WDM-1014000000
Spec sheet
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$12.37/ EA
Description

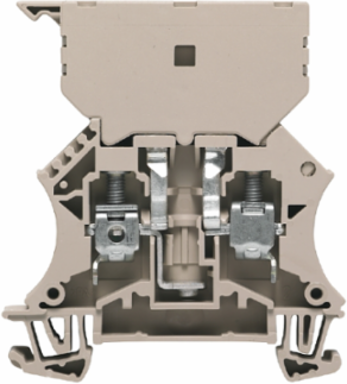

W-Series, Fuse terminal, Rated cross-section: 6 mm², Screw connection
Specifications
Approvals
- Approvals
- CE, CSA, DNV GL, EAC, LLOYDSREG, MARITREG, NEMKO, UR
- UL File Number Search
- E60693
ROHSConform
Display Element
- Operating voltage for display, max.
- 500 V
Type of voltage for indicatorAC
Dimensions And Weights
- Width
- 11.9 mm
- Height
- 60 mm
- Depth
- 66.5 mm
- Depth including DIN rail
- 67 mm
- Net weight
- 23.94 g
Width (inches)0.469 inch
Height (inches)2.362 inch
Depth (inches)2.618 inch
Weight27.68 g
Fuse Terminals
- Cartridge fuse
- 6.3 x 32 mm (1/4 x 1 1/4")
- Fuse holder (cartridge holder)
- Pivoting
- Power loss for overload and short-circuit protection for a composite arrangement
- 2.5 W at 2.5 A @ 30°C
- Power loss for short-circuit protection only for a composite arrangement
- 2.5 W at 2.5 A @ 62°C
- Type of voltage for indicator
- AC
DisplayWithout LED
Operating voltage, max.500 V
Power loss for overload and short-circuit protection for an individual arrangement2.5 W at 2.5 A @ 42°C
Power loss for short-circuit protection only for an individual arrangement4 W at 10 A @ 52°C
Csa Rating Data
- Certificate No. (CSA)
- 200039-1057876
- Current size C (CSA)
- 16 A
- Voltage size B (CSA)
- 150 V
- Voltage size D (CSA)
- 600 V
- Wire cross section min. (CSA)
- 20 AWG
Current size B (CSA)16 A
Current size D (CSA)5 A
Voltage size C (CSA)150 V
Wire cross section max. (CSA)6 AWG
2 Clampable Conductors (H05V/H07V) With Equal Cross-Section (Rated Connection)
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, min.
- 0.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.2.5 mm²
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, 2 clampable wires, max.2.5 mm²
Additional Technical Data
- Explosion-tested version
- No
- Open sides
- right
Number of similar terminals1
Type of mountingSnap-on
Material Data
- Material
- Wemid
- UL 94 flammability rating
- V-0
Colourdark beige
Safety Note
- Safety notice
- Safety Information
Classifications
- ETIM 6.0
- EC000899
- eClass 9.0
- 27-14-11-16
- eClass 10.0
- 27-14-11-16
ETIM 7.0EC000899
eClass 9.127-14-11-16
UNSPSC30-21-18-11
System Specifications
- Version
- Screw connection, Fuse isolator, for screwable cross-connection, One end without connector
- Number of potentials
- 1
- Number of clamping points per level
- 2
- Levels cross-connected internally
- No
- Rail
- TS 35
- PE function
- No
End cover plate requiredYes
Number of levels1
Number of potentials per tier1
PE connectionNo
N-functionNo
PEN functionNo
Temperatures
- Storage temperature, max.
- 40 °C
- Storage temperature
- 10 °C...40 °C
- Continuous operating temp., max.
- 120 °C
Storage temperature, min.10 °C
Continuous operating temp., min.-50 °C
Conductors For Clamping (Additional Connection)
- Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
- 6 mm²
Rating Data
- Rated cross-section
- 6 mm²
- Rated voltage to adjoining terminal
- 500 V
- Current at maximum wires
- 6.3 A
- Volume resistance according to IEC 60947-7-x
- 0.78 mΩ
- Rated impulse withstand voltage
- 6 kV
Rated voltage250 V
Rated current6.3 A
StandardsIEC 60947-7-3
Power loss in accordance with IEC 60947-7-x1.31 W
Pollution severity3
Conductors For Clamping (Rated Connection)
- Blade size
- 0.8 x 4.0 mm
- Clamping range, min.
- 0.5 mm²
- Connection cross-section, stranded, max.
- 10 mm²
- Connection direction
- on side
- Number of connections
- 2
- Tightening torque, max.
- 1.6 Nm
- Torque level with DMS electric screwdriver
- 3
- Wire connection cross section AWG, max.
- AWG 8
- Wire connection cross section, finely stranded, max.
- 10 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
- 0.5 mm²
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.5 mm²
- Wire connection cross-section, solid core, max.
- 10 mm²
Clamping range, max.10 mm²
Clamping screwM 3.5
Connection cross-section, stranded, min.1.5 mm²
Gauge to IEC 60947-1A5
Stripping length12 mm
Tightening torque, min.0.8 Nm
Type of connectionScrew connection
Wire connection cross section AWG, min.AWG 20
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.6 mm²
Wire connection cross-section, finely stranded, min.0.5 mm²
Wire connection cross-section, solid core, min.0.5 mm²
Ul Rating Data
- Certificate No. (UR)
- E60693
- Conductor size Factory wiring min. (UR)
- 22 AWG
- Conductor size Field wiring min. (UR)
- 22 AWG
- Voltage size C (UR)
- 600 V
Conductor size Factory wiring max. (UR)8 AWG
Conductor size Field wiring max. (UR)8 AWG
Current size C (UR)16 A
