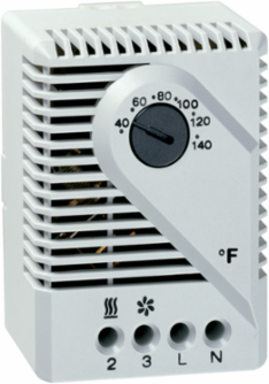

nVent Hoffman THERM16F Thermostat Controller, 2.64x1.97x1.50, 115V Fahrehneit, Lt Gray, Plastic
- MPN: THERM16F
- UPC: 783510359225
- PPN: HOF-THERM16F
CAD
$163.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mechanical thermostat for controlling filter fans and heaters. This Thermostat Controller, THERM16F item measures 2.64x1.97x1.50 inches with a material of Lt Gray, Plastic rated 115V Fahrehneit.
Features
- Mechanical thermostat for precise load control
- Snap-action contact switch for durable switching
- Bimetal sensor for reliable temperature sensing
- Clips for vertical mounting on 35 mm DIN rail (EN 60715)
- Wide operating temperature range (-4 to 176 °F)
- High switching capacity up to 10 A resistive and 4 A inductive loads
- Plastic housing with smooth matte finish for electrical insulation
- Protection rating IP20 suitable for indoor use
- Compact size (2.64 x 1.97 x 1.50 inches) for space-efficient installation
- Integrated resistor option to improve switch temperature difference
Documentation & Downloads
Specifications
Additional
- Voltage
- 115 V AC
- Switching Capacity NC
- 10 A resistive / 4 A inductive @ 115 V AC
- Operating Temperature Range
- -4 to 176 °F
- Height
- 67 mm
- Depth
- 38 mm
- Dimensions
- 2.64 x 1.97 x 1.50 in (67 x 50 x 38 mm)
- Finish
- Smooth Matte
- Mounting
- 35 mm DIN rail
- Sensor Type
- Bimetal
- Switch Type
- Snap-action contact
Switch Temperature Range40 to 140 °F
Switching Capacity NO5 A resistive / 2 A inductive @ 115 V AC
Storage Temperature Range-49 to 149 °F
Width50 mm
Weight0.16 lb (72 g)
MaterialPlastic
ColorLight Gray (RAL 7035)
Protection RatingIP20
Control TypeMechanical thermostat
Power Connection4-pole terminal, max torque 0.5 Nm, solid/stranded wire max 14 AWG (2.5 mm²)
