Schneider Electric ATV650U07N4U Altivar Process Variable Speed Drive 0.75kW 1hp 380-480V IP55
Schneider Electric ATV650U07N4U Altivar Process Variable Speed Drive 0.75kW 1hp 380-480V IP55
- MPN: ATV650U07N4U
- PPN: SCH-ATV650U07N4U
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1451.94/ EA
Description
Experience the advanced capabilities of the Altivar Process variable speed drive, designed by Schneider Electric to optimize motor performance in various industrial applications. With a power rating of 0.75 kW (1 hp) and a voltage range of 380 to 480V, this drive is built to handle demanding environments, boasting an IP55 enclosure that ensures protection against dust and water ingress. It features a robust set of functionalities, including a Safe Torque Off (STO) safety function, integrated EMC filters, and multiple communication protocols like Modbus TCP and serial, making it highly versatile for process and utilities applications. The drive's efficient design not only enhances operational reliability but also supports a wide range of motor types, from asynchronous to synchronous motors, ensuring seamless integration into your existing systems.
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus TCP, Modbus serial
Complementary Attributes
- Maximum Horse Power Rating
- 1 hp normal duty, 0.5 hp heavy duty
- Maximum Thdi
- <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12
- Ue Rated Operational Voltage
- 380...480 V 0.75 kW 1 hp normal duty, 380...480 V 0.37 kW 0.5 hp heavy duty
- Brake Chopper Integrated
- false
- Maximum Input Current Per Phase
- 1.5 A
- Maximum Output Voltage
- 480.0 V
- Maximum Acceleration Under Shock Impact During Operation
- 150 m/s² at 11 ms
- Maximum Acceleration Under Shock Load During Transport
- 150 m/s² at 11 ms
- Maximum Acceleration Under Vibratory Load During Storage
- 10 m/s² at 13...200 Hz
- Maximum Deflection Under Vibratory Load During Operation
- 1.5 mm at 2...13 Hz
- Maximum Deflection Under Vibratory Load During Transport
- 1.5 mm at 2...13 Hz
Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC, relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
Maximum Transient Current2.3 A 60 s heavy duty), 2.4 A 60 s normal duty)
Us Rated Supply Voltage380...480 V, 380...480 V - 15...10 %
Maximum Associated Fuse Rating4.0 A
Maximum Output Frequency500 kHz
Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
Maximum Acceleration Under Shock Load During Storage150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress During Operation10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load During Transport10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load During Storage1.5 mm at 2...13 Hz
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- Apparent Power
- 0.7 kVA 480 V heavy duty), 1.1 kVA 480 V normal duty)
- Connector Type
- RJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
- Electromagnetic Compatibility
- radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- Frequency Resolution
- analog input 0.012/50 Hz, display unit 0.1 Hz
- Line Current
- 1.3 A 480 V normal duty), 0.9 A 380 V heavy duty), 0.8 A 480 V heavy duty), 1.5 A 380 V normal duty)
- Local Signalling
- 3 LEDs (dual colour) for embedded communication status, 4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage, 3 LEDs for local diagnostic
- Motor Slip Compensation
- adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
- Option Card
- slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IP, slot A communication module, CANopen daisy chain RJ45, slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminals, slot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink, slot A communication module, Profibus DP V1
- Product Destination
- asynchronous motors, synchronous motors
- Sampling Duration
- 5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output, 2 ms +/- 0.5 ms DI1...DI4) - discrete input
- Switching Frequency
- 4...12 kHz with derating factor, 2...12 kHz adjustable
- Transmission Rate
- 10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
- Environmental Class During Storage
- class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
- Carbon Footprint Of The Distribution Phase A4
- 2.9205755712, 3 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 7 kg CO2 eq., 7.2904745167
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 1 896 kg CO2 eq., 1895.6707505291
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1508009EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1923
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier Id
- 2
- Function Option Id
- ADVANCED
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- 4 Quadrant Operation Possible
- false
- Base Load Current At High Overload
- 1.5 A
- Braking To Standstill
- by DC injection
- Computer Port
- true
- Design Of Frequency Changer
- U converter
- Enclosure Mounting
- wall mounted
- Housing Material
- plastic
- Marking
- CE
- Maximum Input Current Per Phase
- 1.5 A
- Mounting Mode
- wall mount
- Nominal Switching Frequency
- 4 kHz
- Number Of Hw Interfaces Industrial Ethernet
- 1
- Number Of Output Phases
- 3
- Operating Position
- vertical +/- 10 degree
- Overvoltage Category
- III
- Power Loss Per Device Current Dependent
- 50.0 W
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- process and utilities
- Quantity Per Set
- 1
- Refresh Time
- relay output R1, R2, R3)5 ms +/- 0.5 ms)
- Relative Symmetric Mains Voltage Tolerance
- 10 %
- Returnability
- Yes
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Frequency
- 50...60 Hz - 5...5 %
- Supporting Protocol For Asi
- false
- Supporting Protocol For Can
- true
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethernet Ip
- true
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- true
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Supporting Protocol For Tcp Ip
- true
- Total Lifecycle Carbon Footprint
- 2 093 kg CO2 eq.
- Type Of Cooling
- forced convection
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Application In Industrial Area Permitted
- true
- Emc Limit Value Complied
- true
- With Safety Function Safe Brake Management Sbc Sbt
- false
- With Safety Function Safe Operating Stop Sos
- false
- With Safety Function Safe Speed Monitor Ssm
- false
- With Safety Function Safe Torque Off Sto
- true
- With Safety Function Safely Limited Speed Sls
- false
- Warranty In Months
- 18
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Reference Lifetime In Y2
- 10
- Energy Model Manufacturing A1 A3 2
- Energy model used: Indonesia
- Energy Model Use B6 2
- Electricity Mix; AC; < 1kV; EU-27
- Offer Owner Code
- 190786
- Height Nominal
- 678 mm
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Asynchronous Motor Control Profileconstant torque standard, optimized torque mode, variable torque standard
Electrical Connectionline side screw terminal 4...6 mm², motor screw terminal 4...6 mm², control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
Emc Filterintegrated 50 m IEC 61800-3 category C2, integrated 150 m IEC 61800-3 category C3
Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
Linearity ErrorAO1, AO2 +/- 0.2 % analog output, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
Motor Power Kw0.75 kW normal duty), 0.37 kW heavy duty)
Noise Level52 dB 86/188/EEC, 52 dB
Permissible Temporary Current Boost1.5 x In 60 s heavy duty), 1.1 x In 60 s normal duty)
Protection Typesafe torque off drive, motor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
Supplyinternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection, internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
Synchronous Motor Control Profilesynchronous reluctance motor, permanent magnet motor
Vibration Resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
Environmental Class During Transportclass 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
Carbon Footprint Of The End Of Life Phase C1 To C42.984340949, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3184 kg CO2 eq., 184.1920035149
Certificate AgencyABS, CSA, TÜV, DNV-GL, UL, ATEX INERIS
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD Compacts
TraceabilityYes
Average Life Duration10 year(s)
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
Tier2
Function OptionAdvanced
Market SegmentationIndustrial
1 Phase Low Current Possiblefalse
Application In Domestic And Commercial Area Permittedfalse
Base Load Current At Low Overload2.2 A
Capacity Of Dc Link235.0 µF
Data Format8 bits, configurable odd, even or no parity
Device Short NameATV650
Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Isolationbetween power and control terminals
Maximum Associated Fuse Rating4.0 A
Method Of Accessslave Modbus TCP
Network Frequency50-60 Hz
Number Of Addresses1-247 Modbus serial
Number Of Hw Interfaces Serial Rs4851
Operating Element Presenttrue
Optical Interface Presentfalse
Phase3 phase
Power Loss Static Current Independent14.0 W
Product Or Component Typevariable speed drive
Prospective Line Isc50 kA
Range Of ProductAltivar Process ATV600
Regulation Loopadjustable PID regulator
Relative Symmetric Network Frequency Tolerance5 %
Safety FunctionSTO (safe torque off) SIL 3
Software VersionEIME v5.9.1
Supporting Protocol For As Interface Safety At Workfalse
Supporting Protocol For Bacnetfalse
Supporting Protocol For Data Highwayfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbustrue
Supporting Protocol For Profibustrue
Supporting Protocol For Profinet Iotrue
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Sustainable PackagingNo
Transmission FrameRTU
Type Of Polarizationno impedance
With Safety Function Safe Programmable Logicfalse
Supporting Protocol For Interbus Safetyfalse
Permitted Relative Humidity During Transportclass 2K5 according to EN 60721-3
With Safety Function Safe Direction Sdifalse
With Safety Function Safe Position Spfalse
With Safety Function Safe Stop 1 Ss1false
With Safety Function Safely Limited Position Slpfalse
With Sft Fct Safe Stop 2 Ssfalse
Pep CodeENVPEP1508009EN
Pep Verification Date2021-11-01
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 5,5 kW electric motors for fluid management and industrial applications in IP55 conditions, at 380V to 480V rated 3-phase voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh3210.715
Energy Model Installation A5 2Electricity Mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity Mix; AC; < 1kV; EU-27
Pn1
Width Nominal264 mm
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, 40-50 °C (with derating factor), -15-40 °C (without derating), -15-40 °C (without derating)
- Ip Degree Of Protection
- IP55, IP55IEC 60529, IP55IEC 61800-5-1
- Environmental Class During Operation
- class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP1508009EN
- Nema Degree Of Protection
- NEMA 12
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 5-95 % without condensation IEC 60068-2-3
- Permitted Relative Humidity During Storage
- class 1K5 according to EN 60721-3
- Pep Verification Date
- 2021-11-01
- Type Of Verification For The Pep
- Independent external review
Ambient Air Transport Temperature-40-70 °C, -40-70 °C
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Take BackNo
China Rohs RegulationX
Carbon Footprint2093.058145081
Circularity ProfileENVEOLI1508009EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Permitted Relative Humidity During Operationclass 3K5 according to EN 60721-3
Pep CodeENVPEP1508009EN
Pcr VersionPCR-ed3-EN-2015 04 02
General Attributes
- Phase
- 3 phase
- Range Of Product
- Altivar Process ATV600
Product Or Component Typevariable speed drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Analogue Output Type
- software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 10 bits, software-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
- Discrete Output Type
- relay outputs R2A, R2C 30 V DC 5000 mA, relay outputs R3A, R3C 30 V DC 5000 mA, relay outputs R1A, R1B, R1C 250 V AC 3000 mA, relay outputs R1A, R1B, R1C 30 V DC 3000 mA, relay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
- Analogue Output Number
- 2
- Maximum Output Frequency
- 500 kHz
- Nominal Output Current
- 2.2 A
- Output Voltage
- <= power supply voltage
- Speed Drive Output Frequency
- 0.1-500 Hz
Continuous Output Current1.5 A 4 kHz heavy duty, 2.2 A 4 kHz normal duty
Relay Output Typeconfigurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles
Discrete Output Number0
Maximum Output Voltage480.0 V
Nominal Output Power0.75 kW
Relay Output Number3
Surge Protection And Filtering Attributes
- Emc Filter
- integrated 50 m IEC 61800-3 category C2, integrated 150 m IEC 61800-3 category C3
Input Attributes
- Analogue Input Type
- AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
- Input Compatibility
- DI5, DI6 discrete input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2
- Discrete Input Number
- 8
- Number Of Input Phases
- 3
Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
Analogue Input Number3
Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Specifications
- Country of Origin
- China
Depth272 mm
Batteries & Runtime Attributes
- Removable Battery
- Yes
Downloads

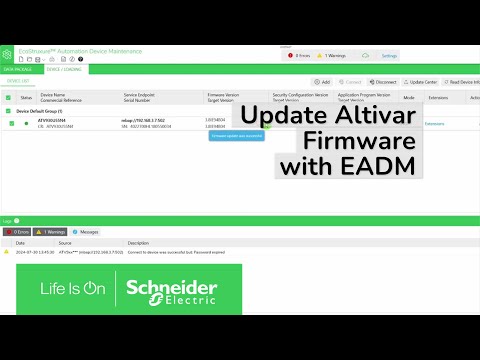

Video
Similar Products
CAD$1451.94/ EA
Loading add to cart quantity...
Need assistance finding the right item?
We can help! Connect with our Sales Team Today!
