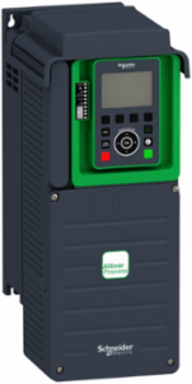

Altivar Process Variable Speed Drive, 10hp, 600V, IP21, 3 Phases

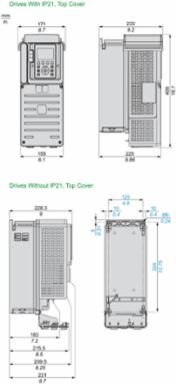

Altivar Process Variable Speed Drive, 10hp, 600V, IP21, 3 Phases
Schneider Electric

Schneider Electric ATV630U75S6X Altivar Process Variable Speed Drive, 10hp, 600V, IP21, 3 Phases

  • MPN: ATV630U75S6X
  • PPN: SCH-ATV630U75S6X
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2700.88

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features three built-in RJ45 communication ports as standard, 1 Ethernet port, and two serial ports. It works at a rated supply voltage of 600V AC. This drive saves up to 30% energy when on standby due to the innovative ‘‘Stop and Go " operation without additional costs. It is suitable for motors with a power rating of up to 10hp for applications requiring slight overload (up to 120%). It is suitable for motors with a power rating of up to 7.5hp for applications requiring significant overload (up to 150%). It weighs 5.5kg, and its dimensions are 171mm wide, 409mm high, and 233mm deep. This drive is focused on fluids management processing and energy saving; it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas, and food and beverage applications. Accessories (fan kit, graphic display terminal, etc.) and options (I/O expansion modules, communication modules, EMC input filters, etc.) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted vertically on a wall (+/- 10 °). This new concept of drives meets the major needs of processes and utilities regarding equipment efficiency and total cost of ownership by supporting energy management, asset management, and the process's overall performance.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    France, Indonesia, United States
    Depth233 mm

    Communications & Management Attributes

    Communication Port Protocol
    Modbus serial, Modbus TCP

    Complementary Attributes

    Maximum Horse Power Rating
    7.5 hp heavy duty, 10 hp 600 V normal duty
    Maximum Thdi
    <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12, <48 % with external line choke IEC 61000-3-12
    Maximum Input Current Per Phase
    9.9 A
    Maximum Output Voltage
    600.0 V
    Minimum Switching Current
    relay output R1, R2, R3 5 mA 24 V DC
    Maximum Switching Currentrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V ACrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DCrelay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC
    Brake Chopper Integratedfalse
    Maximum Output Frequency500 kHz
    Maximum Transient Current19.1 A 60 s heavy duty)14.9 A 60 s normal duty)

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Apparent Power
    7.6 kVA 480 V heavy duty), 10.3 kVA 600 V normal duty)
    Connector Type
    RJ45 on the remote graphic terminal)Modbus serial, RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    Electrical Connection
    motor screw terminal 6...10 mm² 10 AWG...8 AWG, line side screw terminal 4...6 mm² 12 AWG...10 AWGcontrol removable screw terminals 0.5...1.5 mm² 20 AWG...16 AWG
    Insulation Resistance
    > 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth> 1 MOhm 500 V DC for 1 minute to earth, > 1 MOhm 500 V DC for 1 minute to earth
    Linearity Error
    AO1, AO2 +/- 0.2 % analog output, AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    Motor Slip Compensation
    adjustable, can be suppressed, not available in permanent magnet motor law, automatic whatever the load
    Option Card
    slot A communication module, PROFINET, slot A communication module, DeviceNet, slot A communication module, Modbus TCP/EtherNet/IPslot A communication module, CANopen daisy chain RJ45slot A communication module, CANopen SUB-D 9, slot A communication module, CANopen screw terminalsslot A/slot B digital and analog I/O extension module, slot A/slot B output relay extension module, slot A communication module, Ethernet IP/Modbus TCP/MD-Link, communication module, BACnet MS/TP, communication module, Ethernet Powerlink, slot A communication module, Profibus DP V1
    Product Destination
    asynchronous motors, synchronous motors
    Sampling Duration
    5 ms +/- 1 ms DI5, DI6) - discrete input, 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input, 10 ms +/- 1 ms AO1) - analog output, 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    Synchronous Motor Control Profile
    synchronous reluctance motor, permanent magnet motor
    Certificate Agency
    ATEX INERIS, UL, ATEX zone 2/22, CSA, TÜV
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)
    class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    12.911232211162824, 13 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    151 kg CO2 eq., 150.50232029433505
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    2
    Function Option
    Advanced
    Market Segmentation
    Industrial
    1 Phase Low Current Possible
    false
    Application In Domestic And Commercial Area Permitted
    false
    Base Load Current At Low Overload
    13.5 A
    Capacity Of Dc Link
    750.0 µF
    Data Format
    8 bits, configurable odd, even or no parity
    Device Short Name
    ATV630
    Enclosure Mounting
    wall mounted
    Frequency Resolution
    analog input 0.012/50 Hzdisplay unit 0.1 Hz
    Isolation
    between power and control terminals
    Method Of Access
    slave Modbus TCP
    Mounting Mode
    wall mount
    Nominal Switching Frequency
    4 kHz
    Number Of Hw Interfaces Industrial Ethernet
    1
    Number Of Output Phases
    3
    Operating Position
    vertical +/- 10 degree
    Overvoltage Category
    III
    Phase
    3 phase
    Power Loss Static Current Independent
    32.0 W
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Specific Application
    process and utilities
    Quantity Per Set
    1
    Refresh Time
    relay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance
    10 %
    Returnability
    Yes
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Supply Frequency
    50...60 Hz - 5...5 %
    Supporting Protocol For Bacnet
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Foundation Fieldbus
    false
    Supporting Protocol For Knx
    false
    Supporting Protocol For Modbus
    true
    Supporting Protocol For Profibus
    true
    Supporting Protocol For Profinet Io
    true
    Supporting Protocol For Safetybus P
    false
    Supporting Protocol For Suconet
    false
    Switching Frequency
    4...12 kHz with derating factor2...12 kHz adjustable
    Transmission Frame
    RTU
    Type Of Polarization
    no impedance
    Vibration Resistance
    1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm peak to peak (f= 2-13 Hz) conforming to IEC 60068-2-6
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Functional-unit Description
    To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 15 kW for heavy duty electric motors for fluid management and industrial applications in IP21/UL type 1 conditions, at 600V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    Indonesia, ID
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    Recyclability Potential In %
    67
    Width Nominal
    171 mm
    Emc Limit Value (Complied)
    false
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    false
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    false
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8504404000
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profileconstant torque standard, optimized torque mode, variable torque standard
    Discrete And Process Manufacturingfood and beverage processing pumpfood and beverage processing fanwater and waste water electro submersible pump (ESP)water and waste water screw compressorwater and waste water fanfood and beverage processing other applicationmining mineral and metal fan, mining mineral and metal pump, oil and gas fan, water and waste water other applicationbuilding - HVAC screw compressor, food and beverage processing atomization, oil and gas electro submersible pump (ESP), oil and gas water injection pump, oil and gas jet fuel pump, oil and gas compressor for refinery, water and waste water centrifuge pump, water and waste water positive displacement pump, water and waste water screw pump, water and waste water lobe compressor, water and waste water compressor centrifugal, water and waste water conveyor, water and waste water mixer
    Electromagnetic Compatibilityradiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
    Line Current11.9 A 480 V normal duty), 10.5 A 380 V heavy duty), 9.2 A 480 V heavy duty)9.9 A 600 V normal duty)
    Local Signalling3 LEDs (dual colour) for embedded communication status4 LEDs (dual colour) for communication module status, 1 LED (red) for presence of voltage, 3 LEDs for local diagnostic
    Noise Level52 dB 86/188/EEC, 56 dB
    Power Dissipation In Wforced convection 44 W 380 V 4 kHz, natural convection 105 W 600 V 4 kHz
    Protection Typesafe torque off drivemotor phase break drivethermal protection motor, safe torque off motor, motor phase break motorthermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Supplyinternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protectioninternal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection, external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection
    Transmission Rate10, 100 Mbits, 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    [Ue] Rated Operational Voltage600 V 10 hp normal duty, 600 V 5.5 kW 7.5 hp heavy duty
    Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]1.7148275559889348, 2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]2 kg CO2 eq., 2.0930928804147704
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]3 734 kg CO2 eq., 3734.050864216965
    Local Publishable Date2026-03-26
    Stocking FlagN
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1707007EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1926
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsYES_SSI2Yes
    Tier Id2
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    4 Quadrant Operation Possiblefalse
    Base Load Current At High Overload9.5 A
    Braking To Standstillby DC injection
    Computer Porttrue
    Design Of Frequency ChangerU converter
    Emc Filterwithout EMC filter
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Housing Materialplastic
    Maximum Input Current Per Phase9.9 A
    Motor Power Kw5.5 kW heavy duty)
    Network Frequency50-60 Hz
    Number Of Addresses1-247 Modbus serial
    Number Of Hw Interfaces Serial Rs4851
    Operating Element Presenttrue
    Optical Interface Presentfalse
    Permissible Temporary Current Boost1.5 x In 60 s heavy duty)1.1 x In 60 s normal duty)
    Power Loss Per Device Current Dependent203.0 W
    Power Range7-11 kW 480-500 V 3 phase
    Product Or Component Typevariable speed drive
    Prospective Line Isc70 kA
    Range Of ProductAltivar Process ATV600
    Regulation Loopadjustable PID regulator
    Relative Symmetric Network Frequency Tolerance5 %
    Safety FunctionSTO (safe torque off) SIL 3
    Software Versionv6.1
    Supporting Protocol For Asifalse
    Supporting Protocol For Cantrue
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Interbusfalse
    Supporting Protocol For Lonfalse
    Supporting Protocol For Other Bus Systemsfalse
    Supporting Protocol For Profinet Cbatrue
    Supporting Protocol For Profisafefalse
    Supporting Protocol For Sercosfalse
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint3 901 kg CO2 eq.
    Type Of Coolingforced convection
    UpdatabilityUpgradeable through digital modules
    Volume Of Cooling Air103 m3/h
    With Safety Function Safe Programmable Logicfalse
    Pep CodeENVPEP1707007EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Height Nominal409 mm
    [Us] Rated Supply Voltage600 V600 V - 15...10 %
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)false
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)8.8 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C50-60 °C (with derating factor), -15-50 °C (without derating), -15-50 °C (without derating)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    3901.2723371588663
    Environmental Disclosure
    ENVPEP1707007EN
    Ip Degree Of Protection
    IP21IP20IEC 60529IP21IEC 61800-5-1
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP1707007EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1707007EN
    Eu Rohs DirectiveCompliant By Exemption
    Nema Degree Of ProtectionNEMA 1
    Packaging Without Single Use PlasticYes
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV600
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bitssoftware-configurable current AQ1, AQ2 0...20 mA 10 bitssoftware-configurable current DQ-, DQ+ 30 V DC, software-configurable current DQ-, DQ+ 100 mA
    Output Voltage
    <= power supply voltage, <= power supply voltage
    Analogue Output Number
    2
    Discrete Output Number
    0
    Maximum Output Voltage
    600.0 V
    Nominal Output Power
    7.5 kW
    Speed Drive Output Frequency
    0.1-500 Hz
    Discrete Output Typerelay outputs R2A, R2C 30 V DC 5000 mArelay outputs R3A, R3C 30 V DC 5000 mArelay outputs R1A, R1B, R1C 250 V AC 3000 mArelay outputs R1A, R1B, R1C 30 V DC 3000 mArelay outputs R2A, R2C 250 V AC 5000 mA, relay outputs R3A, R3C 250 V AC 5000 mA
    Relay Output Typeconfigurable relay logic R2 sequence relay NO 100000 cycles, configurable relay logic R3 sequence relay NO 100000 cycles, configurable relay logic R1 fault relay NO/NC 100000 cycles
    Continuous Output Current12.7 A 4 kHz heavy duty13.5 A 4 kHz normal duty
    Maximum Output Frequency500 kHz
    Nominal Output Current13.5 A
    Relay Output Number3

    Surge Protection And Filtering Attributes

    Emc Filter
    without EMC filter

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits, AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Input Compatibility
    DI5, DI6 discrete input level 1 PLC IEC 65A-68STOA, STOB discrete input level 1 PLC IEC 61131-2, DI1...DI6 discrete input level 1 PLC IEC 61131-2
    Discrete Input Number
    8
    Number Of Input Phases
    3
    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V, negative logic (sink) DI1...DI8), > 16 V, < 10 V, 16 preset speeds
    Analogue Input Number3
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

    Batteries & Runtime Attributes

    Removable Battery
    Yes
    Loading video…

    Similar Products

    Loading carousel layout...

    CAD$2700.88/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
