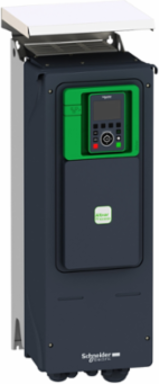

Variable Speed Drive 0.75 kW (1 hp) 380-480V IP55
Schneider Electric

Schneider Electric ATV950U07N4U Variable Speed Drive 0.75 kW (1 hp) 380-480V IP55

  • MPN: ATV950U07N4U
  • PPN: SCH-ATV950U07N4U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1597.58

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    The Altivar Process ATV900 series variable speed drive from Schneider Electric is engineered for industrial applications, providing robust performance and advanced control capabilities. With a power rating of 0.75 kW (1 hp) and compatibility with 380 to 480V systems, this drive excels in optimizing motor performance while ensuring energy efficiency. Designed to operate in challenging environments, it boasts an IP55 rating for dust and water resistance, making it suitable for various industrial settings. Featuring a range of safety functions, including Safe Torque Off and Safely Limited Speed, the ATV900 ensures reliable operation while protecting both equipment and personnel. Its flexible communication options, including Ethernet IP and Modbus TCP, facilitate seamless integration into existing automation systems. With a compact design and a variety of mounting options, this variable speed drive is not only functional but also easy to install, making it an excellent choice for enhancing operational efficiency in your industrial processes.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China
    Depth272 mm

    Communications & Management Attributes

    Communication Port Protocol
    EtherNet/IP, Modbus serial, Modbus TCP

    Complementary Attributes

    Maximum Switching Current
    relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V AC, relay output R1 resistive, cos phi = 1 3 A 30 V DC, relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
    Maximum Transient Current
    2.6 A 60 s normal duty), 2.3 A 60 s heavy duty)
    Us Rated Supply Voltage
    380...480 V, 380...480 V - 15...10 %
    Maximum Associated Fuse Rating
    4.0 A
    Maximum Output Frequency
    599 Hz
    Minimum Switching Current
    relay output R1, R2, R3 5 mA 24 V DC
    Maximum Acceleration Under Shock Load During Storage
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress During Operation
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load During Transport
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load During Storage
    1.5 mm at 2...13 Hz
    Maximum Thdi<48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12
    Ue Rated Operational Voltage380...480 V 0.75 kW normal duty, 380...480 V 0.37 kW heavy duty
    Brake Chopper Integratedtrue
    Maximum Input Current Per Phase1.5 A
    Maximum Output Voltage480.0 V
    Maximum Acceleration Under Shock Impact During Operation150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load During Transport150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load During Storage10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load During Operation1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load During Transport1.5 mm at 2...13 Hz

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8, SI
    Apparent Power
    1.1 kVA 480 V normal duty), 0.7 kVA 480 V heavy duty)
    Connector Type
    2 RJ45, 1 RJ45
    Electromagnetic Compatibility
    electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Encoder Protocol
    1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
    Linearity Error
    AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
    Motor Slip Compensation
    automatic whatever the load, adjustable, can be suppressed, not available in permanent magnet motor law
    Number Of Addresses
    1-247, 1-247 Modbus serial
    Protection Type
    safe torque off drive, motor phase break drivethermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Switching Frequency
    2...16 kHz adjustable, 4...16 kHz with derating factor
    Transmission Rate
    10/100 Mbit/s Ethernet IP/Modbus TCP, 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
    Environmental Class During Storage
    class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase A4
    2.9205755712, 3 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A5
    7 kg CO2 eq., 7.2904745167
    Carbon Footprint Of The Use Phase B2 B3 B4 B6
    1 885 kg CO2 eq., 1884.809381916
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Field Service Division
    IDIBS
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1508009EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1923
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier Id
    2
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    true
    Assembly Style
    enclosed
    Base Load Current At Low Overload
    2.2 A
    Computer Port
    true
    Device Application
    Industrial Application
    Housing Material
    plastic
    Marking
    CE
    Maximum Input Current Per Phase
    1.5 A
    Mounting Mode
    wall mount
    Nominal Switching Frequency
    4 kHz
    Number Of Hw Interfaces Serial Rs485
    1
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    3 phase
    Power Loss Static Current Independent
    14.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    50 kA
    Range Of Product
    Altivar Process ATV900
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Software Version
    EIME v5.9.1
    Supporting Protocol For Asi
    false
    Supporting Protocol For Can
    true
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Ethernet Ip
    true
    Supporting Protocol For Interbus
    false
    Supporting Protocol For Lon
    false
    Supporting Protocol For Other Bus Systems
    false
    Supporting Protocol For Profinet Cba
    true
    Supporting Protocol For Profisafe
    false
    Supporting Protocol For Sercos
    false
    Supporting Protocol For Tcp Ip
    true
    Total Lifecycle Carbon Footprint
    2 082 kg CO2 eq.
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permitted
    true
    Emc Limit Value Complied
    true
    With Safety Function Safe Brake Management Sbc Sbt
    true
    With Safety Function Safe Operating Stop Sos
    false
    With Safety Function Safe Speed Monitor Ssm
    false
    With Safety Function Safe Torque Off Sto
    true
    With Safety Function Safely Limited Speed Sls
    true
    Warranty In Months
    18
    Database Version
    2016-11
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity Mix; AC; < 1kV; EU-27
    Height Nominal
    678 mm
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profileconstant torque standard, variable torque standard, optimized torque mode
    Data Format8 bits, configurable odd, even or no parity Modbus serial, 8 bits, configurable odd, even or no parity
    Emc Filterintegrated, with EMC plate option
    Line Current1.5 A 380 V normal duty), 0.9 A 380 V heavy duty), 1.3 A 480 V normal duty), 0.8 A 480 V heavy duty)
    Motor Power Kw0.75 kW normal duty, 0.37 kW heavy duty
    Noise Level52 dB 86/188/EEC, 52 dB
    Product Destinationsynchronous motors, asynchronous motors
    Sampling Duration2 ms +/- 0.5 ms DI1...DI8) - discrete input, 5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms AQ1, AQ2) - analog output
    Synchronous Motor Control Profilepermanent magnet motor, synchronous reluctance motor
    Type Of Polarizationno impedance, no impedance Modbus serial
    Environmental Class During Transportclass 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End Of Life Phase C1 To C42.984340949, 3 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase A1 To A3184 kg CO2 eq., 184.1920035149
    Certificate AgencyABS, UL, ATEX INERIS, TÜV, DNV-GL, CSA, Bureau Veritas
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee Product Category4
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At High Overload1.5 A
    Braking To Standstillby DC injection
    Design Of Frequency ChangerU converter
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
    Isolationbetween power and control terminals
    Maximum Associated Fuse Rating4.0 A
    Method Of Accessslave Modbus TCP
    Network Frequency50-60 Hz
    Number Of Hw Interfaces Industrial Ethernet2
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Power Loss Per Device Current Dependent50.0 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Specific Applicationprocess for industrial
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Supporting Protocol For As Interface Safety At Workfalse
    Supporting Protocol For Bacnetfalse
    Supporting Protocol For Data Highwayfalse
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Foundation Fieldbusfalse
    Supporting Protocol For Knxfalse
    Supporting Protocol For Modbustrue
    Supporting Protocol For Profibustrue
    Supporting Protocol For Profinet Iotrue
    Supporting Protocol For Safetybus Pfalse
    Supporting Protocol For Suconetfalse
    Sustainable PackagingNo
    Transmission FrameRTU
    With Safety Function Safe Programmable Logicfalse
    Supporting Protocol For Interbus Safetyfalse
    Permitted Relative Humidity During Transportclass 2K5 according to EN 60721-3
    With Safety Function Safe Direction Sdifalse
    With Safety Function Safe Position Spfalse
    With Safety Function Safe Stop 1 Ss1true
    With Safety Function Safely Limited Position Slpfalse
    With Sft Fct Safe Stop 2 Ssfalse
    Pep CodeENVPEP1508009EN
    Pep Verification Date2021-11-01
    Type Of Verification For The PepIndependent external review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine s operating point for 5,5 kW electric motors for fluid management and industrial applications in IP55 conditions, at 380V to 480V rated 3-phase voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime, In Kwh3192.319
    Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
    Width Nominal264 mm

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, -15-50 °C, -15-40 °C (without derating), -15-40 °C (without derating), 40-50 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Environmental Class During Operation
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI1508009EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Permitted Relative Humidity During Storage
    class 1K5 according to EN 60721-3
    Pep Verification Date
    2021-11-01
    Type Of Verification For The Pep
    Independent external review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint2082.1967764678
    Environmental DisclosureENVPEP1508009EN
    Ip Degree Of ProtectionIP55
    Packaging Without Single Use PlasticNo
    Permitted Relative Humidity During Operationclass 3K5 according to EN 60721-3
    Pep CodeENVPEP1508009EN
    Pcr VersionPCR-ed3-EN-2015 04 02

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV900
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
    Discrete Output Type
    logic output DQ+ 0-1 kHz <= 30 V DC 100 mA, programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
    Analogue Output Number
    2
    Maximum Output Frequency
    599 Hz
    Nominal Output Current
    2.2 A
    Relay Output Number
    3
    Continuous Output Current2.2 A 4 kHz normal duty, 1.5 A 4 kHz heavy duty
    Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
    Discrete Output Number2
    Maximum Output Voltage480.0 V
    Nominal Output Power0.75 W

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated, with EMC plate option

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
    Input Compatibility
    DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Logic
    16 preset speeds
    Number Of Input Phases
    3
    Discrete Input TypeDI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
    Analogue Input Number3
    Discrete Input Number10

    Batteries & Runtime Attributes

    Removable Battery
    Yes

    Similar Products

    Loading carousel layout...

    CAD$1597.58/ EA

    Loading add to cart quantity...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
