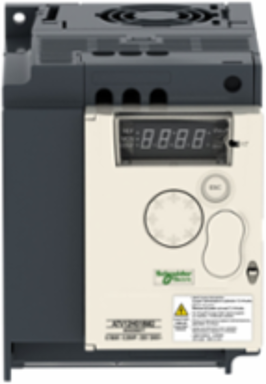

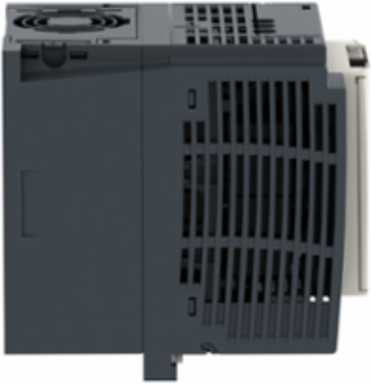

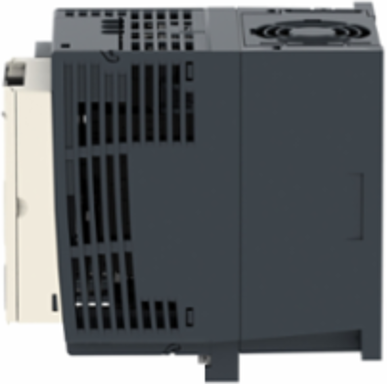

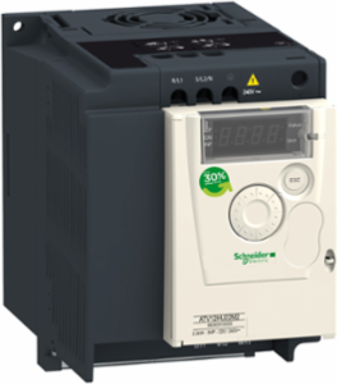

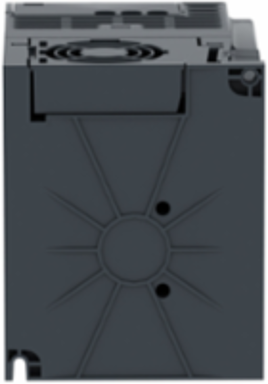

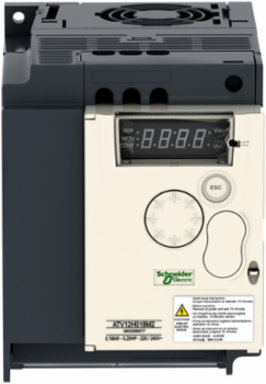

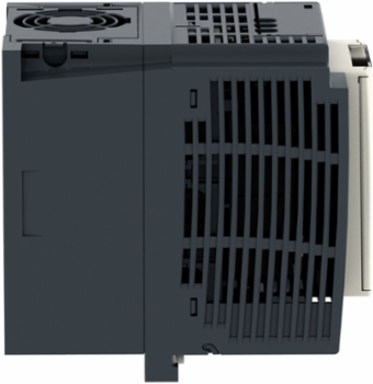

Schneider Electric ATV12HU15M2 Altivar 12 Variable Speed Drive 1.5kW 2hp 200-240V 1 Phase with Heat Sink
- MPN: ATV12HU15M2
- PPN: SCH-ATV12HU15M2
CAD
$515.35
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, United States |
|---|
| Depth | 156.2 mm |
|---|
Communications & Management Attributes
| Communication Service | read holding registers (03) 29 words, write single register (06) 29 wordswrite multiple registers (16) 27 wordsread/write multiple registers (23) 4/4 words, read device identification (43) |
|---|
| Communication Port Protocol | Modbus |
|---|
Complementary Attributes
| Brake Chopper Integrated | false |
|---|---|
| Maximum Horse Power Rating | 2 hp |
| Maximum Output Frequency | 4 kHz |
| Maximum Transient Current | 11.2 A 60 s heavy duty)12.4 A 2 s heavy duty) |
| Maximum Associated Fuse Rating | 12.5 A |
|---|---|
| Maximum Input Current Per Phase | 14.9 A |
| Maximum Output Voltage | 240 V |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Asynchronous Motor Control Profile | sensorless flux vector control, quadratic voltage/frequency ratio, voltage/frequency ratio (V/f) |
| Electromagnetic Emission | radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable, conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m, conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 4...16 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <10 m |
| Motor Slip Compensation | adjustable, preset in factory |
| Transmission Rate | 9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s |
| Certificate Agency | NOM, CSA, C-tick, UL, GOST, RCM, KC |
| Environmental Class (During Storage) | class 1C3 according to IEC 60721-3-1, class 1S2 according to IEC 60721-3-1 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| 4 Quadrant Operation Possible | false |
| Application In Domestic And Commercial Area Permitted | false |
| Base Load Current At High Overload | 7.5 A |
| Capacity Of Dc Link | 1410.0 µF |
| Connector Type | 1 RJ45 |
| Design Of Frequency Changer | U converter |
| Frequency Resolution | analog input converter A/D, 10 bitsdisplay unit 0.1 Hz |
| Insulation | electrical between power and control |
| Marking | CE |
| Maximum Input Current Per Phase | 14.9 A |
| Motor Power Kw | 1.5 kW |
| Network Frequency | 50-60 Hz |
| Nominal Switching Frequency | 4 kHz |
| Number Of Hw Interfaces Serial Rs485 | 1 |
| Operating Element Present | true |
| Optical Interface Present | false |
| Phase | 1 phase |
| Power Loss Per Device Current Dependent | 72.0 W |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Specific Application | simple machine |
| Quantity Per Set | set of 1 |
| Regulation Loop | adjustable PID regulator |
| Relative Symmetric Network Frequency Tolerance | 5 % |
| Sampling Duration | 20 ms +/- 1 ms logic input10 ms analogue input |
| Speed Range | 1-20 |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Can | false |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | false |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | Yes |
| Tightening Torque | 1.2 N.m |
| Transient Overtorque | 150-170 % of nominal motor torque depending on drive rating and type of motor |
| Type Of Polarization | no impedance |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Application In Industrial Area Permitted | true |
| Supply Voltage Num | 200...240 V |
| Pep Code | ENVPEP090202EN |
| Width Nominal | 105 mm |
| Emc Limit Value (Complied) | true |
| Maximum Acceleration Under Shock Load (During Storage) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibrational Stress (During Operation) | 10 m/s² at 13...200 Hz |
| Maximum Acceleration Under Vibratory Load (During Transport) | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load (During Storage) | 1.5 mm at 2...13 Hz |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | false |
| Supporting Protocol For Tcp/Ip | false |
| With Safety Function Safe Direction (Sdi) | false |
| With Safety Function Safe Position (Sp) | false |
| With Safety Function Safe Stop 1 (Ss1) | false |
| With Safety Function Safely Limited Position (Slp) | false |
| With Sft Fct Safe Stop 2 (Ss2) | false |
| Package Weight(Lbs) | 1.718 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Electromagnetic Compatibility | electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2immunity to conducted disturbances level 3 conforming to IEC 61000-4-6radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3surge immunity test level 3 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11 |
| Linearity Error | +/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input |
| Protection Type | line supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, against input phase loss in three-phase, thermal motor protection via the drive by continuous calculation of I²t |
| Vibration Resistance | 1 gn 13-200 Hz)IEC 60068-2-6, 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6 |
| Environmental Class (During Operation) | class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3 |
| Environmental Class (During Transport) | class 2C3 according to IEC 60721-3-2, class 2S1 according to IEC 60721-3-2 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD Compacts |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI100204EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1923 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | YES_SSI2Yes |
| Tier | 1 |
| Function Option | Standard |
| 1 Phase Low Current Possible | false |
| Apparent Power | 3.6 kVA 240 V heavy duty) |
| Assembly Style | with heat sink |
| Braking To Standstill | by DC injection |
| Computer Port | true |
| Data Format | 8 bits, configurable odd, even or no parity |
| Emc Filter | integrated |
| Housing Material | plastic |
| Line Current | 17.8 A 100 V heavy duty)14.9 A 120 V heavy duty) |
| Maximum Associated Fuse Rating | 12.5 A |
| Method Of Access | server Modbus serial |
| Mounting Mode | cabinet mount |
| Noise Level | 45 dB |
| Number Of Addresses | 1-247 |
| Number Of Output Phases | 3 |
| Operating Position | vertical +/- 10 degree |
| Overvoltage Category | class III |
| Power Dissipation In W | forced cooling 72.0 W |
| Power Loss Static Current Independent | 11.0 W |
| Product Or Component Type | variable speed drive |
| Prospective Line Isc | 1 kA |
| Range Of Product | Altivar 12 |
| Relative Symmetric Mains Voltage Tolerance | 10 % |
| Returnability | Yes |
| Shock Resistance | 15 gn 11 ms IEC 60068-2-27 |
| Supply Frequency | 50/60 Hz +/- 5 % |
| Supporting Protocol For Bacnet | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | false |
| Supporting Protocol For Profinet Io | false |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Switching Frequency | 2...16 kHz adjustable4...16 kHz with derating factor |
| Time Constant | 20 ms +/- 1 ms for reference change |
| Transmission Frame | RTU |
| Volume Of Cooling Air | 16 m3/h |
| With Safety Function Safe Programmable Logic | false |
| Parts Quantity | set of 1 |
| Motor Power Kw 10 N Motor Power Kw | 1.5 kW |
| Height Nominal | 142 mm |
| [Us] Rated Supply Voltage | 200...240 V200...240 V - 15...10 % |
| Maximum Acceleration Under Shock Impact (During Operation) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load (During Transport) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibratory Load (During Storage) | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load (During Operation) | 1.5 mm at 2...13 Hz |
| Maximum Deflection Under Vibratory Load (During Transport) | 1.5 mm at 2...13 Hz |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| With Safety Function Safe Brake Management (Sbc/Sbt) | false |
| With Safety Function Safe Operating Stop (Sos) | false |
| With Safety Function Safe Speed Monitor (Ssm) | false |
| With Safety Function Safe Torque Off (Sto) | false |
| With Safety Function Safely Limited Speed (Sls) | false |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504404000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -10-50 °C without derating, -10-50 °C without derating, -10-60 °C, -10-60 °C, -10-50 °C without derating, -10-50 °C without derating50-60 °C with current derating 2.2 % per °C |
|---|---|
| Ambient Air Transport Temperature | -25-70 °C, -25-70 °C |
| Relative Humidity | 5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3 |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP090202EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP090202EN |
| Ambient Air Temperature For Storage | -25-70 °C, -25-70 °C |
|---|---|
| Operating Altitude | > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating |
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI100204EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Altivar 12 |
| Product Or Component Type | variable speed drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Analogue Output Number | 1 |
|---|---|
| Discrete Output Number | 2 |
| Maximum Output Voltage | 240 V |
| Nominal Output Power | 1500.0 W |
| Speed Drive Output Frequency | 0.5-400 Hz |
| Continuous Output Current | 7.5 A 4 kHz |
|---|---|
| Maximum Output Frequency | 4 kHz |
| Nominal Output Current | 7.5 A |
| Relay Output Number | 1 |
Surge Protection And Filtering Attributes
| Emc Filter | integrated |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Number | 1 |
|---|---|
| Number Of Input Phases | 3 |
| Discrete Input Number | 4 |
|---|
