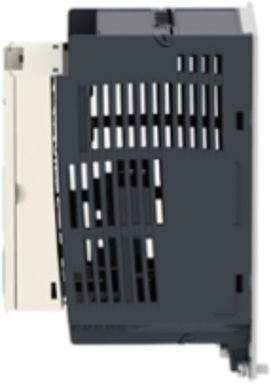

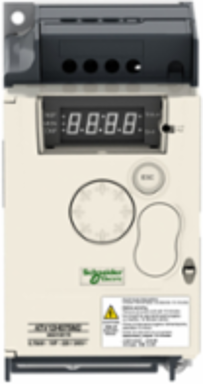

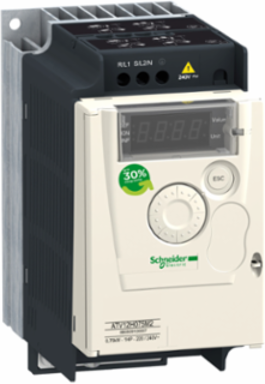

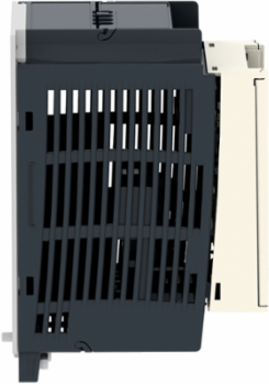

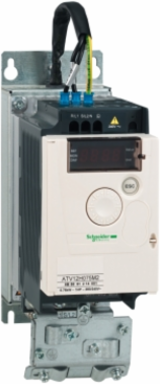

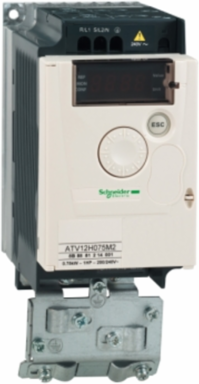

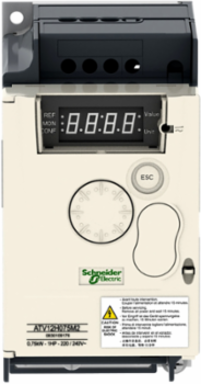

Schneider Electric ATV12H075M2 Altivar 12 Variable Speed Drive 0.75kW 1hp 200-240V 2-Wire RS 485

MPN: ATV12H075M2
PPN: SCH-ATV12H075M2

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$405.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

Features

Featuring one of the smallest footprints in its class, this 1-horsepower (0.75kW) drive is engineered for high-density mounting. Its slim profile allows you to shrink the size of your electrical enclosures or add more automation components to existing panels, directly lowering your total hardware and installation costs.
Built with a high-performance integrated heatsink and optimized airflow, the ATV12 operates reliably in ambient temperatures up to 40 C without derating. This thermal resilience prevents unexpected thermal tripping and equipment downtime, ensuring your high-torque applications remain stable even in poorly ventilated or high-heat manufacturing zones.
This versatile VFD converts standard single-phase 200...240V AC input into the 3-phase output required by professional-grade induction motors. It provides a cost-effective solution for small workshops and facilities without 3-phase utility service, offering precise speed control and soft-start capabilities that extend motor life and reduce mechanical wear.
Equipped with an integrated RJ45 port for Modbus serial communication, this drive integrates seamlessly into PLC-controlled environments and SCADA systems. This connectivity allows for real-time remote monitoring, rapid diagnostic feedback, and centralized control, making it a future-proof choice for smart factory initiatives and Industrial IoT (IIoT) applications.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Singapore, United States

Depth	131.2 mm

Communications & Management Attributes

Communication Service	read holding registers (03) 29 words, write single register (06) 29 wordswrite multiple registers (16) 27 wordsread/write multiple registers (23) 4/4 words, read device identification (43)

Communication Port Protocol	Modbus

Complementary Attributes

Brake Chopper Integrated	false
Maximum Horse Power Rating	1 hp
Maximum Output Frequency	4 kHz
Maximum Transient Current	6.3 A 60 s heavy duty)6.9 A 2 s heavy duty)

Maximum Associated Fuse Rating	12.5 A
Maximum Input Current Per Phase	8.5 A
Maximum Output Voltage	240 V

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Asynchronous Motor Control Profile	quadratic voltage/frequency ratio, voltage/frequency ratio (V/f), sensorless flux vector control
Electromagnetic Emission	radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable, conducted emissions with integrated EMC filter environment 1 category C1 IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m, conducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2...12 kHz shielded motor cable <5 mconducted emissions with integrated EMC filter environment 1 category C2 IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m, conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <20 m, conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <50 m, conducted emissions with additional EMC filter environment 2 category C3 IEC 61800-3 4...12 kHz shielded motor cable <50 m
Motor Slip Compensation	preset in factory, adjustable
Transmission Rate	9.6 kbit/s, 19.2 kbit/s, 38.4 kbit/s
Certificate Agency	NOM, CSA, C-tick, UL, GOST, RCM, KC
Environmental Class (During Storage)	class 1C3 according to IEC 60721-3-1, class 1S2 according to IEC 60721-3-1
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
4 Quadrant Operation Possible	false
Application In Domestic And Commercial Area Permitted	false
Base Load Current At High Overload	4.2 A
Capacity Of Dc Link	780.0 µF
Connector Type	1 RJ45
Design Of Frequency Changer	U converter
Frequency Resolution	analog input converter A/D, 10 bitsdisplay unit 0.1 Hz
Insulation	electrical between power and control
Marking	CE
Maximum Input Current Per Phase	8.5 A
Motor Power Kw	0.75 kW
Network Frequency	50-60 Hz
Nominal Switching Frequency	4 kHz
Number Of Hw Interfaces Serial Rs485	1
Operating Element Present	true
Optical Interface Present	false
Phase	1 phase
Power Loss Per Device Current Dependent	44.0 W
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	simple machine
Quantity Per Set	set of 1
Regulation Loop	adjustable PID regulator
Relative Symmetric Network Frequency Tolerance	5 %
Sampling Duration	20 ms +/- 1 ms logic input10 ms analogue input
Speed Range	1-20
Supporting Protocol For Asi	false
Supporting Protocol For Can	false
Supporting Protocol For Devicenet Safety	false
Supporting Protocol For Interbus	false
Supporting Protocol For Lon	false
Supporting Protocol For Other Bus Systems	false
Supporting Protocol For Profinet Cba	false
Supporting Protocol For Profisafe	false
Supporting Protocol For Sercos	false
Sustainable Packaging	Yes
Tightening Torque	0.8 N.m
Transient Overtorque	150-170 % of nominal motor torque depending on drive rating and type of motor
Type Of Polarization	no impedance
With Safety Function Safe Programmable Logic	false
Parts Quantity	set of 1
Motor Power Kw 10 N Motor Power Kw	0.75 kW
Height Nominal	143 mm
[Us] Rated Supply Voltage	200...240 V200...240 V - 15...10 %
Maximum Acceleration Under Shock Impact (During Operation)	150 m/s² at 11 ms
Maximum Acceleration Under Shock Load (During Transport)	150 m/s² at 11 ms
Maximum Acceleration Under Vibratory Load (During Storage)	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Operation)	1.5 mm at 2...13 Hz
Maximum Deflection Under Vibratory Load (During Transport)	1.5 mm at 2...13 Hz
Supporting Protocol For Data-highway	false
Supporting Protocol For Interbus-safety	false
With Safety Function Safe Brake Management (Sbc/Sbt)	false
With Safety Function Safe Operating Stop (Sos)	false
With Safety Function Safe Speed Monitor (Ssm)	false
With Safety Function Safe Torque Off (Sto)	false
With Safety Function Safely Limited Speed (Sls)	false
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504404000

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
Market Segmentation	Commercial, Industrial
Electromagnetic Compatibility	electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2immunity to conducted disturbances level 3 conforming to IEC 61000-4-6radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3surge immunity test level 3 conforming to IEC 61000-4-5voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Linearity Error	+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input+/- 0.3 % of maximum value analogue input, +/- 0.3 % of maximum value analogue input
Protection Type	line supply overvoltage, line supply undervoltage, overcurrent between output phases and earth, overheating protection, short-circuit between motor phases, against input phase loss in three-phase, thermal motor protection via the drive by continuous calculation of I²t
Vibration Resistance	1 gn 13-200 Hz)IEC 60068-2-6, 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Environmental Class (During Operation)	class 3C3 according to IEC 60721-3-3, class 3S2 according to IEC 60721-3-3
Environmental Class (During Transport)	class 2C3 according to IEC 60721-3-2, class 2S1 according to IEC 60721-3-2
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	Variable speed drive - VSD Compacts
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI100204EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1923
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	YES_SSI2Yes
Tier	1
Function Option	Standard
1 Phase Low Current Possible	false
Apparent Power	2.0 kVA 240 V heavy duty)
Assembly Style	with heat sink
Braking To Standstill	by DC injection
Computer Port	true
Data Format	8 bits, configurable odd, even or no parity
Emc Filter	integrated
Housing Material	plastic
Line Current	10.2 A 100 V heavy duty)8.5 A 120 V heavy duty)
Maximum Associated Fuse Rating	12.5 A
Method Of Access	server Modbus serial
Mounting Mode	cabinet mount
Noise Level	0 dB
Number Of Addresses	1-247
Number Of Output Phases	3
Operating Position	vertical +/- 10 degree
Overvoltage Category	class III
Power Dissipation In W	natural 44.0 W
Power Loss Static Current Independent	8.0 W
Product Or Component Type	variable speed drive
Prospective Line Isc	1 kA
Range Of Product	Altivar 12
Relative Symmetric Mains Voltage Tolerance	10 %
Returnability	Yes
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Supply Frequency	50/60 Hz +/- 5 %
Supporting Protocol For Bacnet	false
Supporting Protocol For Devicenet	false
Supporting Protocol For Foundation Fieldbus	false
Supporting Protocol For Knx	false
Supporting Protocol For Modbus	true
Supporting Protocol For Profibus	false
Supporting Protocol For Profinet Io	false
Supporting Protocol For Safetybus P	false
Supporting Protocol For Suconet	false
Switching Frequency	2...16 kHz adjustable4...16 kHz with derating factor
Time Constant	20 ms +/- 1 ms for reference change
Transmission Frame	RTU
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Application In Industrial Area Permitted	true
Supply Voltage Num	200...240 V
Pep Code	ENVPEP090201EN
Width Nominal	72 mm
Emc Limit Value (Complied)	true
Maximum Acceleration Under Shock Load (During Storage)	150 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation)	10 m/s² at 13...200 Hz
Maximum Acceleration Under Vibratory Load (During Transport)	10 m/s² at 13...200 Hz
Maximum Deflection Under Vibratory Load (During Storage)	1.5 mm at 2...13 Hz
Supporting Protocol For As-interface Safety At Work	false
Supporting Protocol For Ethernet/Ip	false
Supporting Protocol For Tcp/Ip	false
With Safety Function Safe Direction (Sdi)	false
With Safety Function Safe Position (Sp)	false
With Safety Function Safe Stop 1 (Ss1)	false
With Safety Function Safely Limited Position (Slp)	false
With Sft Fct Safe Stop 2 (Ss2)	false
Package Weight(Lbs)	1.110 kg
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-10-40 °C without derating, -10-40 °C without derating, -10-60 °C, -10-60 °C, -10-40 °C without derating, -10-40 °C without derating40-60 °C with current derating 2.2 % per °C
Ambient Air Transport Temperature	-25-70 °C, -25-70 °C
Relative Humidity	5-95 % without condensation IEC 60068-2-3, 5-95 % without dripping water IEC 60068-2-3
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP090201EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP090201EN

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Operating Altitude	> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating> 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating 1 % per 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Take Back	No
China Rohs Regulation	X
Circularity Profile	ENVEOLI100204EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
