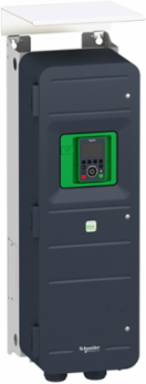

Altivar Process Variable Speed Drive, 30 kW, 40 hp, IP55, 380 to 480V
Schneider Electric

Schneider Electric ATV950D30N4U Altivar Process Variable Speed Drive, 30 kW, 40 hp, IP55, 380 to 480V

  • MPN: ATV950D30N4U
  • PPN: SCH-ATV950D30N4U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    Engineered for efficiency and precision, the Altivar Process ATV900 variable speed drive from Schneider Electric is designed to meet the demanding needs of industrial applications. With a robust power output of 30 kW (40 hp) and operating voltages between 380 to 480V, this drive ensures reliable performance in various environments, boasting an IP55 rating for dust and water resistance. The device features advanced safety functions, including Safe Torque Off and Safe Stop 1, alongside multiple communication protocols such as EtherNet/IP and Modbus, allowing for seamless integration into existing systems. Additionally, its compact design and extensive range of configurable options make it an ideal choice for optimizing motor control and enhancing operational efficiency in any industrial setting.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China
    Depth340 mm

    Communications & Management Attributes

    Communication Port Protocol
    EtherNet/IP, Modbus TCP, Modbus serial

    Complementary Attributes

    Maximum Switching Current
    relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC, relay output R2, R3 resistive, cos phi = 1 5 A 30 V DC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V AC, relay output R1 resistive, cos phi = 1 3 A 30 V DC, relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC, relay output R2, R3 resistive, cos phi = 1 5 A 250 V AC
    Maximum Transient Current
    73.8 A 60 s normal duty), 69.5 A 60 s heavy duty)
    Maximum Associated Fuse Rating
    100.0 A
    Maximum Output Frequency
    599 Hz
    Minimum Switching Current
    relay output R1, R2, R3 5 mA 24 V DC
    Maximum Thdi<48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12, <48 % from 80...100 % of load IEC 61000-3-12
    Brake Chopper Integratedtrue
    Maximum Input Current Per Phase53.3 A
    Maximum Output Voltage480.0 V

    Important Information Attributes

    Product Contributes To Saved And Avoided Emissions
    YES_SSI2, Yes
    Persona Type Names
    End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
    Asynchronous Motor Control Profile
    variable torque standard, constant torque standard, optimized torque mode
    Data Format
    8 bits, configurable odd, even or no parity Modbus serial, 8 bits, configurable odd, even or no parity
    Emc Filter
    integrated, with EMC plate option
    Line Current
    53.3 A 380 V normal duty), 40.5 A 380 V heavy duty), 45.9 A 480 V normal duty), 35.8 A 480 V heavy duty)
    Motor Power Kw
    30.0 kW normal duty, 22.0 kW heavy duty
    Noise Level
    69.7 dB 86/188/EEC, 69.7 dB
    Product Destination
    synchronous motors, asynchronous motors
    Sampling Duration
    2 ms +/- 0.5 ms DI1...DI8) - discrete input, 5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input, 5 ms +/- 1 ms AQ1, AQ2) - analog output
    Synchronous Motor Control Profile
    permanent magnet motor, synchronous reluctance motor
    Type Of Polarization
    no impedance, no impedance Modbus serial
    [Ue] Rated Operational Voltage
    380...480 V 30.0 kW normal duty, 380...480 V 22.0 kW heavy duty
    Environmental Class (During Operation)
    class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3
    Environmental Class (During Transport)
    class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    69.13248648003993, 69 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    390 kg CO2 eq., 389.82481752509494
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    4
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    2
    Function Option Id
    ADVANCED
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    4 Quadrant Operation Possible
    true
    Assembly Style
    enclosed
    Base Load Current At Low Overload
    61.5 A
    Computer Port
    true
    Device Application
    Industrial Application
    Housing Material
    sheet steel
    Marking
    CE
    Maximum Input Current Per Phase
    53.3 A
    Mounting Mode
    wall mount
    Nominal Switching Frequency
    4 kHz
    Number Of Hw Interfaces Serial Rs485
    1
    Operating Element Present
    true
    Optical Interface Present
    false
    Phase
    3 phase
    Power Loss Static Current Independent
    31.0 W
    Product Or Component Type
    variable speed drive
    Prospective Line Isc
    50 kA
    Range Of Product
    Altivar Process ATV900
    Regulation Loop
    adjustable PID regulator
    Relative Symmetric Network Frequency Tolerance
    5 %
    Software Version
    v6.2.5-6
    Supporting Protocol For Bacnet
    false
    Supporting Protocol For Devicenet
    false
    Supporting Protocol For Foundation Fieldbus
    false
    Supporting Protocol For Knx
    false
    Supporting Protocol For Modbus
    true
    Supporting Protocol For Profibus
    true
    Supporting Protocol For Profinet Io
    true
    Supporting Protocol For Safetybus P
    false
    Supporting Protocol For Suconet
    false
    Total Lifecycle Carbon Footprint
    11 034 kg CO2 eq.
    Updatability
    Upgradeable through digital modules
    With Safety Function Safe Programmable Logic
    false
    Pep Code
    ENVPEP1506001EN
    Pep Verification Date
    2026-06-01
    Psr Version
    PSR-0005-ed3.1-EN-2023 12 08
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime, In Y
    10
    Energy Model - Installation [A5]
    No energy used
    Energy Model - End Of Life [C1-c4]
    Global, European and French datasets are used.
    Height Nominal
    910 mm
    Emc Limit Value (Complied)
    true
    Maximum Acceleration Under Shock Load (During Storage)
    150 m/s² at 11 ms
    Maximum Acceleration Under Vibrational Stress (During Operation)
    10 m/s² at 13...200 Hz
    Maximum Acceleration Under Vibratory Load (During Transport)
    10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Storage)
    1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Operation)
    class 3K5 according to EN 60721-3
    Permitted Relative Humidity (During Transport)
    class 2K5 according to EN 60721-3
    Supporting Protocol For Data-highway
    false
    Supporting Protocol For Interbus-safety
    false
    With Safety Function Safe Brake Management (Sbc/Sbt)
    true
    With Safety Function Safe Operating Stop (Sos)
    false
    With Safety Function Safe Speed Monitor (Ssm)
    false
    With Safety Function Safe Torque Off (Sto)
    true
    With Safety Function Safely Limited Speed (Sls)
    true
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Persona Type IdsEU, OM, OM8, SI
    Apparent Power29.8 kVA 480 V heavy duty), 38.2 kVA 480 V normal duty)
    Connector Type2 RJ45, 1 RJ45
    Electromagnetic Compatibilityelectrostatic discharge immunity test level 3 conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4, 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5, conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
    Encoder Protocol1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL
    Linearity ErrorAI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output
    Motor Slip Compensationautomatic whatever the load, not available in permanent magnet motor law, can be suppressed, adjustable
    Number Of Addresses1-247, 1-247 Modbus serial
    Protection Typesafe torque off drive, motor phase break drivethermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive
    Switching Frequency2...16 kHz adjustable, 4...16 kHz with derating factor
    Transmission Rate10/100 Mbit/s Ethernet IP/Modbus TCP, 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s
    Certificate AgencyDNV-GL, TÃœV, ABS, ATEX INERIS, CSA, UL, Bureau Veritas
    [Us] Rated Supply Voltage380...480 V, 380...480 V - 15...10 %
    Environmental Class (During Storage)class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1
    Carbon Footprint Of The Distribution Phase [A4]8.46125742535307, 8 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]28 kg CO2 eq., 28.491317797648858
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]10 538 kg CO2 eq., 10537.93128076309
    Local Publishable Date2026-01-12
    Stocking FlagY
    Device TypeVariable speed drive - VSD Compacts
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI1506001EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Dangerous Goods CodeLITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier2
    Function OptionAdvanced
    Market SegmentationIndustrial
    1 Phase Low Current Possiblefalse
    Application In Domestic And Commercial Area Permittedfalse
    Base Load Current At High Overload46.3 A
    Braking To Standstillby DC injection
    Design Of Frequency ChangerU converter
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
    Isolationbetween power and control terminals
    Maximum Associated Fuse Rating100.0 A
    Method Of Accessslave Modbus TCP
    Network Frequency50-60 Hz
    Number Of Hw Interfaces Industrial Ethernet2
    Number Of Output Phases3
    Operating Positionvertical +/- 10 degree
    Overvoltage CategoryIII
    Power Loss Per Device Current Dependent843.0 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Product Specific Applicationprocess for industrial
    Quantity Per Set1
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Relative Symmetric Mains Voltage Tolerance10 %
    ReturnabilityYes
    Supporting Protocol For Asifalse
    Supporting Protocol For Cantrue
    Supporting Protocol For Devicenet Safetyfalse
    Supporting Protocol For Interbusfalse
    Supporting Protocol For Lonfalse
    Supporting Protocol For Other Bus Systemsfalse
    Supporting Protocol For Profinet Cbatrue
    Supporting Protocol For Profisafefalse
    Supporting Protocol For Sercosfalse
    Sustainable PackagingNo
    Transmission FrameRTU
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Application In Industrial Area Permittedtrue
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine&apos;s operating point for 45 kW for heavy duty electric motors for fluid management and industrial applications in IP55/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in &quot;standby&quot; phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the &quot;Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1&quot;.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity mix; Production mix; low voltage; 2022; China, CN
    Energy Model - Use [B6]Electricity mix; Production mix; low voltage; 2022; Europe, EU-27
    Recyclability Potential, In %89
    Width Nominal290 mm
    Maximum Acceleration Under Shock Impact (During Operation)150 m/s² at 11 ms
    Maximum Acceleration Under Shock Load (During Transport)150 m/s² at 11 ms
    Maximum Acceleration Under Vibratory Load (During Storage)10 m/s² at 13...200 Hz
    Maximum Deflection Under Vibratory Load (During Operation)1.5 mm at 2...13 Hz
    Maximum Deflection Under Vibratory Load (During Transport)1.5 mm at 2...13 Hz
    Permitted Relative Humidity (During Storage)class 1K5 according to EN 60721-3
    Supporting Protocol For As-interface Safety At Workfalse
    Supporting Protocol For Ethernet/Iptrue
    Supporting Protocol For Tcp/Iptrue
    With Safety Function Safe Direction (Sdi)false
    With Safety Function Safe Position (Sp)false
    With Safety Function Safe Stop 1 (Ss1)true
    With Safety Function Safely Limited Position (Slp)false
    With Sft Fct Safe Stop 2 (Ss2)false
    Package Weight(Lbs)55.0 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, -15-50 °C, -15-40 °C (without derating), -15-40 °C (without derating), 40-50 °C (with derating factor)
    Ambient Air Transport Temperature
    -40-70 °C, -40-70 °C
    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    11033.841159991229
    Environmental Disclosure
    ENVPEP1506001EN
    Ip Degree Of Protection
    IP55
    Packaging Without Single Use Plastic
    No
    Pep Code
    ENVPEP1506001EN
    Pcr Version
    PEP-PCR-ed4-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, 1000...4800 m with current derating 1 % per 100 m
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1506001EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardYes
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2026-06-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altivar Process ATV900
    Product Or Component Typevariable speed drive

    ETIM

    ETIM 8
    EC001857
    ETIM 9EC001857

    Output Attributes

    Analogue Output Type
    software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
    Discrete Output Type
    logic output DQ+ 0-1 kHz <= 30 V DC 100 mA, programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA
    Analogue Output Number
    2
    Maximum Output Frequency
    599 Hz
    Nominal Output Current
    61.5 A
    Relay Output Number
    3
    Continuous Output Current61.5 A 4 kHz normal duty, 46.3 A 4 kHz heavy duty
    Relay Output Typeconfigurable relay logic R1 fault relay NO/NC 100000 cycles, configurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles
    Discrete Output Number2
    Maximum Output Voltage480.0 V
    Nominal Output Power30.0 W

    Surge Protection And Filtering Attributes

    Emc Filter
    integrated, with EMC plate option

    Input Attributes

    Analogue Input Type
    AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
    Input Compatibility
    DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2
    Discrete Input Logic
    16 preset speeds
    Number Of Input Phases
    3
    Discrete Input TypeDI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
    Analogue Input Number3
    Discrete Input Number10

    Batteries & Runtime Attributes

    Removable Battery
    Yes

    Similar Products

    Loading carousel layout...

    banner

    Need assistance?

    We can help! Connect with our Sales Team Today!

    Contact Us
    ",{"children":null,"id":"ahrefs web analytics"}])",{"children":null,"id":"ahrefs web analytics"}])
