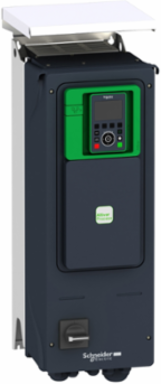

Schneider Electric ATV950U40N4EU Variable Speed Drive 4kW 5hp 380-480V IP55 Wall Mount
- MPN: ATV950U40N4EU
- PPN: SCH-ATV950U40N4EU
CAD
$2517.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Altivar Process ATV900 variable speed drive from Schneider Electric is engineered for industrial applications, providing precise control and efficiency for synchronous and asynchronous motors. With a robust power rating of 4 kW (5 hp) and a voltage range of 380 to 480V, this drive is designed to operate in demanding environments, featuring an IP55 rating that ensures protection against dust and water ingress. Enhanced with a variety of safety functions, including Safe Torque Off and Safely Limited Speed, this drive not only promotes operational safety but also supports efficient motor management through adjustable acceleration and deceleration ramps.
This versatile drive is equipped with advanced communication capabilities, including Modbus and EtherNet/IP protocols, making it ideal for integration into modern automation systems. Its compact design, measuring 678 mm in height and 264 mm in width, allows for easy wall mounting, while the integrated EMC filter ensures compliance with stringent electromagnetic compatibility standards. With certifications from leading organizations such as UL, CSA, and ATEX, the ATV900 is a reliable choice for optimizing motor performance in various industrial processes.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 300 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus serial, EtherNet/IP, Modbus TCP |
|---|
Complementary Attributes
| Maximum Thdi | <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12, <48 % full load IEC 61000-3-12 |
|---|---|
| Maximum Associated Fuse Rating | 16.0 A |
| Maximum Output Frequency | 599 Hz |
| Maximum Switching Current | relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2, R3 resistive, cos phi = 1 5 A 30 V DCrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V ACrelay output R1 resistive, cos phi = 1 3 A 30 V DCrelay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 resistive, cos phi = 1 5 A 250 V AC |
| Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
| Brake Chopper Integrated | true |
|---|---|
| Maximum Input Current Per Phase | 7.6 A |
| Maximum Output Voltage | 480.0 V |
| Maximum Transient Current | 11.2 A 60 s normal duty)10.8 A 60 s heavy duty) |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Asynchronous Motor Control Profile | constant torque standard, variable torque standard, optimized torque mode |
| Data Format | Modbus serial, 8 bits, configurable odd, even or no parity |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Encoder Protocol | 1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL |
| Linearity Error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output |
| Noise Level | 86/188/EEC, 52 dB |
| Protection Type | safe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive |
| Synchronous Motor Control Profile | permanent magnet motor, synchronous reluctance motor |
| Certificate Agency | Bureau Veritas, TÜV, ABS, ATEX INERIS, CSA, DNV-GL, UL |
| Environmental Class (During Storage) | class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 3.2306619260439016, 3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 17 kg CO2 eq., 16.995752350387324 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 011 kg CO2 eq., 2010.9263062277332 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD Compacts |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1508009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1923 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| 4 Quadrant Operation Possible | true |
| Application In Domestic And Commercial Area Permitted | false |
| Base Load Current At High Overload | 7.2 A |
| Braking To Standstill | by DC injection |
| Design Of Frequency Changer | U converter |
| Exchange Mode | half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
| Isolation | between power and control terminals |
| Maximum Associated Fuse Rating | 16.0 A |
| Method Of Access | slave Modbus TCP |
| Mounting Mode | wall mount |
| Nominal Switching Frequency | 4 kHz |
| Number Of Hw Interfaces Industrial Ethernet | 2 |
| Number Of Output Phases | 3 |
| Operating Position | vertical +/- 10 degree |
| Overvoltage Category | III |
| Power Loss Per Device Current Dependent | 142.0 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | process for industrial |
| Quantity Per Set | 1 |
| Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Relative Symmetric Mains Voltage Tolerance | 10 % |
| Returnability | Yes |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | true |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 2 203 kg CO2 eq. |
| Type Of Polarization | no impedanceno impedance Modbus serial |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Application In Industrial Area Permitted | true |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 11 kW for heavy duty electric motors for fluid management and industrial applications in IP55/UL type 1 conditions, at 380V to 480V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 20% uptime in full phase, 30% uptime in medium phase, 40% uptime in low phase and 10% uptime in "standby" phase (equating it with standstill phase) of the 5000h operating time and 1000h of standby according to the "Electric Motor, VSD and PDS use phase GHG Emissions - CEMEP guideline: Duty profile for general Purpose Machinery_V1". |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity mix; Production mix; low voltage; 2022; China, CN |
| Energy Model - Use [B6] | Electricity mix; Production mix; low voltage; 2022; Europe, EU-27 |
| Recyclability Potential In % | 85 |
| Width Nominal | 264 mm |
| [Us] Rated Supply Voltage | 380...480 V380...480 V - 15...10 % |
| Maximum Acceleration Under Shock Impact (During Operation) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load (During Transport) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibratory Load (During Storage) | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load (During Operation) | 1.5 mm at 2...13 Hz |
| Maximum Deflection Under Vibratory Load (During Transport) | 1.5 mm at 2...13 Hz |
| Permitted Relative Humidity (During Storage) | class 1K5 according to EN 60721-3 |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | true |
| Supporting Protocol For Tcp/Ip | true |
| With Safety Function Safe Direction (Sdi) | false |
| With Safety Function Safe Position (Sp) | false |
| With Safety Function Safe Stop 1 (Ss1) | true |
| With Safety Function Safely Limited Position (Slp) | false |
| With Sft Fct Safe Stop 2 (Ss2) | false |
| Package Weight(Lbs) | 21.0 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Connector Type | 2 RJ45, 1 RJ45 |
| Electrical Connection | control screw terminal 0.5...1.5 mm²line side screw terminal 4...6 mm², motor screw terminal 4...6 mm²DC bus screw terminal 2.5...6 mm² |
| Emc Filter | integrated, with EMC plate option |
| Line Current | 7.6 A 380 V normal duty)6.0 A 380 V heavy duty)6.7 A 480 V normal duty), 5.4 A 480 V heavy duty) |
| Motor Slip Compensation | not available in permanent magnet motor law, can be suppressed, automatic whatever the load, adjustable |
| Product Destination | synchronous motors, asynchronous motors |
| Sampling Duration | 2 ms +/- 0.5 ms DI1...DI8) - discrete input5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input5 ms +/- 1 ms AQ1, AQ2) - analog output |
| Transmission Rate | 10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s |
| Environmental Class (During Operation) | class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3 |
| Environmental Class (During Transport) | class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 18.708094137442878, 19 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 153 kg CO2 eq., 152.976688971741 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Weee Applicability | Finished product |
| Weee Product Category | 4 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| 1 Phase Low Current Possible | false |
| Apparent Power | 5.6 kVA 480 V normal duty)4.5 kVA 480 V heavy duty) |
| Assembly Style | enclosed |
| Base Load Current At Low Overload | 9.3 A |
| Computer Port | true |
| Device Application | Industrial Application |
| Housing Material | plastic |
| Marking | CE |
| Maximum Input Current Per Phase | 7.6 A |
| Motor Power Kw | 4.0 kW normal duty3.0 kW heavy duty |
| Network Frequency | 50-60 Hz |
| Number Of Addresses | 1-2471-247 Modbus serial |
| Number Of Hw Interfaces Serial Rs485 | 1 |
| Operating Element Present | true |
| Optical Interface Present | false |
| Phase | 3 phase |
| Power Loss Static Current Independent | 14.0 W |
| Product Or Component Type | variable speed drive |
| Prospective Line Isc | 50 kA |
| Range Of Product | Altivar Process ATV900 |
| Regulation Loop | adjustable PID regulator |
| Relative Symmetric Network Frequency Tolerance | 5 % |
| Software Version | v6.2.5-6 |
| Supporting Protocol For Bacnet | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | true |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Switching Frequency | 2...16 kHz adjustable4...16 kHz with derating factor |
| Transmission Frame | RTU |
| Updatability | Upgradeable through digital modules |
| With Safety Function Safe Programmable Logic | false |
| Pep Code | ENVPEP1508009EN |
| Pep Verification Date | 2026-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 678 mm |
| [Ue] Rated Operational Voltage | 380...480 V 4.0 kW normal duty380...480 V 3.0 kW heavy duty |
| Emc Limit Value (Complied) | true |
| Maximum Acceleration Under Shock Load (During Storage) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibrational Stress (During Operation) | 10 m/s² at 13...200 Hz |
| Maximum Acceleration Under Vibratory Load (During Transport) | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load (During Storage) | 1.5 mm at 2...13 Hz |
| Permitted Relative Humidity (During Operation) | class 3K5 according to EN 60721-3 |
| Permitted Relative Humidity (During Transport) | class 2K5 according to EN 60721-3 |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| With Safety Function Safe Brake Management (Sbc/Sbt) | true |
| With Safety Function Safe Operating Stop (Sos) | false |
| With Safety Function Safe Speed Monitor (Ssm) | false |
| With Safety Function Safe Torque Off (Sto) | true |
| With Safety Function Safely Limited Speed (Sls) | true |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504404000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -15-40 °C (without derating), -15-40 °C (without derating), -15-50 °C, -15-50 °C, -15-40 °C (without derating), -15-40 °C (without derating)40-50 °C (with derating factor) |
|---|---|
| Ambient Air Transport Temperature | -40-70 °C, -40-70 °C |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 2202.8375036133484 |
| Environmental Disclosure | ENVPEP1508009EN |
| Ip Degree Of Protection | IP55 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1508009EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1508009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2026-06-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|
| Range Of Product | Altivar Process ATV900 |
| Product Or Component Type | variable speed drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Analogue Output Type | software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits |
|---|---|
| Relay Output Type | configurable relay logic R1 fault relay NO/NC 100000 cyclesconfigurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles |
| Continuous Output Current | 9.3 A 4 kHz normal duty7.2 A 4 kHz heavy duty |
| Maximum Output Frequency | 599 Hz |
| Nominal Output Current | 9.3 A |
| Relay Output Number | 3 |
| Discrete Output Type | logic output DQ+ 0-1 kHz <= 30 V DC 100 mAprogrammable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA |
|---|---|
| Analogue Output Number | 2 |
| Discrete Output Number | 2 |
| Maximum Output Voltage | 480.0 V |
| Nominal Output Power | 4.0 W |
Surge Protection And Filtering Attributes
| Emc Filter | integrated, with EMC plate option |
|---|
Input Attributes
| Analogue Input Type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits |
|---|---|
| Input Compatibility | DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2 |
| Discrete Input Logic | 16 preset speeds |
| Number Of Input Phases | 3 |
| Discrete Input Type | DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm |
|---|---|
| Analogue Input Number | 3 |
| Discrete Input Number | 10 |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$2517.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$2517.00/ EA
Loading add to cart quantity...
