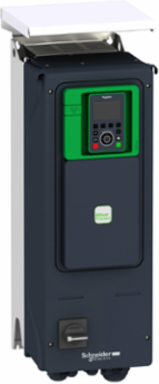

Schneider Electric ATV650U07N4EU variable speed drive, Altivar Process ATV600, ATV650, 0.75kW, 1hp, 380, 480V, IP55, UL type 12, disconnect switch

  • MPN: ATV650U07N4EU
  • PPN: SCH-ATV650U07N4EU
  • UNSPSC: 39122001
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $1511.11

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. This variable speed drive features an integrated EMC filter with 50m and 150m cable conforming to categories C2 and C3. It works at a rated supply voltage from 380V to 480VAC and it is an IP55 UL type 12 rated product. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 0.75kW/1HP for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 0.37kW/0.5HP for applications requiring significant overload (up to 150%). Its dimensions are 264mm (width) x 300mm (depth) x 678mm (height). It weighs 10.5kg. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. This product is certified by ATEX INERIS, ATEX zone 2/22, CE, UL, CSA, BV and TUV. It meets EN/IEC 61800, IEC 61000-3-12, IEC 60721-3, IEC 61508 and IEC 13849-1 standards. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.

    Documentation & Downloads

    Specifications

    Key Specifications

    Prospective Line Isc50 kA
    Line Current1.3 A 480 V normal duty) || 0.9 A 380 V heavy duty) || 0.8 A 480 V heavy duty) || 1.5 A 380 V normal duty)
    Asynchronous Motor Control Profileconstant torque standard || optimized torque mode
    Product Or Component Typevariable speed drive
    Switching Frequency4...12 kHz with derating factor || 2...12 kHz adjustable
    Product Specific Applicationprocess and utilities
    Maximum Horse Power Rating0.5 hp heavy duty || 1 hp normal duty
    Option Cardslot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A communication module, CANopen screw terminals || slot A/slot B digital and analog I/O extension module || slot A/slot B output relay extension module || slot A communication module, Ethernet IP/Modbus TCP/MD-Link || communication module, BACnet MS/TP || communication module, Ethernet Powerlink || slot A communication module, Profibus DP V1
    Range Of ProductAltivar Process ATV600
    Ip Degree Of ProtectionIP55IEC 60529 || IP55IEC 61800-5-1
    [Us] Rated Supply Voltage380...480 V
    Discrete Input Logic16 preset speeds
    Continuous Output Current1.5 A 4 kHz heavy duty || 2.2 A 4 kHz normal duty
    Device Short NameATV650
    Product Destinationasynchronous motors || synchronous motors
    Emc Filterintegrated 50 m IEC 61800-3 category C2 || integrated 150 m IEC 61800-3 category C3
    Variantwith disconnect switch
    Apparent Power0.7 kVA 480 V heavy duty) || 1.1 kVA 480 V normal duty)
    Communication Port ProtocolEthernet || Modbus TCP
    Safety FunctionSTO (safe torque off) SIL 3
    Supply Frequency50...60 Hz - 5...5 %
    Degree Of ProtectionUL type 12 UL 508C
    Speed Drive Output Frequency0.1-500 Hz
    Motor Power Kw0.37 kW heavy duty) || 0.75 kW normal duty)
    [Us] Rated Supply Voltage380...480 V - 15...10 %
    Type Of Coolingforced convection
    Nominal Switching Frequency4 kHz
    Synchronous Motor Control Profilesynchronous reluctance motor || permanent magnet motor

    Complementary

    Discrete Input Logicpositive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
    Discrete Output Typerelay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V DC 5000 mA
    Exchange Modehalf duplex, full duplex, autonegotiation Ethernet/Modbus TCP
    Net Weight10.5 kg
    Frequency Resolutionanalog input 0.012/50 Hz || display unit 0.1 Hz
    Maximum Transient Current2.3 A 60 s heavy duty) || 2.4 A 60 s normal duty)
    Motor Slip Compensationadjustable || can be suppressed || automatic whatever the load || not available in permanent magnet motor law
    Method Of Accessslave Modbus TCP
    Local Signallingfor embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs
    Number Of Addresses1-247 Modbus serial
    Transmission Rate10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
    Analogue Input TypeAI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
    Electrical Connectionline side screw terminal 4...6 mm² || motor screw terminal 4...6 mm² || control removable screw terminals 0.5...1.5 mm²
    Height678 mm
    Transmission FrameRTU
    Data Format8 bits, configurable odd, even or no parity
    Connector TypeRJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
    Permissible Temporary Current Boost1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)
    Analogue Output Number2
    Minimum Switching Currentrelay output R1, R2, R3 5 mA 24 V DC
    Enclosure Mountingwall mounted
    Output Voltage<= power supply voltage
    Braking To Standstillby DC injection
    Protection Typesafe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || motor phase break drive || overvoltages on the DC bus drive || line supply overvoltage drive || line supply undervoltage drive || line supply phase loss drive || overspeed drive || break on the control circuit drive || thermal protection motor
    Analogue Output Typesoftware-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
    Maximum Switching Currentrelay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC
    Phase3 phase
    Type Of Polarizationno impedance
    Relay Output Typeconfigurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles
    Analogue Input Number3
    Discrete Output Number0
    Discrete Input Number8
    Linearity ErrorAO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
    Width264 mm
    Depth300 mm
    Sampling Duration5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input
    Maximum Output Frequency500 kHz
    Acceleration And Deceleration Rampslinear adjustable separately from 0.01...9999 s
    Relay Output Number3
    Accuracy+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
    Input CompatibilityDI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2 || DI1...DI6 discrete input level 1 PLC IEC 61131-2
    Mounting Modewall mount
    Physical InterfaceEthernet || 2-wire RS 485
    Refresh Timerelay output R1, R2, R3)5 ms +/- 0.5 ms)
    Isolationbetween power and control terminals
    Quantity Per Set1
    Discrete Input TypeDI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
    Supplyinternal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection

    Environment

    Product CertificationsUL || ATEX zone 2/22 || CSA || TÜV || ATEX INERIS || Bureau Veritas
    Insulation Resistance> 1 MOhm 500 V DC for 1 minute to earth
    Vibration Resistance1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6
    Regulation Loopadjustable PID regulator
    Overvoltage CategoryIII
    Electromagnetic Compatibilityradiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency immunity test level 3 IEC 61000-4-6 || electrostatic discharge immunity test level 3 IEC 61000-4-2
    MarkingCE
    Noise Level52 dB
    Relative Humidity5-95 % without condensation IEC 60068-2-3
    Maximum Thdi<48 % full load IEC 61000-3-12
    StandardsIEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || IEC 61800-3
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Noise Level52 dB 86/188/EEC
    Operating Altitude1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
    Pollution Degree3
    Ambient Air Temperature For Operation40-50 °C with derating factor) || -15-40 °C without derating)
    Pollution Degree2 IEC 61800-5-1
    Ambient Air Temperature For Storage-40-70 °C
    Operating Positionvertical +/- 10 degree

    Offer Sustainability

    Mercury FreeYes
    WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    UpgradeabilityUpgraded components available
    Environmental DisclosureENVPEP1508009EN
    California Proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    China Rohs RegulationX
    Rohs Exemption InformationYes
    Sustainable Offer StatusGreen Premium product
    Circularity ProfileENVEOLI1508009EN
    variable speed drive, Altivar Process ATV600, ATV650, 0.75kW, 1hp, 380, 480V, IP55, UL type 12, disconnect switch
