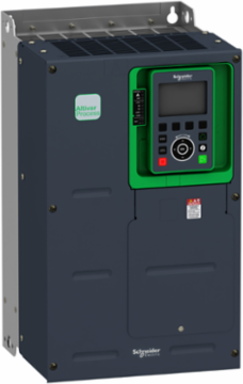

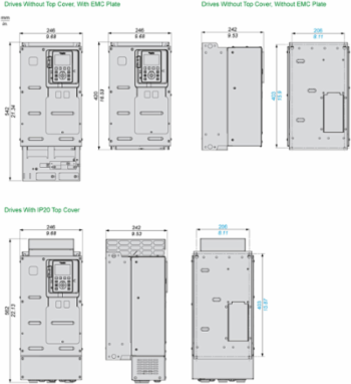

Schneider Electric ATV930U40Y6 Variable Speed Drive 4kW 3hp 500-690V Wall Mount IP21
- MPN: ATV930U40Y6
- PPN: SCH-ATV930U40Y6
CAD
$2850.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Variable Speed Drive 4kW 3hp 500-690V Wall Mount IP21
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, India, United States, ZZ |
|---|
| Depth | 242 mm |
|---|
Communications & Management Attributes
| Communication Port Protocol | Modbus serial, Modbus TCP, EtherNet/IP |
|---|
Complementary Attributes
| Brake Chopper Integrated | true |
|---|---|
| Maximum Input Current Per Phase | 6.2 A |
| Maximum Output Voltage | 690.0 V |
| Maximum Transient Current | 6.3 A 60 s heavy duty)6.48 A 60 s normal duty) |
| Maximum Associated Fuse Rating | 10.0 A |
|---|---|
| Maximum Output Frequency | 599 Hz |
| Maximum Switching Current | relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R2, R3 resistive, cos phi = 1 5 A 30 V DCrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DCrelay output R1 resistive, cos phi = 1 3 A 250 V ACrelay output R1 resistive, cos phi = 1 3 A 30 V DCrelay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V ACrelay output R2, R3 resistive, cos phi = 1 5 A 250 V AC |
| Minimum Switching Current | relay output R1, R2, R3 5 mA 24 V DC |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Asynchronous Motor Control Profile | variable torque standard, optimized torque mode, constant torque standard |
| Data Format | Modbus serial, 8 bits, configurable odd, even or no parity |
| Emc Filter | integrated, with EMC plate option |
| Line Current | 6.2 A 500 V normal duty)4.7 A 500 V heavy duty)6.1 A 690 V normal duty), 4.8 A 690 V heavy duty) |
| Motor Slip Compensation | not available in permanent magnet motor law, adjustable, can be suppressed, automatic whatever the load |
| Product Destination | synchronous motors, asynchronous motors |
| Sampling Duration | 2 ms +/- 0.5 ms DI1...DI8) - discrete input5 ms +/- 1 ms DI7, DI8) - pulse input, 1 ms +/- 1 ms AI1, AI2, AI3) - analog input5 ms +/- 1 ms AQ1, AQ2) - analog output |
| Transmission Rate | 10/100 Mbit/s Ethernet IP/Modbus TCP4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial, 10, 100 Mbits, 4.8 kbps, 9600 bit/s, 19200 bit/s |
| [Ue] Rated Operational Voltage | 690 V 3 kW heavy duty500 V 3.0 kW normal duty, 500 V 2.2 kW 3 hp heavy duty, 690 V 4 kW 5 hp normal duty |
| Environmental Class (During Storage) | class 1C3 according to EN 60721-3-1, class 1S2 according to EN 60721-3-1 |
| Carbon Footprint Of The Distribution Phase [A4] | 4.287068889972338, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 7 kg CO2 eq., 7.423492840918801 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 3 030 kg CO2 eq., 3030.3258936529955 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD Compacts |
| Traceability | Yes |
| Average Life Duration | 10 year(s) |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Dangerous Goods Code | LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT |
| Tier | 2 |
| Function Option | Advanced |
| Market Segmentation | Industrial |
| 1 Phase Low Current Possible | false |
| Apparent Power | 7.3 kVA 690 V normal duty)5.7 kVA 690 V heavy duty) |
| Assembly Style | enclosed |
| Base Load Current At High Overload | 4.2 A |
| Braking To Standstill | by DC injection |
| Design Of Frequency Changer | U converter |
| Exchange Mode | half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP |
| Isolation | between power and control terminals |
| Maximum Associated Fuse Rating | 10.0 A |
| Method Of Access | slave Modbus TCP |
| Mounting Mode | wall mount |
| Nominal Switching Frequency | 4 kHz |
| Number Of Hw Interfaces Industrial Ethernet | 2 |
| Number Of Output Phases | 3 |
| Operating Position | vertical +/- 10 degree |
| Overvoltage Category | III |
| Power Dissipation In W | forced convection 75 W 500 V 4 kHznatural convection 78 W 500 V 4 kHz |
| Power Loss Static Current Independent | 41.0 W |
| Product Or Component Type | variable speed drive |
| Prospective Line Isc | 70 kA |
| Range Of Product | Altivar Process ATV900 |
| Regulation Loop | adjustable PID regulator |
| Relative Symmetric Network Frequency Tolerance | 5 % |
| Software Version | v6.1 |
| Supporting Protocol For Bacnet | false |
| Supporting Protocol For Devicenet | false |
| Supporting Protocol For Foundation Fieldbus | false |
| Supporting Protocol For Knx | false |
| Supporting Protocol For Modbus | true |
| Supporting Protocol For Profibus | true |
| Supporting Protocol For Profinet Io | true |
| Supporting Protocol For Safetybus P | false |
| Supporting Protocol For Suconet | false |
| Switching Frequency | 2...8 kHz adjustable4...8 kHz with derating factor |
| Transmission Frame | RTU |
| Updatability | Upgradeable through digital modules |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Application In Industrial Area Permitted | true |
| Database Version | 2023-02 |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To adapt the speed and torque of synchronous, asynchronous or reluctance motor to the machine's operating point for 22 kW for heavy duty electric motors for fluid management and industrial applications in IP20/UL type 1 conditions, at 600V rated 3-phases voltage supply. Calculation of the environmental impacts is based on 10 years of product service lifetime. The usage profile taken into account is 80% uptime in use phase at 75% loading rate and 20% uptime in stand by phase. |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 7393.44 |
| Energy Model - Installation [A5] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Height Nominal | 420 mm |
| [Us] Rated Supply Voltage | 500...690 V500...690 V - 15...10 % |
| Maximum Acceleration Under Shock Impact (During Operation) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Shock Load (During Transport) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibratory Load (During Storage) | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load (During Operation) | 1.5 mm at 2...13 Hz |
| Maximum Deflection Under Vibratory Load (During Transport) | 1.5 mm at 2...13 Hz |
| Permitted Relative Humidity (During Storage) | class 1K5 according to EN 60721-3 |
| Supporting Protocol For As-interface Safety At Work | false |
| Supporting Protocol For Ethernet/Ip | true |
| Supporting Protocol For Tcp/Ip | true |
| With Safety Function Safe Direction (Sdi) | false |
| With Safety Function Safe Position (Sp) | false |
| With Safety Function Safe Stop 1 (Ss1) | true |
| With Safety Function Safely Limited Position (Slp) | false |
| With Sft Fct Safe Stop 2 (Ss2) | false |
| Package Weight(Lbs) | 21.000 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Connector Type | 2 RJ45, 1 RJ45 |
| Electromagnetic Compatibility | electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3, electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-41.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
| Encoder Protocol | 1 Vpp, EnDat 2.2, resolver, RS 422, SSI 24V, SSI 5V, TTL/HTL |
| Linearity Error | AI1, AI2, AI3 +/- 0.15 % of maximum value analog input, AQ1, AQ2 +/- 0.2 % analog output |
| Noise Level | 86/188/EEC, 58 dB |
| Protection Type | safe torque off drivemotor phase break drive, thermal protection motor, safe torque off motor, motor phase break motor, thermal protection drive, overheating drive, overcurrent between output phases and earth drive, overload of output voltage drive, short-circuit protection drive, overvoltages on the DC bus drive, line supply overvoltage drive, line supply undervoltage drive, line supply phase loss drive, overspeed drive, break on the control circuit drive |
| Synchronous Motor Control Profile | permanent magnet motor, synchronous reluctance motor |
| Certificate Agency | TÜV, CSA, UL |
| Environmental Class (During Operation) | class 3C3 according to IEC 60721-3-3, class 3S3 according to IEC 60721-3-3 |
| Environmental Class (During Transport) | class 2C3 according to EN 60721-3-2, class 2S1 according to EN 60721-3-2 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 40.41193315490592, 40 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 239 kg CO2 eq., 239.36017519122294 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | IDIBS |
| Average Percentage Of Asi Certified Metals | 100 % |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1704001EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1923 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | YES_SSI2Yes |
| Tier Id | 2 |
| Function Option Id | ADVANCED |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| 4 Quadrant Operation Possible | true |
| Application In Domestic And Commercial Area Permitted | false |
| Average Percentage Of Recycled Plastic Content | 2 % |
| Base Load Current At Low Overload | 5.4 A |
| Computer Port | true |
| Device Application | Industrial Application |
| Housing Material | sheet steel |
| Marking | CE |
| Maximum Input Current Per Phase | 6.2 A |
| Motor Power Kw | 3.0 kW normal duty2.2 kW heavy duty |
| Network Frequency | 50-60 Hz |
| Number Of Addresses | 1-2471-247 Modbus serial |
| Number Of Hw Interfaces Serial Rs485 | 1 |
| Operating Element Present | true |
| Optical Interface Present | false |
| Phase | 3 phase |
| Power Loss Per Device Current Dependent | 146.0 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | process for industrial |
| Quantity Per Set | 1 |
| Refresh Time | relay output R1, R2, R3)5 ms +/- 0.5 ms) |
| Relative Symmetric Mains Voltage Tolerance | 10 % |
| Returnability | Yes |
| Supporting Protocol For Asi | false |
| Supporting Protocol For Can | true |
| Supporting Protocol For Devicenet Safety | false |
| Supporting Protocol For Interbus | false |
| Supporting Protocol For Lon | false |
| Supporting Protocol For Other Bus Systems | false |
| Supporting Protocol For Profinet Cba | true |
| Supporting Protocol For Profisafe | false |
| Supporting Protocol For Sercos | false |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 3 322 kg CO2 eq. |
| Type Of Polarization | no impedanceno impedance Modbus serial |
| Volume Of Cooling Air | 330 m3/h |
| With Safety Function Safe Programmable Logic | false |
| Pep Code | ENVPEP1704001EN |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | India, IN |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2018; Europe, EU-27 |
| Recyclability Potential In % | 84 |
| Width Nominal | 246 mm |
| Emc Limit Value (Complied) | true |
| Maximum Acceleration Under Shock Load (During Storage) | 150 m/s² at 11 ms |
| Maximum Acceleration Under Vibrational Stress (During Operation) | 10 m/s² at 13...200 Hz |
| Maximum Acceleration Under Vibratory Load (During Transport) | 10 m/s² at 13...200 Hz |
| Maximum Deflection Under Vibratory Load (During Storage) | 1.5 mm at 2...13 Hz |
| Permitted Relative Humidity (During Operation) | class 3K5 according to EN 60721-3 |
| Permitted Relative Humidity (During Transport) | class 2K5 according to EN 60721-3 |
| Supporting Protocol For Data-highway | false |
| Supporting Protocol For Interbus-safety | false |
| With Safety Function Safe Brake Management (Sbc/Sbt) | true |
| With Safety Function Safe Operating Stop (Sos) | false |
| With Safety Function Safe Speed Monitor (Ssm) | false |
| With Safety Function Safe Torque Off (Sto) | true |
| With Safety Function Safely Limited Speed (Sls) | true |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8504404000 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -15-50 °C (without derating), -15-50 °C (without derating), -15-60 °C, -15-60 °C, -15-50 °C (without derating), -15-50 °C (without derating)50-60 °C (with derating factor) |
|---|---|
| Ambient Air Transport Temperature | -40-70 °C, -40-70 °C |
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 3321.8085637300155 |
| Environmental Disclosure | ENVPEP1704001EN |
| Ip Degree Of Protection | IP21 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1704001EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Operating Altitude | <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating1000...4800 m with current derating 1 % per 100 m |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1704001EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Phase | 3 phase |
|---|---|

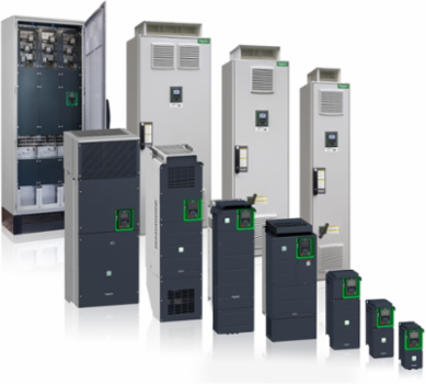

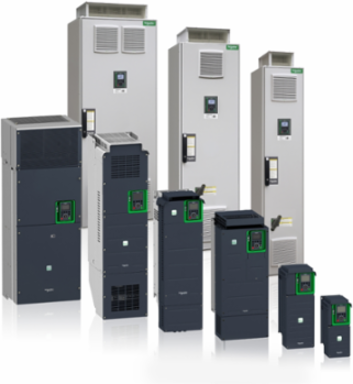

| Range Of Product | Altivar Process ATV900 |
| Product Or Component Type | variable speed drive |
|---|
ETIM
| ETIM 8 | EC001857 |
|---|
| ETIM 9 | EC001857 |
|---|
Output Attributes
| Analogue Output Type | software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits, software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits |
|---|---|
| Relay Output Type | configurable relay logic R1 fault relay NO/NC 100000 cyclesconfigurable relay logic R2 sequence relay NO 1000000 cycles, configurable relay logic R3 sequence relay NO 1000000 cycles |
| Continuous Output Current | 4.2 A 4 kHz heavy duty5.4 A 4 kHz normal duty |
| Maximum Output Frequency | 599 Hz |
| Nominal Output Current | 5.4 A |
| Relay Output Number | 3 |
| Discrete Output Type | logic output DQ+ 0-1 kHz <= 30 V DC 100 mAprogrammable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA, logic output DQ- 0-1 kHz <= 30 V DC 100 mA |
|---|---|
| Analogue Output Number | 2 |
| Discrete Output Number | 2 |
| Maximum Output Voltage | 690.0 V |
| Nominal Output Power | 4.0 W |
Surge Protection And Filtering Attributes
| Emc Filter | integrated, with EMC plate option |
|---|
Input Attributes
| Analogue Input Type | AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits, AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits |
|---|---|
| Input Compatibility | DI1...DI8 discrete input level 1 PLC IEC 61131-2, DI7, DI8 pulse input level 1 PLC IEC 65A-68, STOA, STOB discrete input level 1 PLC IEC 61131-2 |
| Discrete Input Logic | 16 preset speeds |
| Number Of Input Phases | 3 |
| Discrete Input Type | DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm, DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V), STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm |
|---|---|
| Analogue Input Number | 3 |
| Discrete Input Number | 10 |
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|
Loading video…
Similar Products
Loading carousel layout...
Loading carousel layout...
CAD
$2850.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
CAD$2850.17/ EA
Loading add to cart quantity...
