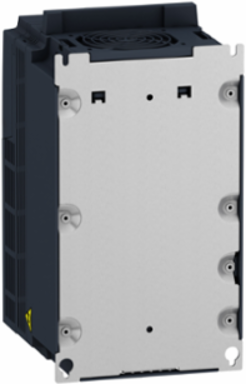

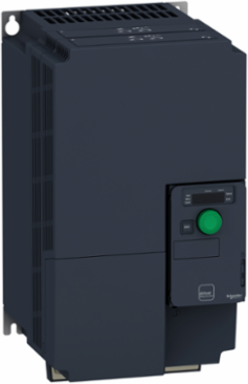

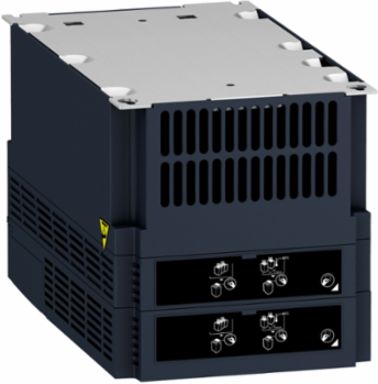

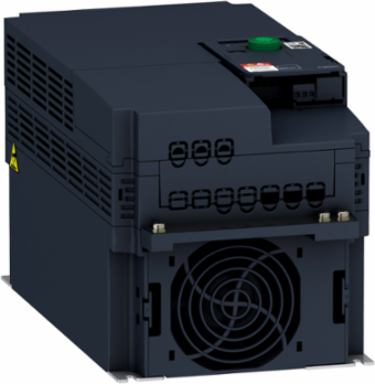

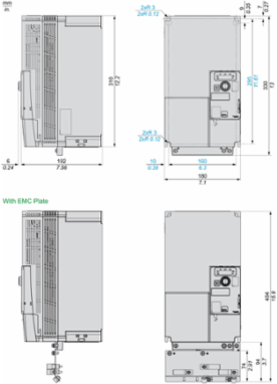

Schneider Electric ATV320D15S6C Variable Speed Drive, 15 kW, 525-600V, Compact, Vertical Mount
- MPN: ATV320D15S6C
- PPN: SCH-ATV320D15S6C
CAD
$2897.65
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Variable Speed Drive, 15 kW, 525-600V, Compact, Vertical Mount
Features
- This Altivar Machine ATV320 drive comes factory-equipped with five robust safety functions, including Safe Torque Off (STO) and Safe Stop 1 (SS1), reaching SIL3/PLe levels of protection. By integrating these safety protocols directly into the VFD, industrial engineers can significantly reduce wiring complexity and hardware costs while ensuring high-performance machinery meets the most stringent global safety standards for operator protection.
- Designed specifically for 525V to 600V three-phase power supplies, the ATV320D15S6C is the ideal solution for North American industrial environments where higher voltage ratings are standard. This specialized voltage range prevents the need for expensive step-down transformers, allowing for a more direct, efficient, and cost-effective connection to your facility s primary power distribution.
- Built with embedded Modbus and CANopen protocols as standard, this drive ensures seamless communication with Schneider Electric s EcoStruxure architecture or other major PLC systems. This high-level connectivity allows for real-time remote monitoring, predictive maintenance alerts, and rapid parameter adjustments, drastically reducing troubleshooting time and maximizing overall equipment effectiveness (OEE).
Documentation & Downloads
Specifications
Additional
- Power
- 15.0 kW heavy duty
- Phases
- 3
- Line Current
- 22.1 A at 525 V heavy duty, 20.1 A at 600 V heavy duty
- Maximum Output Voltage
- 600 V
- Switching Frequency
- 2-16 kHz adjustable
- Transient Overtorque
- 170-200 % of nominal motor torque
- Brake Chopper
- Integrated
- Base Load Current at High Overload
- 3.7 A
- Speed Accuracy
- +/- 10% of nominal slip 0.2 Tn to Tn
- Pollution Degree
- 2
- Mounting Type
- Wall mount
- Width
- 180 mm
- Depth
- 198 mm
- Analogue Input Number
- 3
- Discrete Input Number
- 7
- Relay Output Type
- Configurable relay logic R1A, R1B, R1C, R2A, R2C
- IP Degree of Protection
- IP20
- Permitted Relative Humidity
- Class 3K5 EN 60721-3
- Max Acceleration Vibrational Stress
- 10 m/s2 at 13-200 Hz
- Volume of Cooling Air
- 156 m3/h
- Relative Symmetric Network Frequency Tolerance
- 5%
- Ambient Air Transport Temperature
- -25 to 70 C
- Compliance
- CE, ATEX, UL, CSA, EAC, RCM, KC, RoHS, WEEE
Voltage525-600 V AC
Nominal Output Current22.0 A
Apparent Power20.9 kVA 600 V heavy duty
Maximum Output Frequency0.599 kHz
Nominal Switching Frequency4 kHz
Braking MethodBy DC injection
Protection TypeInput phase breaks, overcurrent, overheating, short-circuit, thermal protection
Regulation LoopAdjustable PID regulator
Overvoltage CategoryIII
Operating PositionVertical +/- 10
FormatCompact
Height330 mm
Net Weight6.5 kg
Analogue Output Number1
Discrete Output Number3
Maximum Switching Current3 A 250 V AC (resistive), 5 A 250 V AC (R2A, R2C)
Environmental ClassClass 3C3 and 3S2 IEC 60721-3-3
Max Acceleration Shock Impact150 m/s2 at 11 ms
Max Deflection Vibratory Load1.5 mm at 2-13 Hz
Network Frequency50-60 Hz
Ambient Air Temperature for Operation-10 to 50 C without derating, 50 to 60 C with derating
Ambient Air Temperature for Storage-25 to 70 C
StandardsIEC 61800-5-1
