Description

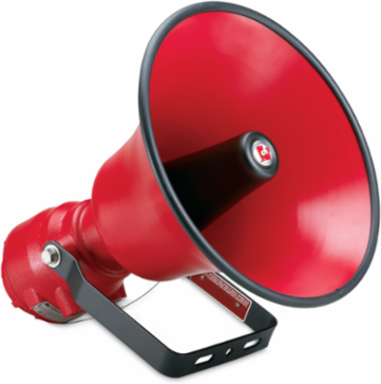

Federal Signal’s Models ASHX and ASUX Explosion-Proof Amplified Speakers are designed to produce crisp, clear tones in supervised alarm notification systems. Both models are compatible with fire alarm, voice evacuation, suppression supervised control panels, and power boosters.These amplified speakers can broadcast tones generated by a Tone Card installed into the speaker (the plug-in 32-tone UTM) or by a central tone source in a voice evacuation or paging system. When live public address or voice messages are required, plug-in Connector Cards (AM25CK or AM70CK) interface with the Vrms of the EVAC panel.The speaker cone and projector are constructed of rugged spun aluminum. The solid-state amplifier circuit is protected in a die-cast aluminum housing. Dust- and moisture-proof gaskets provide protection from the elements. All external surfaces are sealed with red powder coat paint.
Features
- 15 watt (ASHX) or 30 watt (ASUX)
- 24VDC
- Built-in gain control
- Four wire supervisable power circuit
- Swivel mount bracket
- Type 4X, IP66 enclosure
- CSFM Approved
- UL and cUL listed for Class I, Division 1, Groups B, C and D; Class I, Division 2, Group A, B, C, and D; Class II, Division 2, Groups F and G; Class III
- ASHX and ASUX UL Fire Listed
Specifications
Specifications
- Country of Origin
- United States
- Body Color
- Red
- dBa 1 Meter
- 110
- Availability
- Available in 4-6 weeks
- Operating Current Amps
- 1
- Operating Voltage
- 24 Vdc
- Audible Signals Watts
- 30
- Height
- 18.8 in, 47.752 cm
Weight16.4 lbs
Certification ListingCSFM, UL, UL Fire
dBa 10 Ft100
Mount TypeSwivel
Operating Temp.-40˚ to +150˚F (-40˚ to +66˚C)
Watts30
Depth18.8 in, 47.752 cm
Width16.7 in, 42.418 cm
