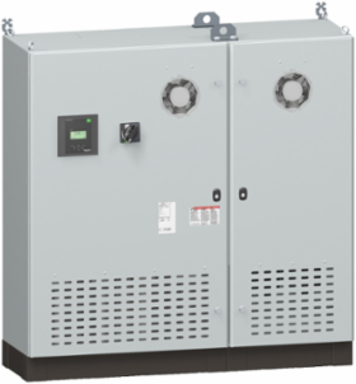

Schneider Electric VA050B40140 PowerLogic PFC Capacitor Bank 50 kvar 480V 3P Automatic
- MPN: VA050B40140
- PPN: SCH-VA050B40140
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric PowerLogic PFC Capacitor Bank is engineered for optimal power factor correction, delivering a robust 50 kvar at 480V in a three-phase configuration. This automatic system enhances energy efficiency by minimizing energy loss and improving the overall power quality in industrial applications. With its reliable performance and intelligent design, this capacitor bank aids in reducing electricity costs and ensuring the smooth operation of electrical equipment, making it an essential component for facilities looking to optimize their power usage and system stability.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 47.24 in
- Depth
- 400 mm
Width51.18 in
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Permissible Voltage
- 1.1 x Un 8 hours over 24 hours)
Network Rated Voltage480 V AC 60 Hz
Important Information Attributes
- Carbon Footprint Of The Distribution Phase [A4]
- 325.01853051716824, 325 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 124.09170685040954, 124 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 13 710 kg CO2 eq., 13709.612475016622
- Local Publishable Date
- 2026-02-27
- Stocking Flag
- Y
- Serviceability
- Yes
- Field Service Division
- DPIBS
- Service Product Group
- PQPFC
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- End Of Life Doc Ref
- ENVEOLI2005002_V3
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2201
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- PowerLogic PFC detuned
- Number Of Poles
- 3P
- Power Per Step
- 12.5 kvar
- Product Or Component Type
- capacitor bank
- Range Of Product
- PowerLogic
- Returnability
- No
- Software Version
- v6.2.4
- Step Sequences
- 1.1.2.2
- Total Lifecycle Carbon Footprint
- 16 076 kg CO2 eq.
- Tuning Frequency
- 252 Hz
- Database Version
- 2024-01
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Low voltage capacitor bank, to generate reactive energy from 6kvar to 1150kvar during 20 years
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 17273.187
- Energy Model - Installation [A5]
- Electricity origin
- Energy Model - End Of Life [C1-c4]
- Electricity origin
- Height Nominal
- 1200 mm
- Width Nominal
- 1300 mm
- Certificate Agency
- cCSAus
- Nbr. Of Units In Pkg.
- 1
- Warranty (In Months)
- 18
Carbon Footprint Of The End-of-life Phase [C1 To C4]428 kg CO2 eq., 428.11264074899594
Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 489 kg CO2 eq., 1489.3673535665528
Local Data StatusPublishable
Return IndicatorN
Device TypePower Factor Correction - LV capacitor bank
TraceabilityYes
Average Life Duration10 year(s)
Service Catalog ItemFinished good
Weee Product Category4
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Controller TypePowerLogic PFC Controller VPL12
Mounting Locationindoor
Operating Modeautomatic
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typecircuit breaker protection
Reactive Power Rating50 kvar
Series NamePowerLogic PFC Capacitor + Detuned Reactor
Step Composition2x12.5 + 25
Sustainable PackagingNo
Tuning Factor4.2
Pep CodeENVPEP2005002EN
Pep Verification Date2025-02-02
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1.33
Reference Lifetime In Y15
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Europe, EU-27
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %84
Height Useful1200 mm
Width Real1300 mm
[Thdu] Total Harmonic Distorsion0-7 %
Take-backNo
Customs Code9032894000
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Average Ambient Air Temperature For Operation
- 25 °C annual)35 °C over 24 hours)
- Environmental Disclosure
- ENVPEP2005002EN
- Nema Degree Of Protection
- NEMA 1
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-02-02
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Operation-10-46 °C, -10-46 °C
Take BackNo
Toxic Heavy Metal FreeYes
Carbon Footprint16076.202706699747
Circularity ProfileENVEOLI2005002_V3
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP2005002EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- capacitor bank
Range Of ProductPowerLogic
ETIM
- ETIM 8
- EC002758
ETIM 9EC002758
