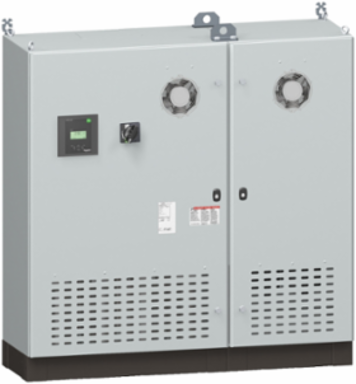

Schneider Electric VA100M40140 Automatic PowerLogic PFC Capacitor Bank 100 kvar, 480V 60Hz, 3P
Schneider Electric VA100M40140 Automatic PowerLogic PFC Capacitor Bank 100 kvar, 480V 60Hz, 3P
- MPN: VA100M40140
- PPN: SCH-VA100M40140
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Designed to enhance energy efficiency and improve power factor, this capacitor bank from Schneider Electric offers a robust solution for managing reactive power in industrial applications. With a rating of 100 kVAR and operating at 480V and 60Hz, the Automatic PowerLogic PFC Capacitor Bank is optimized for three-phase systems, ensuring reliable performance and minimal energy losses. Its advanced technology supports dynamic adjustments, making it a critical component for facilities looking to optimize their electrical systems and reduce operational costs.
Specifications
- Reactive Power Rating
- 100 kvar
- Operating Mode
- Automatic
- Tuning Frequency
- 252 Hz
- Power per Step
- 25 kvar
- Maximum Permissible Voltage
- 1.1 x Un 8 hours over 24 hours
- Height
- 1200 mm (47.24 in)
- Depth
- 400 mm (15.75 in)
- NEMA Degree of Protection
- NEMA 1
- Material
- Main lug protection type
- Standards
- CSA C22.2 No 190-M1985, UL 810, UL 508 A
- Operating Altitude
- <= 2000 m (6561.68 ft)
- Average Ambient Air Temperature for Operation
- 25 °C annual, 35 °C over 24 hours
- Mercury Free
- Yes
- Range Of Product
- PowerLogic
- Series Name
- PowerLogic PFC Capacitor + Detuned Reactor
- Colour
- Gray RAL 7035
- China Rohs Regulation
- Out of China RoHS scope
- Rohs Exemption Information
- Yes
Network Rated Voltage480 V AC 60 Hz
Poles Description3P
Tuning Factor4.2
Step Composition2x25 + 50
Rated Short-Time Withstand Current65 kA 4 cycles
Width1300 mm (51.18 in)
Mounting LocationIndoor
Net Weight265 kg (584.23 lb)
Product CertificationscCSAus
Relative Humidity0-95 %
Ambient Air Temperature for Operation-10 to 46 °C (14 to 115 °F)
Toxic Heavy Metal FreeYes
Accessibility For OperationFront
Controller TypePowerLogic PFC Controller VPL12
Device Short NamePowerLogic PFC detuned
Environmental DisclosureENVPEP2109003
Eu Rohs DirectiveCompliant
Circularity ProfileENVEOLI2109003
