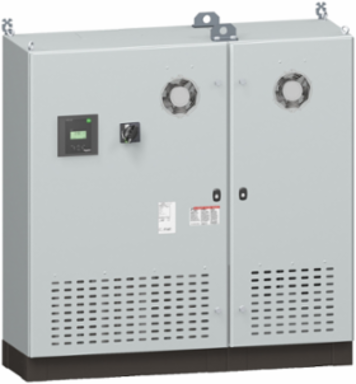

Schneider Electric VA075M40140 Automatic PFC Capacitor Bank 75 kvar 480V 60Hz NEMA 1

Automatic PFC Capacitor Bank 75 kvar 480V 60Hz NEMA 1
  • MPN: VA075M40140
  • PPN: SCH-VA075M40140

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

This automatic PFC capacitor bank from Schneider Electric is designed to enhance power factor correction in various electrical systems. With a capacity of 75 kvar and operating at 480V and 60Hz, it efficiently contributes to improved energy efficiency and reduces energy costs. The NEMA 1 enclosure ensures protection in environments where indoor installation is required, making it a reliable choice for a range of industrial applications. By stabilizing voltage and minimizing losses, this capacitor bank plays a pivotal role in optimizing the overall performance of electrical systems.

Specifications

Reactive Power Rating
75 kvar
Operating Mode
Automatic
Step Composition
25 + 50 kvar
Tuning Frequency
252 Hz
Maximum Permissible Voltage
1.1 x Un (8 hours over 24 hours)
Controller Type
PowerLogic PFC Controller VPL12
Mounting Location
Indoor
Height
1200 mm (47.24 in)
Net Weight
265 kg (584.23 lb)
NEMA Degree of Protection
NEMA 1
Standards
CSA C22.2 No 190-M1985, UL 810, UL 508 A
Operating Altitude
<= 2000 m (6561.68 ft)
Color
Gray RAL 7035
Accessibility For Operation
Front
Toxic Heavy Metal Free
Yes
Device Short Name
PowerLogic PFC detuned
Colour
Grey RAL 7035
Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP2109003
China RoHS Regulation
Out of China RoHS scope, substance declared
Network Rated Voltage480 V AC 60 Hz
Power Per Step25 kvar
Tuning Factor4.2
Rated Short-Time Withstand Current65 kA 4 cycles
Poles Description3P
Protection TypeMain lug
Width1300 mm (51.18 in)
Depth400 mm (15.75 in)
Material & ConstructionCapacitor bank, PowerLogic PFC Capacitor + Detuned Reactor series
Product CertificationscCSAus
Relative Humidity0-95 %
Ambient Air Temperature for Operation-10 to 46 °C (14 to 115 °F)
Circularity ProfileENVEOLI2109003
Eu RoHS DirectiveCompliant
Sustainable Offer StatusGreen Premium product
Average Ambient Air Temperature For Operation25 °C annual, 35 °C over 24 hours
Range Of ProductPowerLogic
Mercury FreeYes
Reach RegulationContains SVHC above threshold
