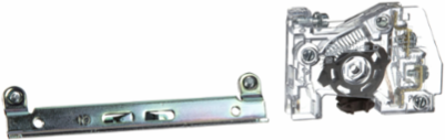

Square D 9999SX6 NEMA Motor Starter Type S, Auxiliary Contact, 1 NO, 3 Inch Width
- MPN: 9999SX6
- UPC: 785901733300
- PPN: SCH-9999SX6
CAD
$172.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This external convertible contact is mounted on the side of a contactor or starter. It is often used as part of the electrical control circuit. This auxiliary contact has one normally open contact. Auxiliary contact module has a NEMA A600 contact rating with a maximum voltage rating of 600VAC. Inductive break rating of 6.0 A at 120 VAC. Contact modules are UL component recognized and CSA certified.
Features
- Engineered for maximum industrial adaptability, this Type S accessory module fits seamlessly across the entire Square DTM family of Class 8502, 8536, and 8736 contactors and motor starters. It covers everything from NEMA Size 0 up to NEMA Size 7 devices, providing industrial electrical contractors with a standardized add-on component that handles small fractional systems and massive plant machinery alike.
- This auxiliary contactor mounts directly to the external left or right side of your parent Type S starter, consuming zero space on your panel s main mounting tracks. The straightforward side-attaching design lets panel builders and industrial technicians complete fast field upgrades or add telemetry points to existing starter enclosures in just minutes, significantly lowering custom installation labor costs.
- Built to survive heavy manufacturing power environments, this block boasts a robust NEMA A600 heavy-duty control circuit rating with a maximum capacity of 600V AC at 10A resistive. It easily manages inductive breaking current loads including 6.0A at 120V AC and 1.5A at 480V AC safeguarding your supervisory circuitry against contact pitting or sudden electrical degradation during high-power coil cycling.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Depth4.5 in
Complementary Attributes
- Rated Breaking Capacity
- 6 A 120 V AC inductive control circuit UL 5083 A 240 V AC inductive control circuit UL 5081.2 A 600 V AC inductive control circuit UL 5081.5 A 480 V AC inductive control circuit UL 508, 10 A <= 600 V AC resistive control circuit UL 508
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Destination
- contactor, starter
- [Ue] Rated Operational Voltage
- <= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz<= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz, <= 600 V AC 50/60 Hz
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2540
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Or Component Type
- Auxiliary Contact Module
- Returnability
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 3 in
- Package Weight(Lbs)
- 90.718 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Certificate AgencyCSA, UL Listed, UL Recognized
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Producttype S
Sustainable PackagingNo
Height Nominal1.5 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Nema Size0, 3, 6, 7, 4, 5, 1, 00, 2
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- Auxiliary Contact Module
Range Of Producttype S
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
