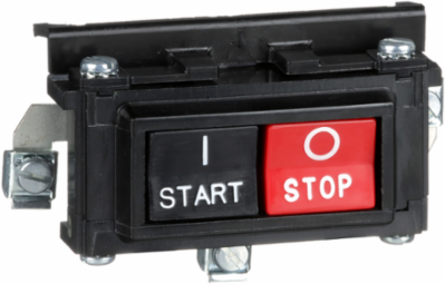

Square D 9999SA2 NEMA Motor Starter Push Button Kit, Type S, NEMA 1, 0.17 kg
- MPN: 9999SA2
- UPC: 785901867234
- PPN: SCH-9999SA2
CAD
$230.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Type S magnetic contactors and starters are for motor control applications and 8903S lighting contactors are for lighting control applications. This Start Stop push button kit is for NEMA size 00 through 3 Type S contactors and starters or 8903SM or 8903SP lighting contactors in NEMA 1 enclosure. The push button kit is mounted into the knockout in the enclosure cover. This push button kit is UL listed and CSA certified.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 609.6 mm |
|---|
Complementary Attributes
| Rated Breaking Capacity | 3 A 120 V AC inductive control circuit UL 5081.5 A 240 V AC inductive control circuit UL 5080.6 A 600 V AC inductive control circuit UL 5085 A 600 V AC resistive control circuit UL 508 |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Product Destination | contactor, starter |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Traceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Rohs Eur In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Mounting Mode | panel-mounted |
| Product Or Component Type | push-button |
| Returnability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Width Nominal | 65.5 mm |
| Package Weight(Lbs) | 172.365 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA, UL Listed, UL Recognized |
| Local Publishable Date | 2026-03-25 |
| Stocking Flag | N |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Marking | START-STOP |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | type S |
| Sustainable Packaging | No |
| Height Nominal | 25.8 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509033 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Eu Rohs Directive | Under investigation |
| Packaging Made With Recycled Cardboard | Yes |
| Nema Size | 1, 00, 2, 0, 3 |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | Yes |
General Attributes
| Product Or Component Type | push-button |
|---|
| Range Of Product | type S |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
